2009 Street Bike YBR250 - YBR250 (5D13) [010] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

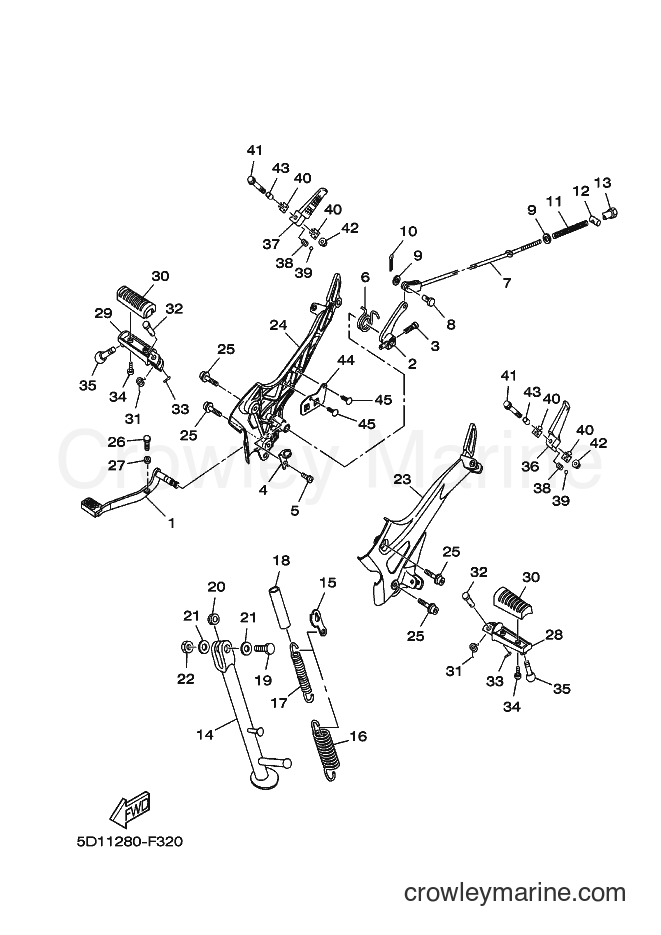

Yamaha Motors YBR250 (5D13) [010] - STAND & FOOTREST
Change View:
PEDAL, BRAKE
1
Yamaha Motors
PEDAL, BRAKE1S4-F7211-00
Required: 1
PEDAL, BRAKE
Price unavailable
LEVER
2
Yamaha Motors
LEVER1S4-F7262-00
Required: 1
LEVER
Price unavailable
-10%
Bolt (3JB)
3
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 1
BOLT
Supersedes: 9131M-06020-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.39
You save $0.27
More details
STAY, STOP SWITCH
4
Yamaha Motors
STAY, STOP SWITCH1S4-F144G-00
Required: 1
STAY, STOP SWITCH
Price unavailable
SCREW, PAN HEAD
5
Yamaha Motors
SCREW, PAN HEAD9851M-06008
Required: 1
SCREW, PAN HEAD
Price unavailable
SPRING, RETURN
6
Yamaha Motors
SPRING, RETURN1S4-F7216-00
Required: 1
SPRING, RETURN
Price unavailable
ROD, BRAKE
7
Yamaha Motors
ROD, BRAKE1S4-F7231-00
Required: 1
ROD, BRAKE
Price unavailable
PIN, COTTER
10
Yamaha Motors
PIN, COTTER91401-20012
Required: 1
PIN, COTTER
Price unavailable
-10%
Compression Spring
11
Yamaha Motors
Compression Spring90501-10245-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Special Shape Nut
13
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
STAND, SIDE
14
Yamaha Motors
STAND, SIDE1S4-F7311-00
Required: 1
STAND, SIDE
Price unavailable
LINK, SIDE STAND
15
Yamaha Motors
LINK, SIDE STAND1S4-F7315-00
Required: 1
LINK, SIDE STAND
Price unavailable
SPRING, TENSION
16
Yamaha Motors
SPRING, TENSION90506-26001
Required: 1
SPRING, TENSION
Price unavailable
SPRING, TENSION
17
Yamaha Motors
SPRING, TENSION90506-18168
Required: 1
SPRING, TENSION
Price unavailable
COVER, DUST
18
Yamaha Motors
COVER, DUST5D1-F7235-00
Required: 1
COVER, DUST
Price unavailable
BOLT
19
Yamaha Motors
BOLT90101-10812
Required: 1
BOLT
Price unavailable
-10%
COLLAR
20
Yamaha Motors
COLLAR90387-10003-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
-10%
Plain Washer
21
Yamaha Motors
Plain Washer90201-101J1-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Self-Locking Nut
22
Yamaha Motors
Self-Locking Nut90185-10060-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BRACKET 2
23
Yamaha Motors
BRACKET 21S4-F7442-00
Required: 1
BRACKET 2
Price unavailable
BRACKET 3
24
Yamaha Motors
BRACKET 35D1-F7443-00
Required: 1
BRACKET 3
Price unavailable
-10%
Hexagon Bolt
25
Yamaha Motors
Hexagon Bolt90110-08199-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BOLT
26
Yamaha Motors
BOLT9702M-05020
Required: 1
BOLT
Price unavailable
-10%
Hexagon Nut
27
Yamaha Motors
Hexagon Nut95317-05600-00
Required: 1
NUT
Supersedes: 9530M-05600-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.25
You save $0.25
More details
FOOTREST
28
Yamaha Motors
FOOTREST1S4-F7451-00
Required: 1
FOOTREST
Price unavailable
FOOTREST
29
Yamaha Motors
FOOTREST1S4-F7461-00
Required: 1
FOOTREST
Price unavailable
COVER, FOOTREST
30
Yamaha Motors
COVER, FOOTREST1S4-F7413-00
Required: 2
COVER, FOOTREST
Price unavailable
-10%
Torsion Spring
31
Yamaha Motors
Torsion Spring90508-20572-00
Required: 2
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
CLEVIS PIN (91701-08040-00)
32
Yamaha Motors
CLEVIS PIN (91701-08040-00)91702-08040-00
Required: 2
PIN
Supersedes: 91701-08040-00
Cross Ship
Leaves in 2-5 days
$4.85
$4.37
You save $0.49
More details
SCREW, PAN HEAD
34
Yamaha Motors
SCREW, PAN HEAD9851M-05014
Required: 4
SCREW, PAN HEAD
Price unavailable
-10%
BOLT
35
Yamaha Motors
BOLT90109-08177-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
FOOTREST, REAR 1
36
Yamaha Motors
FOOTREST, REAR 11S4-F7431-00
Required: 1
FOOTREST, REAR 1
Price unavailable
FOOTREST, REAR 2
37
Yamaha Motors
FOOTREST, REAR 21S4-F7441-00
Required: 1
FOOTREST, REAR 2
Price unavailable
-10%
Compression Spring
38
Yamaha Motors
Compression Spring90501-12743-00
Required: 2
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
WASHER, SPECIAL
40
Yamaha Motors
WASHER, SPECIAL1S4-F7437-00
Required: 4
WASHER, SPECIAL
Price unavailable
-10%
Flange Bolt
41
Yamaha Motors
Flange Bolt9502L-06045-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
-2%
U Flange Nut
42
Yamaha Motors
U Flange Nut95604-06200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.89
More details
-10%
COLLAR (24R)
43
Yamaha Motors
COLLAR (24R)90387-064H8-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET, CABLE
44
Yamaha Motors
BRACKET, CABLE5D1-F7251-00
Required: 1
BRACKET, CABLE
Price unavailable
-10%
SPECIAL SHAPE RIVET
45
Yamaha Motors
SPECIAL SHAPE RIVET90269-05055-00
Required: 2
RIVET
Supersedes: 90269-05039-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
