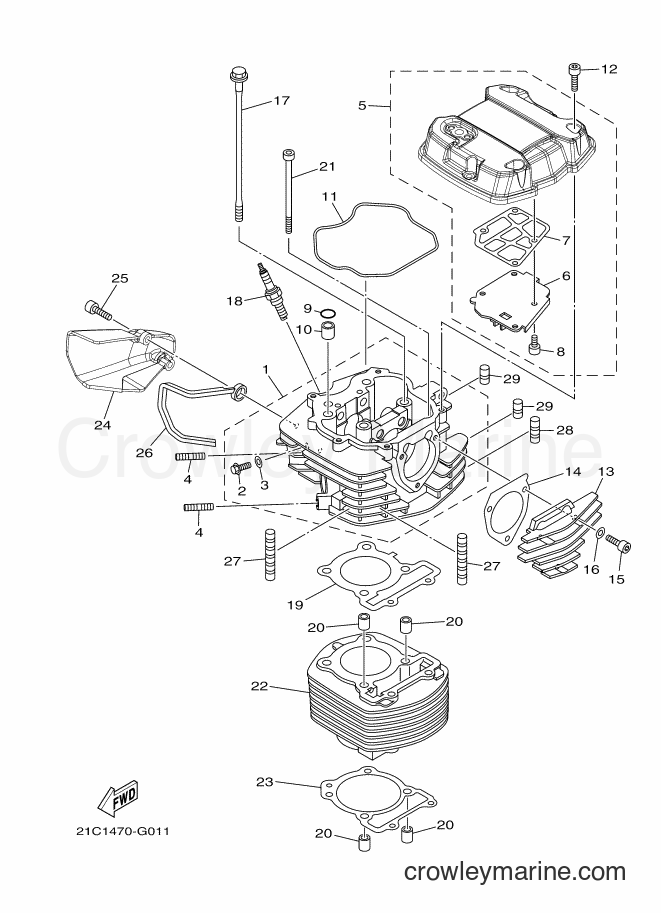

Yamaha Motors FZ16 (45P1) [010] - CYLINDER HEAD
Change View:
HEAD, CYLINDER 1
1
Yamaha Motors
HEAD, CYLINDER 121C-E1111-00
Required: 1
HEAD, CYLINDER 1
Price unavailable
-10%
Flange Bolt
2
Yamaha Motors
Flange Bolt95022-06012-00
Required: 1
. BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
-10%
Gasket
3
Yamaha Motors
Gasket90430-06014-00
Required: 1
. GASKET
Cross Ship
Leaves in 2-5 days
$8.99
$8.09
You save $0.90
More details
-10%
STUD BOLT 3
4
Yamaha Motors
STUD BOLT 395617-08620-00
Required: 2
BOLT, STUD
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
COVER, CYLINDER HEAD 1
5
Yamaha Motors
COVER, CYLINDER HEAD 145P-E1190-00
Required: 1
COVER, CYLINDER HEAD 1
Price unavailable
. PLATE, BREATHER
6
Yamaha Motors
. PLATE, BREATHER21C-E1165-00
Required: 1
. PLATE, BREATHER
Price unavailable
. GASKET, BREATHER COVER
7
Yamaha Motors
. GASKET, BREATHER COVER45P-E1169-00
Required: 1
. GASKET, BREATHER COVER
Price unavailable
-10%
Socket Bolt
8
Yamaha Motors
Socket Bolt91317-05010-00
Required: 4
. BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.48
You save $0.27
More details
O-RING
9
Yamaha Motors
O-RING93210-12800
Required: 1
O-RING
Price unavailable
-10%
Dowel Pin
10
Yamaha Motors
Dowel Pin93612-16254-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
GASKET, HEAD COVER 1
11
Yamaha Motors
GASKET, HEAD COVER 121C-E1193-00
Required: 1
GASKET, HEAD COVER 1
Price unavailable
COVER, CYLINDER HEAD SIDE 2
13
Yamaha Motors
COVER, CYLINDER HEAD SIDE 221C-E1186-00
Required: 1
COVER, CYLINDER HEAD SIDE 2
Price unavailable
GASKET
14
Yamaha Motors
GASKET45P-E2435-00
Required: 1
GASKET
Price unavailable
-10%
Gasket
16
Yamaha Motors
Gasket90430-06014-00
Required: 3
GASKET
Cross Ship
Leaves in 2-5 days
$8.99
$8.09
You save $0.90
More details
BOLT, FLANGE
17
Yamaha Motors
BOLT, FLANGE90105-08197
Required: 4
BOLT, FLANGE
Price unavailable
PLUG, SPARK (NGK CPR8EA9)
18
Yamaha Motors
PLUG, SPARK (NGK CPR8EA9)94700-00867
Required: 1
PLUG, SPARK (NGK CPR8EA9)
Price unavailable
GASKET, CYLINDER HEAD 1
19
Yamaha Motors
GASKET, CYLINDER HEAD 121C-E1181-00
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
PIN, DOWEL
20
Yamaha Motors
PIN, DOWEL91810-14804
Required: 4
PIN, DOWEL
Price unavailable
BOLT, HEXAGON SOCKET HEAD
21
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06304
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
CYLINDER
22
Yamaha Motors
CYLINDER21C-E1310-00
Required: 1
CYLINDER
Price unavailable
GASKET, CYLINDER
23
Yamaha Motors
GASKET, CYLINDER21C-E1351-00
Required: 1
GASKET, CYLINDER
Price unavailable
DUCT
24
Yamaha Motors
DUCT45P-E2661-00
Required: 1
DUCT
Price unavailable
DAMPER, DUCT 1
26
Yamaha Motors
DAMPER, DUCT 145P-E2684-00
Required: 1
DAMPER, DUCT 1
Price unavailable
ABSORBER 1
27
Yamaha Motors
ABSORBER 121C-E1161-00
Required: 2
ABSORBER 1
Price unavailable
ABSORBER 1
28
Yamaha Motors
ABSORBER 121C-E1161-10
Required: 1
ABSORBER 1
Price unavailable
ABSORBER 1
29
Yamaha Motors
ABSORBER 121C-E1161-20
Required: 2
ABSORBER 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
