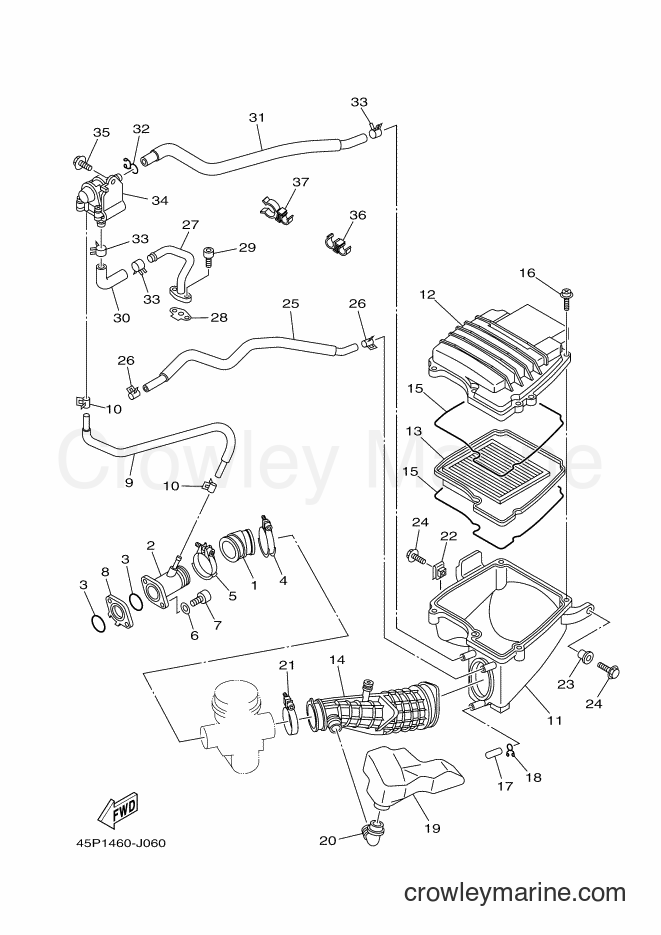

2010 Street Bike FZ16 - FZ16 (45P1) [010] INTAKE diagram
![Yamaha Motors FZ16 (45P1) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/QEp9VRbn.png)
1
Yamaha Motors
JOINT, CARBURETOR 121C-E3586-01
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Yamaha Motors
JT. , CARBURETOR21C-E3536-00
Required: 1
JT. , CARBURETOR
Price unavailable
-10%
$13.04
You save $1.45
4
Yamaha Motors
HOSE CLAMP ASSY90450-44803
Required: 1
HOSE CLAMP ASSY
Price unavailable
5
Yamaha Motors
HOSE CLAMP ASSY90450-44803
Required: 1
HOSE CLAMP ASSY
Price unavailable
-10%
6
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
$0.90
You save $0.10
-50%
In stock
Only 1 remaining
$1.33
You save $1.33
8
Yamaha Motors
JOINT21C-E3595-00
Required: 1
JOINT
Price unavailable
9
Yamaha Motors
HOSE, VACUUM SENSING 145P-E3542-00
Required: 1
HOSE, VACUUM SENSING 1
Price unavailable
10
Yamaha Motors
CLIP90467-08801
Required: 2
CLIP
Price unavailable
11
Yamaha Motors
CASE, AIR CLEANER 145P-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
12
Yamaha Motors
CAP, CLEANER CASE 145P-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
13
Yamaha Motors
ELEMENT ASSY, AIR CLEANER45P-E4450-00
Required: 1
ELEMENT ASSY, AIR CLEANER
Price unavailable
14
Yamaha Motors
JOINT, AIR CLEANER 145P-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
15
Yamaha Motors
SEAL21C-E4452-00
Required: 2
SEAL
Price unavailable
16
Yamaha Motors
PAN HEAD SCREW - W/WASHER97602-05320-00
Required: 5
SCREW, PAN HEAD WITH WASHER
No longer availableSearch Nationwide Inventory
$1.60
17
Yamaha Motors
PIPE, DRAIN5TL-E443E-00
Required: 1
PIPE, DRAIN
Price unavailable
18
Yamaha Motors
CLIP90467-12800
Required: 1
CLIP
Price unavailable
19
Yamaha Motors
RESONATOR45P-E4877-00
Required: 1
RESONATOR
Price unavailable
20
Yamaha Motors
PIPE, JOINT45P-E4485-00
Required: 1
PIPE, JOINT
Price unavailable
21
Yamaha Motors
HOSE CLAMP ASSY90450-50802
Required: 1
HOSE CLAMP ASSY
Price unavailable
-10%
22
Yamaha Motors
Spring Nut90183-06023-00
Required: 1
NUT, SPRING
Supersedes: 90183-06802-00
$9.44
You save $1.05
-10%
$9.44
You save $1.05
-15%
24
Yamaha Motors
Flange Bolt95817-06016-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-06016-00
In stock
Only 3 remaining
$1.66
You save $0.29
25
Yamaha Motors
PIPE, BREATHER 121C-E1166-00
Required: 1
PIPE, BREATHER 1
Price unavailable
-10%
26
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 2
CLIP
Supersedes: 90467-13064-00
$8.54
You save $0.95
27
Yamaha Motors
PIPE 221C-E4872-00
Required: 1
PIPE 2
Price unavailable
28
Yamaha Motors
GASKET21C-E4815-00
Required: 1
GASKET
Price unavailable
-10%
$1.17
You save $0.13
30
Yamaha Motors
HOSE, BEND 145P-E4881-00
Required: 1
HOSE, BEND 1
Price unavailable
31
Yamaha Motors
HOSE, BEND 245P-E4882-00
Required: 1
HOSE, BEND 2
Price unavailable
-10%
$8.54
You save $0.95
-10%
$2.79
You save $0.31
34
Yamaha Motors
AIR INDUCTION SYSTEM ASSY45P-E4803-10
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
-15%
35
Yamaha Motors
Flange Bolt95817-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95827-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
36
Yamaha Motors
CLAMP90464-11014
Required: 1
CLAMP
Price unavailable
37
Yamaha Motors
CLAMP90464-16016
Required: 1
CLAMP
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
