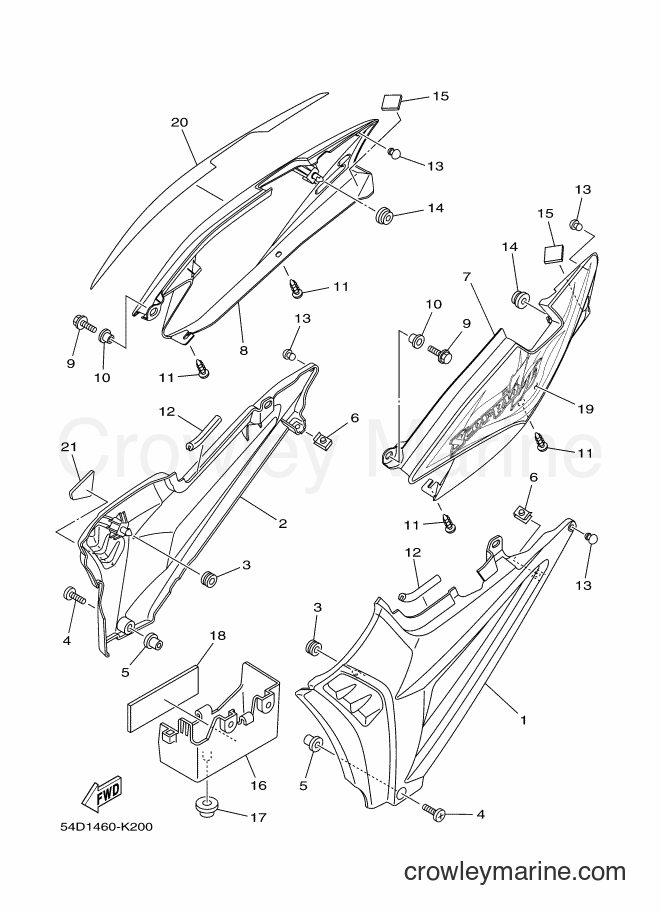

2010 Street Bike SX-4 - SX-4 (54D1) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors SX-4 (54D1) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 154D-F1711-00-1X
Required: 1
COVER, SIDE 1
Price unavailable
COVER, SIDE 2
2
Yamaha Motors
COVER, SIDE 254D-F1721-00-1X
Required: 1
COVER, SIDE 2
Price unavailable
GROMMET
3
Yamaha Motors
GROMMET90480-14808
Required: 2
GROMMET
Price unavailable
-10%
Binding Screw
4
Yamaha Motors
Binding Screw98907-06020-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
NUT
5
Yamaha Motors
NUT90179-06897
Required: 2
NUT
Price unavailable
COVER, SIDE 3
7
Yamaha Motors
COVER, SIDE 354D-F1731-00-1X
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
8
Yamaha Motors
COVER, SIDE 454D-F1741-00-1X
Required: 1
COVER, SIDE 4
Price unavailable
-10%
Flange Bolt
9
Yamaha Motors
Flange Bolt95807-06016-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.99
$0.89
You save $0.10
More details
COLLAR
10
Yamaha Motors
COLLAR90387-07826
Required: 2
COLLAR
Price unavailable
-10%
Truss Screw
11
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
MOLE, SIDE COVER 1
12
Yamaha Motors
MOLE, SIDE COVER 154D-F171L-00
Required: 2
MOLE, SIDE COVER 1
Price unavailable
DAMPER
13
Yamaha Motors
DAMPER45P-F1717-00
Required: 4
DAMPER
Price unavailable
GROMMET
14
Yamaha Motors
GROMMET90480-13867
Required: 2
GROMMET
Price unavailable
DAMPER, PLATE
15
Yamaha Motors
DAMPER, PLATE90520-02804
Required: 2
DAMPER, PLATE
Price unavailable
BOX, BATTERY
16
Yamaha Motors
BOX, BATTERY5BP-F177G-00
Required: 1
BOX, BATTERY
Price unavailable
-10%
GROMMET, WATER TUBE (UPPER)
17
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-22362-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
DAMPER, PLATE
18
Yamaha Motors
DAMPER, PLATE90520-02805
Required: 1
DAMPER, PLATE
Price unavailable
GRAPHIC, 1
19
Yamaha Motors
GRAPHIC, 154D-F173E-00
Required: 1
GRAPHIC, 1
Price unavailable
GRAPHIC, 2
20
Yamaha Motors
GRAPHIC, 254D-F173F-00
Required: 1
GRAPHIC, 2
Price unavailable
PROTECTOR
21
Yamaha Motors
PROTECTOR54D-F117G-00
Required: 1
PROTECTOR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
