2011 Street Bike FZ150 - FZ150 (3C15) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

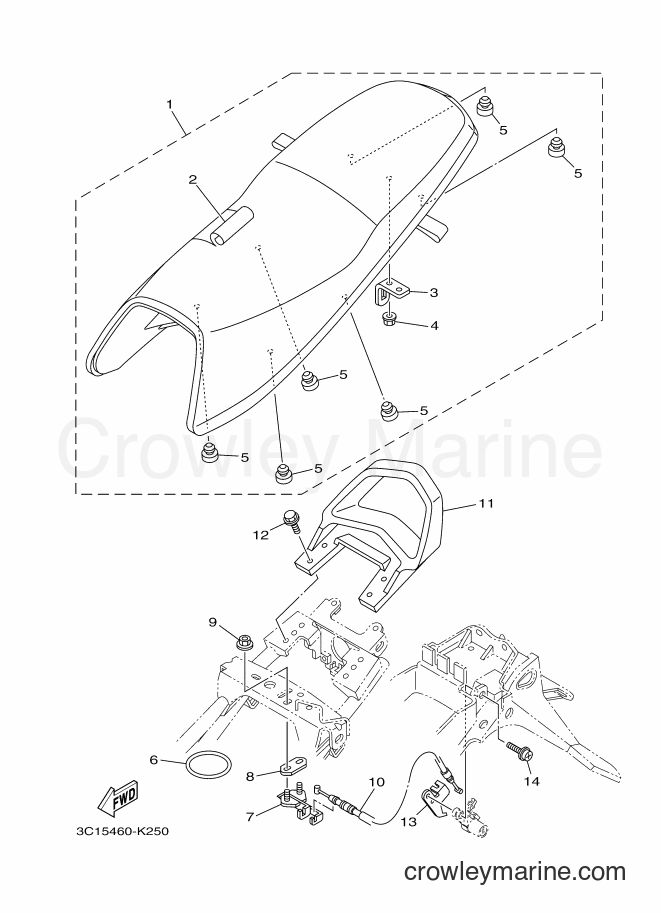

Yamaha Motors FZ150 (3C15) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY3C1-F4730-10
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. COVER, SEAT
2
Yamaha Motors
. COVER, SEAT3C1-F4731-00
Required: 1
. COVER, SEAT
Price unavailable
. BRACKET, SEAT
3
Yamaha Motors
. BRACKET, SEAT3C1-F4728-00
Required: 1
. BRACKET, SEAT
Price unavailable
-10%
Seat Pad (3C11)
5
Yamaha Motors
Seat Pad (3C11)3C1-F4741-00-00
Required: 6
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$2.35
$2.12
You save $0.23
More details
-10%
BATTERY BAND
6
Yamaha Motors
BATTERY BAND5VV-H2131-00-00
Required: 1
BAND, BATTERY
Supersedes: 5TL-H2131-00-00
Cross Ship
Leaves in 2-5 days
$2.90
$2.61
You save $0.29
More details
SEAT LOCK ASSY
7
Yamaha Motors
SEAT LOCK ASSY5BP-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
PLATE
8
Yamaha Motors
PLATE5BP-F4792-00
Required: 1
PLATE
Price unavailable
-10%
Flange Nut
9
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.90
You save $0.10
More details
CABLE, SEAT LOCK
10
Yamaha Motors
CABLE, SEAT LOCK3C1-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
HANDLE, SEAT
11
Yamaha Motors
HANDLE, SEAT3C1-F4773-00-7B
Required: 1
HANDLE, SEAT
Price unavailable
STAY, LOCK
13
Yamaha Motors
STAY, LOCK1S7-F117K-00
Required: 1
STAY, LOCK
Price unavailable
-10%
Screw with Washer
14
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
