2011 Street Bike YBR125ESD - YBR125ESD (3D9A) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

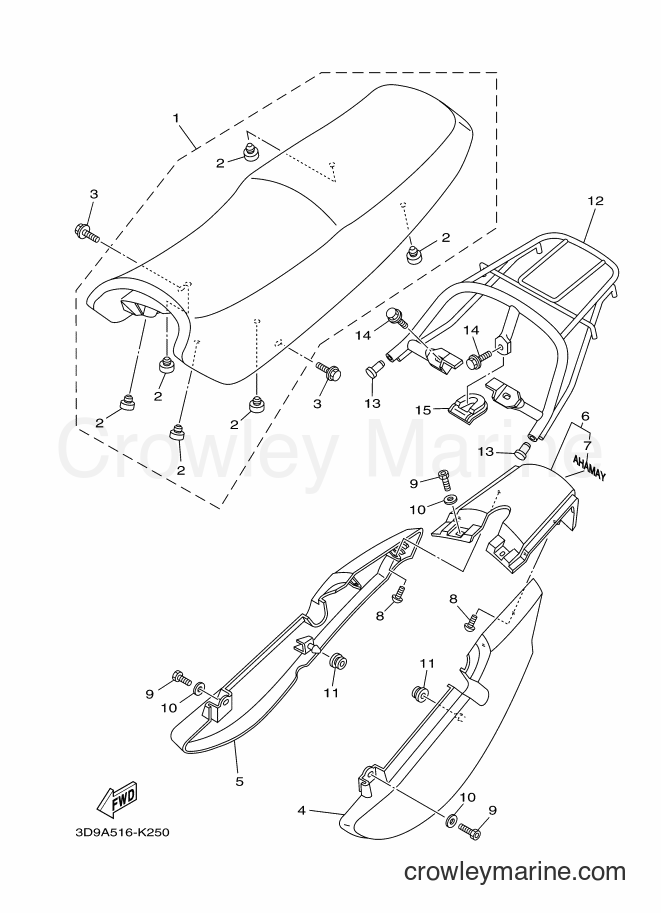

Yamaha Motors YBR125ESD (3D9A) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY5VL-F4730-12
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. PAD, SEAT
2
Yamaha Motors
. PAD, SEAT4TU-F4741-00
Required: 6
. PAD, SEAT
Price unavailable
BOLT, WITH WASHER
3
Yamaha Motors
BOLT, WITH WASHER90119-06869
Required: 2
BOLT, WITH WASHER
Price unavailable
COVER, TAIL 1
4
Yamaha Motors
COVER, TAIL 15VL-F471K-00-P1
Required: 1
COVER, TAIL 1
Price unavailable
COVER, TAIL 2
5
Yamaha Motors
COVER, TAIL 25VL-F472K-00-P1
Required: 1
COVER, TAIL 2
Price unavailable
TAIL COVER ASSY
6
Yamaha Motors
TAIL COVER ASSY5VL-W4756-01-P1
Required: 1
TAIL COVER ASSY
Price unavailable
-10%
Yamaha Emblem (4BP)
7
Yamaha Motors
Yamaha Emblem (4BP)99246-00080-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 99236-00080-00
Cross Ship
Leaves in 2-5 days
$22.99
$20.69
You save $2.30
More details
-10%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90201-06850
Required: 4
WASHER, PLATE
Price unavailable
-10%
Grommet
11
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
HANDLE, SEAT
12
Yamaha Motors
HANDLE, SEAT3D9-F4773-00
Required: 1
HANDLE, SEAT
Price unavailable
PLUG
13
Yamaha Motors
PLUG3D9-F4481-00
Required: 2
PLUG
Price unavailable
COVER
15
Yamaha Motors
COVER3D9-F4796-00
Required: 1
COVER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
