2011 Street Bike YBR125ESD - YBR125ESD (3D9A) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

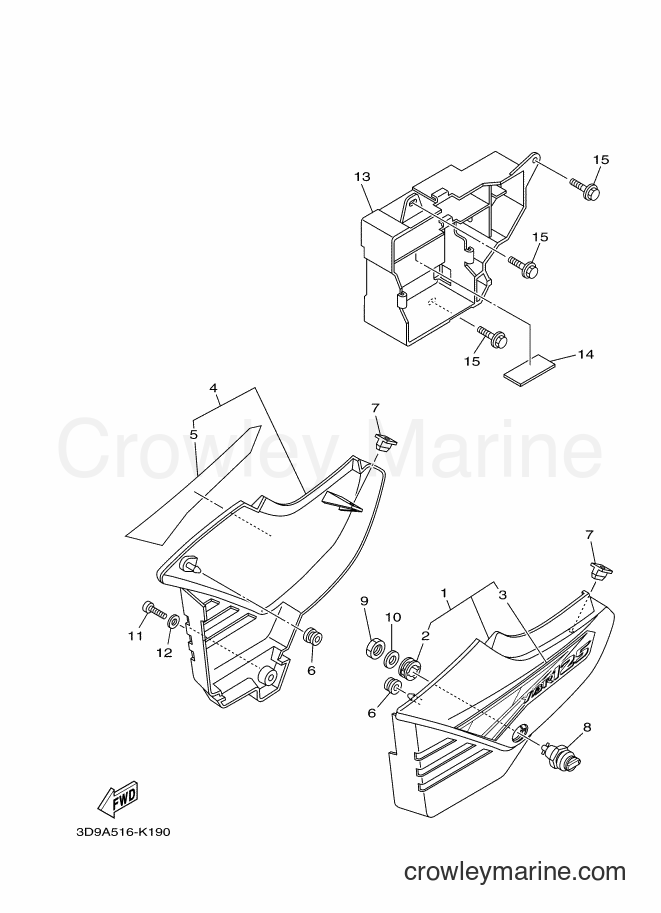

Yamaha Motors YBR125ESD (3D9A) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 15VL-Y2171-40-4X
Required: 1
COVER, SIDE 1
Price unavailable
-10%
Grommet
2
Yamaha Motors
Grommet90480-24186-00
Required: 1
. GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. GRAPHIC, 1
3
Yamaha Motors
. GRAPHIC, 13D9-F173E-10
Required: 1
. GRAPHIC, 1
Price unavailable
COVER, SIDE 2
4
Yamaha Motors
COVER, SIDE 23D9-Y2172-20-4X
Required: 1
COVER, SIDE 2
Price unavailable
. GRAPHIC, 2
5
Yamaha Motors
. GRAPHIC, 23D9-F173F-10
Required: 1
. GRAPHIC, 2
Price unavailable
GROMMET
6
Yamaha Motors
GROMMET90480-13837
Required: 2
GROMMET
Price unavailable
DAMPER, LOCATING 1
7
Yamaha Motors
DAMPER, LOCATING 15VL-F1778-00
Required: 2
DAMPER, LOCATING 1
Price unavailable
LOCK ASSY
8
Yamaha Motors
LOCK ASSY5VL-F1780-01
Required: 1
LOCK ASSY
Price unavailable
NUT
9
Yamaha Motors
NUT90170-22850
Required: 1
NUT
Price unavailable
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90201-228F6
Required: 1
WASHER, PLATE
Price unavailable
-10%
Bind Screw
11
Yamaha Motors
Bind Screw98980-06020-00
Required: 1
SCREW, BIND
Supersedes: 98902-06020-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
WASHER, PLATE
12
Yamaha Motors
WASHER, PLATE90201-06850
Required: 1
WASHER, PLATE
Price unavailable
BOX, BATTERY
13
Yamaha Motors
BOX, BATTERY5VL-F177G-00
Required: 1
BOX, BATTERY
Price unavailable
DAMPER
14
Yamaha Motors
DAMPER5VL-F1746-00
Required: 1
DAMPER
Price unavailable
BOLT, WITH WASHER
15
Yamaha Motors
BOLT, WITH WASHER90119-06811
Required: 3
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
