2011 Street Bike YBR250 - YBR250 (5D14) [010] STARTER CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

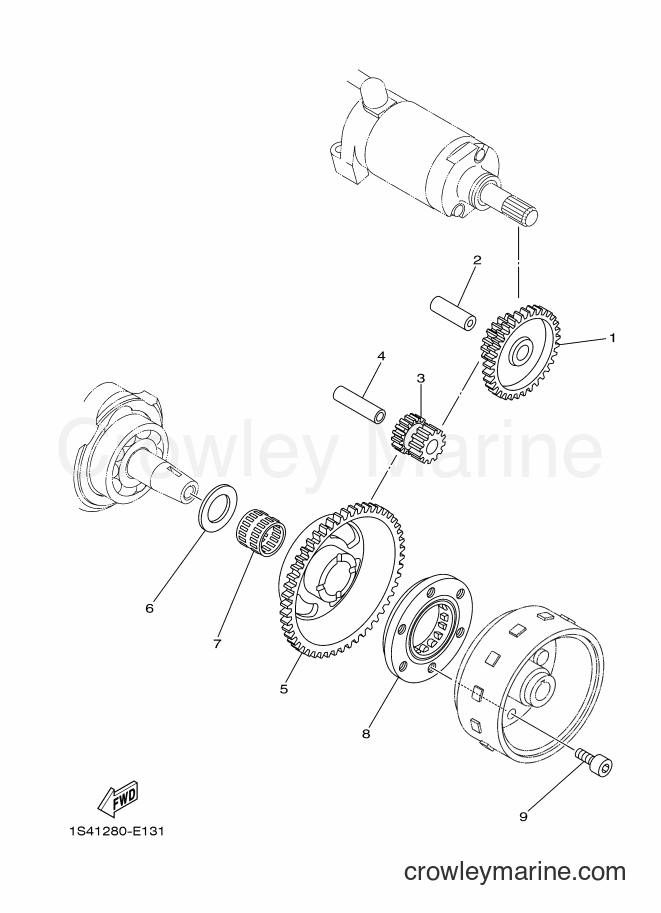

Yamaha Motors YBR250 (5D14) [010] - STARTER CLUTCH

Change View:

Yamaha Motors

GEAR, IDLER 112B-E5512-00

Required: 1

GEAR, IDLER 1

Price unavailable

Yamaha Motors

SHAFT 11S4-E5521-00

Required: 1

SHAFT 1

Price unavailable

Yamaha Motors

GEAR, IDLER 212B-E5517-00

Required: 1

GEAR, IDLER 2

Price unavailable

-10%

Yamaha Motors

Engine Stay1S4-E5522-00-00

Required: 1

SHAFT 2

~~$6.49~~

$5.84

You save $0.65

-10%

GEAR 3 (72T)

~~$181.99~~

$163.79

You save $18.20

More details

-10%

Yamaha Motors

Plate Washer90201-25291-00

Required: 1

WASHER, PLATE

~~$11.49~~

$10.34

You save $1.15

More details

-10%

Yamaha Motors

BEARING,CYL.#1093310-225N0-00

Required: 1

BEARING

~~$49.99~~

$44.99

You save $5.00

More details

-10%

Yamaha Motors

STARTER ONE-WAY ASSEMBLY5BP-15590-00-00

Required: 1

STARTER ONE-WAY ASSY

~~$275.99~~

$248.39

You save $27.60

-10%

BOLT, HEXAGON SOCKET HEAD

Supersedes: 90110-08053-00

~~$9.49~~

$8.54

You save $0.95

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
