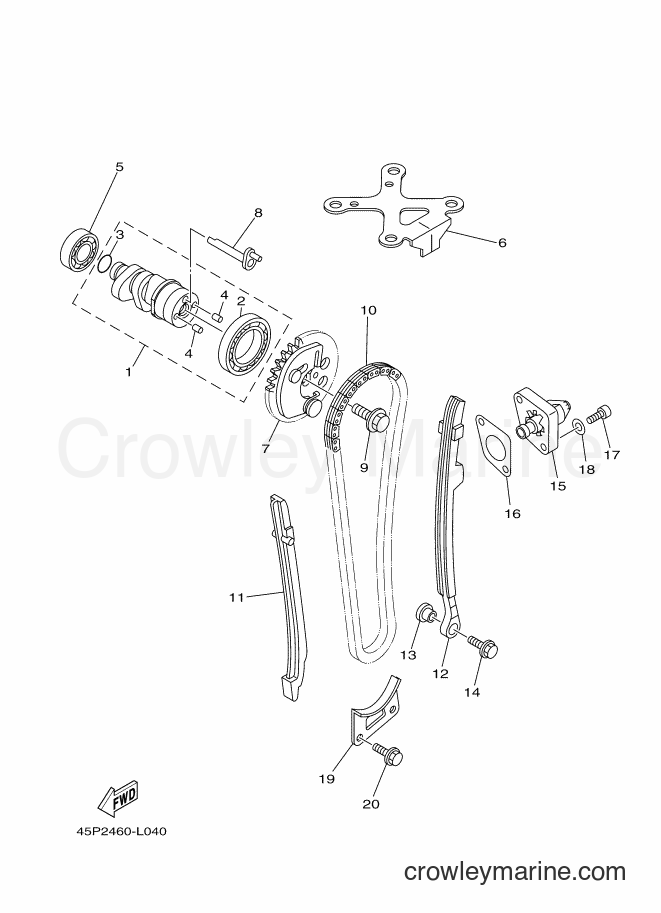

Yamaha Motors FZ16 (45P2) [010] - CAMSHAFT & CHAIN
Change View:
CAMSHAFT ASSY 1
1
Yamaha Motors
CAMSHAFT ASSY 145P-E2170-00
Required: 1
CAMSHAFT ASSY 1
Price unavailable
. BEARING
2
Yamaha Motors
. BEARING93306-906Y4
Required: 1
. BEARING
Price unavailable
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-108B1-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$1.50
$1.35
You save $0.15
More details
. PIN, DOWEL
4
Yamaha Motors
. PIN, DOWEL93605-06800
Required: 2
. PIN, DOWEL
Price unavailable
BEARING
5
Yamaha Motors
BEARING93306-002YR
Required: 1
BEARING
Price unavailable
PLATE
6
Yamaha Motors
PLATE45P-E111F-00
Required: 1
PLATE
Price unavailable
DECOMPRESSION ASSY
7
Yamaha Motors
DECOMPRESSION ASSY45P-E2280-10
Required: 1
DECOMPRESSION ASSY
Price unavailable
CAM, DECOMPRESSION
8
Yamaha Motors
CAM, DECOMPRESSION45P-E2288-00
Required: 1
CAM, DECOMPRESSION
Price unavailable
BOLT, FLANGE
9
Yamaha Motors
BOLT, FLANGE90105-08196
Required: 1
BOLT, FLANGE
Price unavailable
CHAIN
10
Yamaha Motors
CHAIN94591-72096
Required: 1
CHAIN
Price unavailable
GUIDE, STOPPER 1
11
Yamaha Motors
GUIDE, STOPPER 145P-E2231-00
Required: 1
GUIDE, STOPPER 1
Price unavailable
GUIDE, STOPPER 2
12
Yamaha Motors
GUIDE, STOPPER 245P-E2241-00
Required: 1
GUIDE, STOPPER 2
Price unavailable
COLLAR
13
Yamaha Motors
COLLAR45P-E5598-00
Required: 1
COLLAR
Price unavailable
TENSIONER ASSY, CAM CHAIN
15
Yamaha Motors
TENSIONER ASSY, CAM CHAIN45P-E2210-00
Required: 1
TENSIONER ASSY, CAM CHAIN
Price unavailable
GASKET, TENSIONER CASE
16
Yamaha Motors
GASKET, TENSIONER CASE5MX-E2213-01
Required: 1
GASKET, TENSIONER CASE
Price unavailable
-10%
BOLT
17
Yamaha Motors
BOLT91317-06018-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Plate Washer
18
Yamaha Motors
Plate Washer90201-06431-00
Required: 2
WASHER, PLATE (T=1.0)
Supersedes: 90201-06037-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
STOPPER
19
Yamaha Motors
STOPPER45P-E2437-00
Required: 1
STOPPER
Price unavailable
-10%
Washer Based Bolt
20
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
