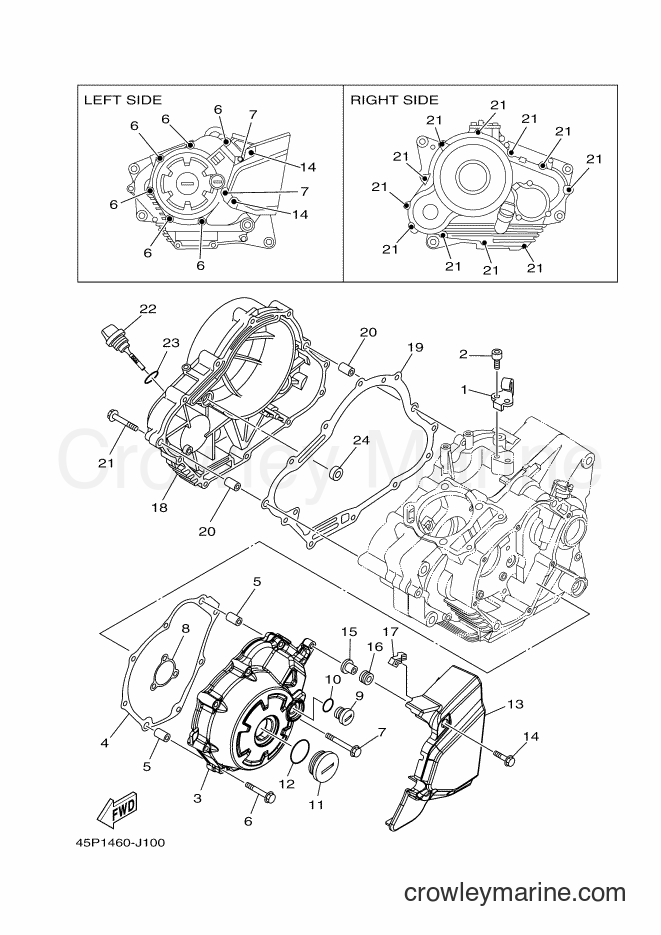

Yamaha Motors FZ16 (45P2) [010] - CRANKCASE COVER 1
Change View:
HOLDER, CLUTCH CABLE
1
Yamaha Motors
HOLDER, CLUTCH CABLE45P-E5441-00
Required: 1
HOLDER, CLUTCH CABLE
Price unavailable
-10%
BOLT
2
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
COVER, CRANKCASE 1
3
Yamaha Motors
COVER, CRANKCASE 145P-E5411-10
Required: 1
COVER, CRANKCASE 1
Price unavailable
GASKET, CRANKCASE COVER 1
4
Yamaha Motors
GASKET, CRANKCASE COVER 145P-E5451-10
Required: 1
GASKET, CRANKCASE COVER 1
Price unavailable
-10%
DOWEL PIN (5D21)
5
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
Small Flange Bolt
6
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
-10%
Small Flange Bolt
7
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.48
You save $0.27
More details
GASKET, DRAIN
8
Yamaha Motors
GASKET, DRAIN45P-E5353-10
Required: 1
GASKET, DRAIN
Price unavailable
PLUG, STRAIGHT SCREW
9
Yamaha Motors
PLUG, STRAIGHT SCREW90340-14826
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
-15%
O-Ring
10
Yamaha Motors
O-Ring93210-14369-00
Required: 1
O-RING
Supersedes: 93210-14899-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
PLUG, STRAIGHT SCREW
11
Yamaha Motors
PLUG, STRAIGHT SCREW90340-32827
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
COVER, CHAIN CASE
13
Yamaha Motors
COVER, CHAIN CASE45P-E5418-10
Required: 1
COVER, CHAIN CASE
Price unavailable
COLLAR
15
Yamaha Motors
COLLAR90387-068C9
Required: 2
COLLAR
Price unavailable
GROMMET
16
Yamaha Motors
GROMMET90480-12812
Required: 2
GROMMET
Price unavailable
DAMPER 1
17
Yamaha Motors
DAMPER 145P-E542A-01
Required: 1
DAMPER 1
Price unavailable
COVER, CRANKCASE 2
18
Yamaha Motors
COVER, CRANKCASE 245P-E5421-00
Required: 1
COVER, CRANKCASE 2
Price unavailable
GASKET, CRANKCASE COVER 2
19
Yamaha Motors
GASKET, CRANKCASE COVER 245P-E5461-10
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
-10%
DOWEL PIN (5D21)
20
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
Small Flange Bolt
21
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 11
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
PLUG, OIL LEVEL
22
Yamaha Motors
PLUG, OIL LEVEL45P-E5362-00
Required: 1
PLUG, OIL LEVEL
Price unavailable
-10%
Oil Seal (2FJ)
24
Yamaha Motors
Oil Seal (2FJ)93101-10142-00
Required: 1
OIL SEAL
Supersedes: 93101-10843-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
