2012 Street Bike YBR125ED - YBR125ED (51D2) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

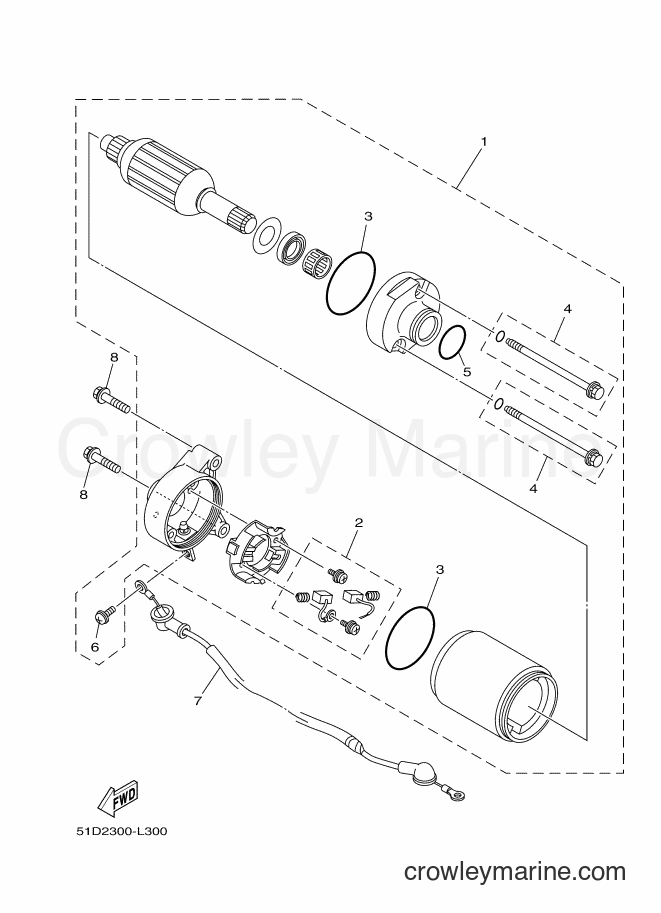

Yamaha Motors YBR125ED (51D2) [010] - STARTING MOTOR
Change View:
MOTOR ASSY
1
Yamaha Motors
MOTOR ASSY3D9-H1890-00
Required: 1
MOTOR ASSY
Price unavailable
-10%
Brush Set
2
Yamaha Motors
Brush Set7CP-H1801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$32.99
$29.69
You save $3.30
More details
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-55669-00
Required: 2
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
O-Ring
5
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING 1
Supersedes: 4FP-H182L-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
Bind Screw
6
Yamaha Motors
Bind Screw9890N-05008-00
Required: 1
. SCREW, BIND
Cross Ship
Leaves in 2-5 days
$0.26
More details
CORD COMP.
7
Yamaha Motors
CORD COMP.3D9-H183G-01
Required: 1
CORD COMP.
Price unavailable
-10%
Flange Bolt
8
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.71
You save $0.19
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
