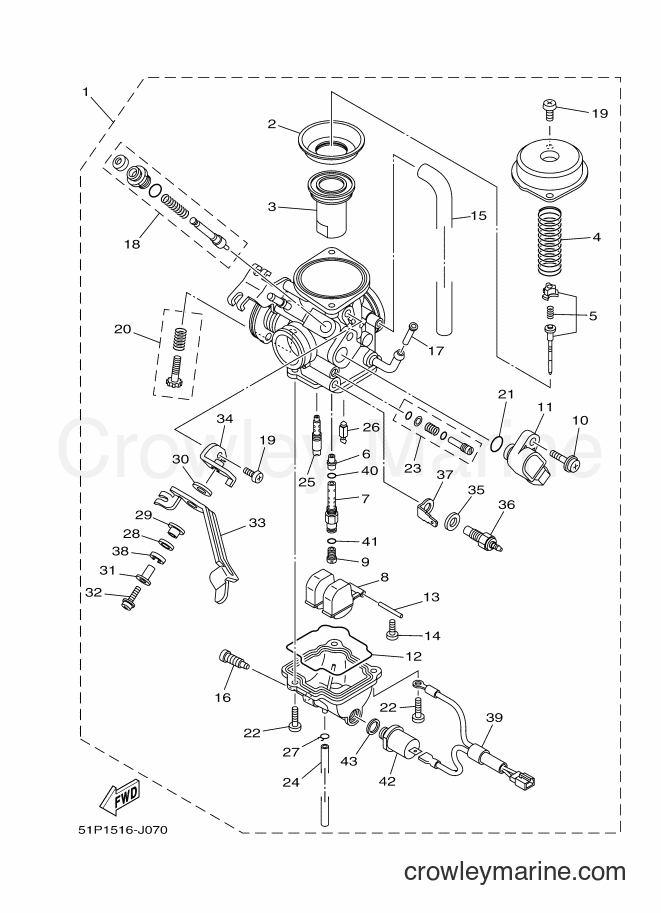

Yamaha Motors YBR125ESD (51P2) [010] - CARBURETOR
Change View:
CARBURETOR ASSY 1
1
Yamaha Motors
CARBURETOR ASSY 151P-E4901-00
Required: 1
CARBURETOR ASSY 1
Price unavailable
. DIAPHRAGM
2
Yamaha Motors
. DIAPHRAGM5LW-24411-00
Required: 1
. DIAPHRAGM
Price unavailable
. VALVE, THROTTLE 1
3
Yamaha Motors
. VALVE, THROTTLE 118D-14112-00
Required: 1
. VALVE, THROTTLE 1
Price unavailable
. SPRING
4
Yamaha Motors
. SPRING18D-14589-10
Required: 1
. SPRING
Price unavailable
. NEEDLE SET
5
Yamaha Motors
. NEEDLE SET18C-1490J-00
Required: 1
. NEEDLE SET
Price unavailable
. NOZZLE, MAIN
6
Yamaha Motors
. NOZZLE, MAIN5P0-14141-13
Required: 1
. NOZZLE, MAIN
Price unavailable
. HOLDER
7
Yamaha Motors
. HOLDER51P-14261-00
Required: 1
. HOLDER
Price unavailable
. FLOAT
8
Yamaha Motors
. FLOAT5HK-14985-00
Required: 1
. FLOAT
Price unavailable
. JET, MAIN (#108.8)
9
Yamaha Motors
. JET, MAIN (#108.8)3G2-1414E-43
Required: 1
. JET, MAIN (#108.8)
Price unavailable
. SCREW
10
Yamaha Motors
. SCREW5YP-14429-00
Required: 1
. SCREW
Price unavailable
. THROTTLE SENSOR ASSY
11
Yamaha Motors
. THROTTLE SENSOR ASSY18D-H5885-00
Required: 1
. THROTTLE SENSOR ASSY
Price unavailable
. O-RING
12
Yamaha Motors
. O-RING5HK-14147-00
Required: 1
. O-RING
Price unavailable
-10%
Float Pin
13
Yamaha Motors
Float Pin353-14186-00-00
Required: 1
. PIN, FLOAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-15%
Pan Head Screw
14
Yamaha Motors
Pan Head Screw98507-04008-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.14
$1.82
You save $0.32
More details
. PIPE
15
Yamaha Motors
. PIPE5YY-14197-00
Required: 1
. PIPE
Price unavailable
-10%
Drain Plug
16
Yamaha Motors
Drain Plug5LW-14191-00-00
Required: 1
. PLUG, DRAIN
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
Filter Net
17
Yamaha Motors
Filter Net5LW-14994-00-00
Required: 1
. NET, FILTER
Cross Ship
Leaves in 2-5 days
$16.49
$14.84
You save $1.65
More details
. STARTER SET
18
Yamaha Motors
. STARTER SET18D-1410A-00
Required: 1
. STARTER SET
Price unavailable
. THROTTLE SCREW SET
20
Yamaha Motors
. THROTTLE SCREW SET5YY-14103-00
Required: 1
. THROTTLE SCREW SET
Price unavailable
-10%
O-Ring
21
Yamaha Motors
O-Ring5YP-14561-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
Pan Head Screw N15
22
Yamaha Motors
Pan Head Screw N1598507-04014-00
Required: 3
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.00
$1.80
You save $0.20
More details
. PILOT SCREW SET
23
Yamaha Motors
. PILOT SCREW SET51P-14105-00
Required: 1
. PILOT SCREW SET
Price unavailable
. PIPE, OVER FLOW 1
24
Yamaha Motors
. PIPE, OVER FLOW 118D-14196-00
Required: 1
. PIPE, OVER FLOW 1
Price unavailable
. JET, PILOT (#17.5)
25
Yamaha Motors
. JET, PILOT (#17.5)5P0-14142-17
Required: 1
. JET, PILOT (#17.5)
Price unavailable
. NEEDLE ASSY
26
Yamaha Motors
. NEEDLE ASSY5TN-14150-00
Required: 1
. NEEDLE ASSY
Price unavailable
-10%
Pipe Clip
27
Yamaha Motors
Pipe Clip22F-14139-00-00
Required: 1
. CLIP, PIPE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
. WASHER
28
Yamaha Motors
. WASHER3SP-14128-00
Required: 1
. WASHER
Price unavailable
. RING
29
Yamaha Motors
. RING3SP-14194-00
Required: 1
. RING
Price unavailable
. GASKET
30
Yamaha Motors
. GASKET18D-14126-00
Required: 1
. GASKET
Price unavailable
. COLLAR
31
Yamaha Motors
. COLLAR18D-14264-00
Required: 1
. COLLAR
Price unavailable
. SCREW
32
Yamaha Motors
. SCREW3SP-14216-00
Required: 1
. SCREW
Price unavailable
. LEVER
33
Yamaha Motors
. LEVER18D-14276-00
Required: 1
. LEVER
Price unavailable
. BRACKET
34
Yamaha Motors
. BRACKET18D-14867-00
Required: 1
. BRACKET
Price unavailable
-10%
WASHER
35
Yamaha Motors
WASHER5CY-14951-00-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
Heater Assembly
36
Yamaha Motors
Heater Assembly5FU-83790-00-00
Required: 1
. HEATER ASSY (15W)
Cross Ship
Leaves in 2-5 days
$41.99
$37.79
You save $4.20
More details
-10%
Terminal
37
Yamaha Motors
Terminal5FU-82103-00-00
Required: 1
. TERMINAL 1
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
-10%
Spring Washer
38
Yamaha Motors
Spring Washer92907-08100-00
Required: 1
. WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
. WIRE, SUB LEAD
39
Yamaha Motors
. WIRE, SUB LEAD18D-81517-00
Required: 1
. WIRE, SUB LEAD
Price unavailable
-10%
O-Ring
40
Yamaha Motors
O-Ring583-14561-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$5.99
$5.39
You save $0.60
More details
. FUEL CUT SOLENOID VALVE
42
Yamaha Motors
. FUEL CUT SOLENOID VALVE5P0-1410H-00
Required: 1
. FUEL CUT SOLENOID VALVE
Price unavailable
-10%
Washer
43
Yamaha Motors
Washer256-14956-01-00
Required: 1
. WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
