2013 Street Bike AC150B - AC150B (45P3) [010] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

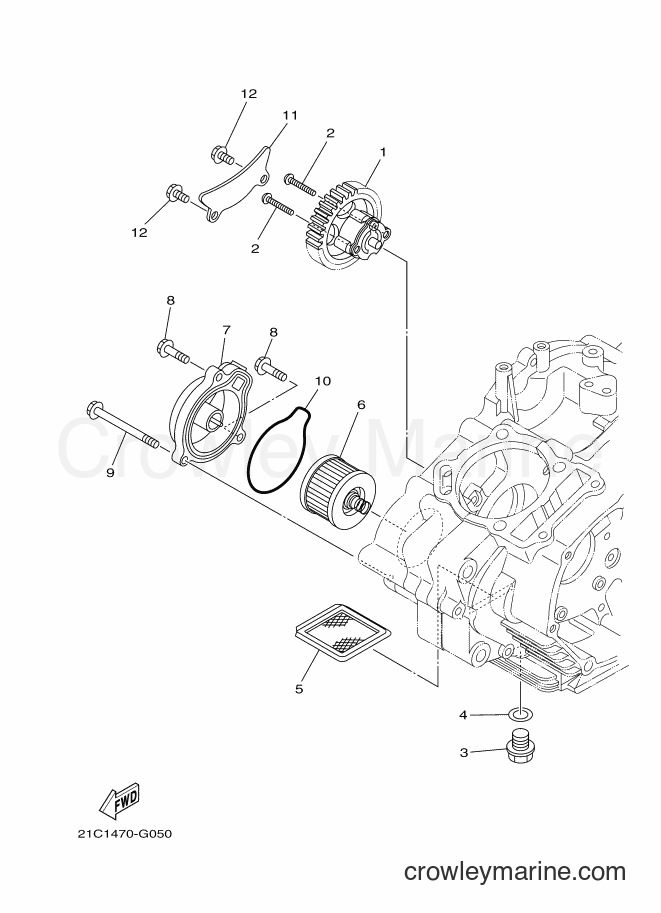

Yamaha Motors AC150B (45P3) [010] - OIL PUMP
Change View:
OIL PUMP ASSY
1
Yamaha Motors
OIL PUMP ASSY45P-E3300-00
Required: 1
OIL PUMP ASSY
Price unavailable
BOLT,HEX. SOCKET BUTTON
2
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-05808
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
STRAINER, OIL
5
Yamaha Motors
STRAINER, OIL45P-E3411-00
Required: 1
STRAINER, OIL
Price unavailable
ELEMENT ASSY, OIL CLEANER
6
Yamaha Motors
ELEMENT ASSY, OIL CLEANER21C-E3440-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Price unavailable
COVER, OIL ELEMENT
7
Yamaha Motors
COVER, OIL ELEMENT45P-E3447-00
Required: 1
COVER, OIL ELEMENT
Price unavailable
-10%
Small Bolt Flange
9
Yamaha Motors
Small Bolt Flange95027-06065-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
GASKET, ELEMENT COVER
10
Yamaha Motors
GASKET, ELEMENT COVER45P-E3449-00
Required: 1
GASKET, ELEMENT COVER
Price unavailable
COVER, PUMP GEAR
11
Yamaha Motors
COVER, PUMP GEAR45P-E3327-00
Required: 1
COVER, PUMP GEAR
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95022-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
