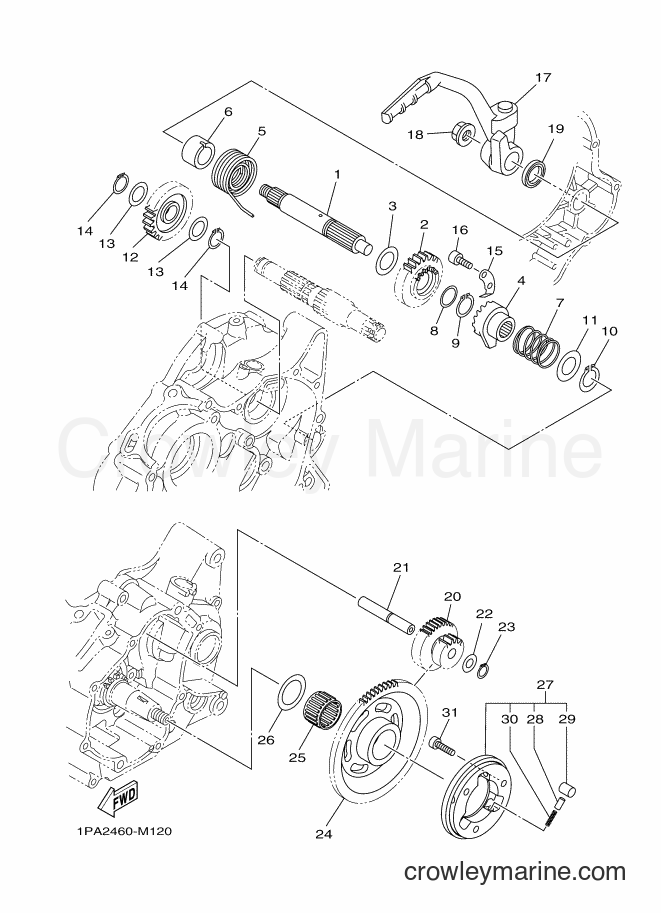

2013 Street Bike FZ150 - FZ150 (1PA2) [010] STARTER CLUTCH diagram
![Yamaha Motors FZ150 (1PA2) [010] - STARTER CLUTCH](https://cdn.crowleymarine.com/yamaha/j4AeCkRf.png)
1
Yamaha Motors
AXLE, KICK3C1-E5661-00
Required: 1
AXLE, KICK
Price unavailable
2
Yamaha Motors
GEAR, KICK3C1-E5641-00
Required: 1
GEAR, KICK
Price unavailable
3
Yamaha Motors
WASHER, PLATE90201-20815
Required: 1
WASHER, PLATE
Price unavailable
4
Yamaha Motors
WHEEL, RATCHET3C1-E5671-00
Required: 1
WHEEL, RATCHET
Price unavailable
5
Yamaha Motors
SPRING, TORSION90508-26803
Required: 1
SPRING, TORSION
Price unavailable
6
Yamaha Motors
SPACER3C1-E5666-00
Required: 1
SPACER
Price unavailable
7
Yamaha Motors
SPRING3C1-E5767-00
Required: 1
SPRING
Price unavailable
-10%
8
Yamaha Motors
Plate Washer90201-20685-00
Required: 1
WASHER, PLATE (T=0.5)
$7.64
You save $0.85
-10%
$3.65
You save $0.40
-10%
$8.54
You save $0.95
11
Yamaha Motors
WASHER, PLATE90201-19800
Required: 1
WASHER, PLATE
Price unavailable
12
Yamaha Motors
GEAR, KICK IDLE3C1-E5651-00
Required: 1
GEAR, KICK IDLE
Price unavailable
-10%
13
Yamaha Motors
Plate Washer90201-175F6-00
Required: 2
WASHER, PLATE
$10.34
You save $1.15
-10%
$4.94
You save $0.55
15
Yamaha Motors
GUIDE, RATCHET WHEEL3C1-E5674-00
Required: 1
GUIDE, RATCHET WHEEL
Price unavailable
-50%
In stock
Only 2 remaining
$3.25
You save $3.25
17
Yamaha Motors
KICK CRANK ASSY3C1-E5620-10
Required: 1
KICK CRANK ASSY
Price unavailable
18
Yamaha Motors
NUT90179-12802
Required: 1
NUT
Price unavailable
19
Yamaha Motors
OIL SEAL93109-20800
Required: 1
OIL SEAL
Price unavailable
20
Yamaha Motors
GEAR 21PA-E5514-00
Required: 1
GEAR 2
Price unavailable
21
Yamaha Motors
SHAFT 13C1-E5521-00
Required: 1
SHAFT 1
Price unavailable
-10%
22
Yamaha Motors
Plate Washer90201-08759-00
Required: 1
WASHER, PLATE
Supersedes: 90201-105E8-00
$3.15
You save $0.35
-10%
$4.94
You save $0.55
24
Yamaha Motors
WHEEL, STARTER1PA-E5524-00
Required: 1
WHEEL, STARTER
Price unavailable
25
Yamaha Motors
BEARING93310-325X1
Required: 1
BEARING
Price unavailable
-10%
26
Yamaha Motors
90201-256K6-004A0-17216-00-10
Required: 1
WASHER, PLATE
Supersedes: 90201-25290-00
No longer availableSearch Nationwide Inventory
$5.39
You save $0.60
27
Yamaha Motors
STARTER CLUTCH OUTER ASSY5YP-E5580-00
Required: 1
STARTER CLUTCH OUTER ASSY
Price unavailable
-10%
28
Yamaha Motors
Starter Clutch Spring Cap3AY-15583-00-00
Required: 3
. CAP, STARTER CLUTCH SPRING
Supersedes: 5HV-E5583-00-00
$2.61
You save $0.29
29
Yamaha Motors
. PIN, DOWEL5YP-E5614-00
Required: 3
. PIN, DOWEL
Price unavailable
30
Yamaha Motors
. SPRING, COMPRESSION90501-030A0
Required: 3
. SPRING, COMPRESSION
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
