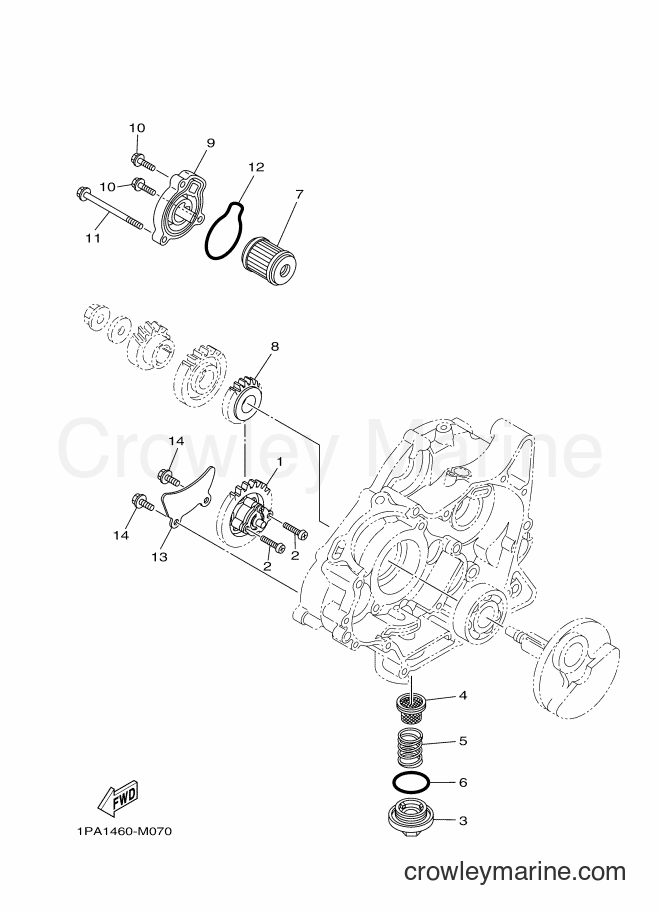

2014 Street Bike FZ150 - FZ150 (2SD2) [010] OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FZ150 (2SD2) [010] - OIL PUMP
Change View:
OIL PUMP ASSY
1
Yamaha Motors
OIL PUMP ASSY1PA-E3300-00
Required: 1
OIL PUMP ASSY
Price unavailable
PLUG, DRAIN
3
Yamaha Motors
PLUG, DRAIN1S7-E5351-00
Required: 1
PLUG, DRAIN
Price unavailable
STRAINER, OIL
4
Yamaha Motors
STRAINER, OIL1S7-E3411-00
Required: 1
STRAINER, OIL
Price unavailable
O-RING
6
Yamaha Motors
O-RING93210-34802
Required: 1
O-RING
Price unavailable
-10%
Oil Element Assembly Cl
7
Yamaha Motors
Oil Element Assembly Cl1S7-E3440-00-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
GEAR, PUMP DRIVE
8
Yamaha Motors
GEAR, PUMP DRIVE1PA-E3324-00
Required: 1
GEAR, PUMP DRIVE
Price unavailable
COVER, OIL ELEMENT
9
Yamaha Motors
COVER, OIL ELEMENT3C1-E3447-00
Required: 1
COVER, OIL ELEMENT
Price unavailable
-10%
Flange Bolt
10
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
-10%
Flange Bolt
11
Yamaha Motors
Flange Bolt95022-06080-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.60
$4.14
You save $0.46
More details
O-RING
12
Yamaha Motors
O-RING93210-54805
Required: 1
O-RING
Price unavailable
COVER, PUMP GEAR
13
Yamaha Motors
COVER, PUMP GEAR3C1-E3327-00
Required: 1
COVER, PUMP GEAR
Price unavailable
-10%
Flange Bolt
14
Yamaha Motors
Flange Bolt95022-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
