2014 Street Bike SX-4 - SX-4 (54D5) [010] CRANKCASE COVER 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

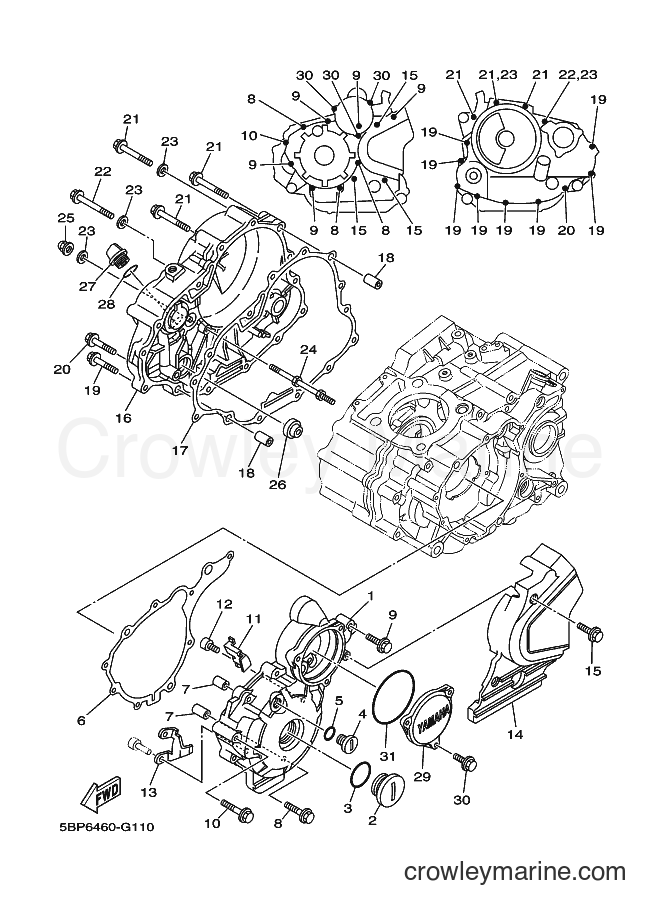

Yamaha Motors SX-4 (54D5) [010] - CRANKCASE COVER 1
Change View:
COVER, CRANKCASE 1
1
Yamaha Motors
COVER, CRANKCASE 15BP-E5411-10
Required: 1
COVER, CRANKCASE 1
Price unavailable
PLUG, STRAIGHT SCREW
2
Yamaha Motors
PLUG, STRAIGHT SCREW90340-32829
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
PLUG, STRAIGHT SCREW
4
Yamaha Motors
PLUG, STRAIGHT SCREW90340-14828
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
-15%
O-Ring
5
Yamaha Motors
O-Ring93210-14369-00
Required: 1
O-RING
Supersedes: 93210-148F8-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
GASKET, CRANKCASE COVER 1
6
Yamaha Motors
GASKET, CRANKCASE COVER 15BP-E5451-10
Required: 1
GASKET, CRANKCASE COVER 1
Price unavailable
-10%
DOWEL PIN (5D21)
7
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
Small Flange Bolt
8
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
-10%
Small Flange Bolt
9
Yamaha Motors
Small Flange Bolt95027-06030-00
Required: 5
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.30
$3.87
You save $0.43
More details
-10%
Small Bolt Flange
10
Yamaha Motors
Small Bolt Flange95027-06045-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
CLAMP
11
Yamaha Motors
CLAMP90465-16832
Required: 1
CLAMP
Price unavailable
-10%
BOLT
12
Yamaha Motors
BOLT91317-05012-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$2.48
You save $0.27
More details
PLATE
13
Yamaha Motors
PLATE4ST-E5113-00
Required: 1
PLATE
Price unavailable
COVER, CHAIN CASE
14
Yamaha Motors
COVER, CHAIN CASE5BP-E5418-10
Required: 1
COVER, CHAIN CASE
Price unavailable
-10%
Washer Based Bolt
15
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 3
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
COVER, CRANKCASE 2
16
Yamaha Motors
COVER, CRANKCASE 25BP-E5421-20
Required: 1
COVER, CRANKCASE 2
Price unavailable
GASKET, CRANKCASE COVER 2
17
Yamaha Motors
GASKET, CRANKCASE COVER 25BP-E5461-10
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
-10%
DOWEL PIN (5D21)
18
Yamaha Motors
DOWEL PIN (5D21)91810-14809-00
Required: 2
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
Small Bolt Flange
20
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.16
You save $0.24
More details
-10%
Small Flange Bolt
21
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.48
You save $0.27
More details
-10%
Small Flange Bolt
22
Yamaha Motors
Small Flange Bolt95027-06055-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.55
$2.30
You save $0.25
More details
-10%
Gasket
23
Yamaha Motors
Gasket90430-06014-00
Required: 3
GASKET
Cross Ship
Leaves in 2-5 days
$8.99
$8.09
You save $0.90
More details
BOLT 1
24
Yamaha Motors
BOLT 15BP-E5481-00
Required: 1
BOLT 1
Price unavailable
-10%
Crown Nut
25
Yamaha Motors
Crown Nut90176-06065-00
Required: 1
NUT, CROWN
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
-10%
Level Gauge
26
Yamaha Motors
Level Gauge3Y1-15361-00-00
Required: 1
GAUGE, LEVEL
Cross Ship
Leaves in 2-5 days
$33.99
$30.59
You save $3.40
More details
-10%
Oil Plug
27
Yamaha Motors
Oil Plug5BP-E5363-10-00
Required: 1
PLUG, OIL
Cross Ship
Leaves in 2-5 days
$2.90
$2.61
You save $0.29
More details
COVER, GENERATOR
29
Yamaha Motors
COVER, GENERATOR5BP-E5415-10
Required: 1
COVER, GENERATOR
Price unavailable
-10%
Washer Based Bolt
30
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 3
BOLT, FLANGE
Supersedes: 95027-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$9.44
You save $1.05
More details
