2014 Street Bike YBR125ED - YBR125ED (51D3) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

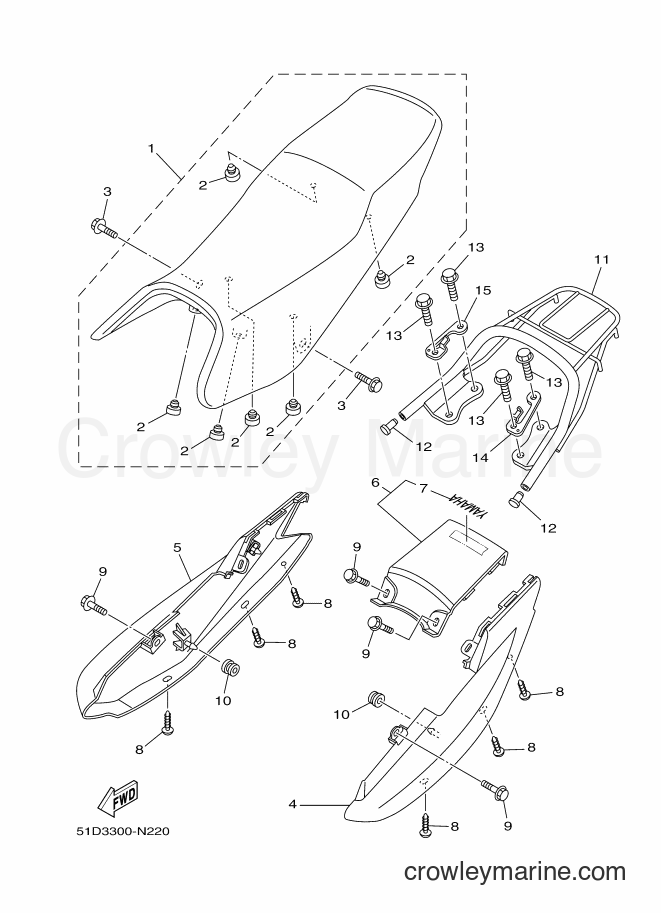

Yamaha Motors YBR125ED (51D3) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY18C-F4730-01
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. PAD, SEAT
2
Yamaha Motors
. PAD, SEAT4TU-F4741-00
Required: 6
. PAD, SEAT
Price unavailable
BOLT, WITH WASHER
3
Yamaha Motors
BOLT, WITH WASHER90119-06869
Required: 2
BOLT, WITH WASHER
Price unavailable
COVER, TAIL 1
4
Yamaha Motors
COVER, TAIL 118C-F471K-00-P4
Required: 1
COVER, TAIL 1
Price unavailable
COVER, TAIL 2
5
Yamaha Motors
COVER, TAIL 218C-F472K-00-P4
Required: 1
COVER, TAIL 2
Price unavailable
COVER, TAIL ASSY
6
Yamaha Motors
COVER, TAIL ASSY18C-Y2475-01-P4
Required: 1
COVER, TAIL ASSY
Price unavailable
-10%
YAMAHA EMBLEM
7
Yamaha Motors
YAMAHA EMBLEM99247-00080-00
Required: 1
. EMBLEM, YAMAHA
Supersedes: 99237-00080-00
Cross Ship
Leaves in 2-5 days
$17.49
$15.74
You save $1.75
More details
-10%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
BOLT, WITH WASHER
9
Yamaha Motors
BOLT, WITH WASHER90119-06869
Required: 4
BOLT, WITH WASHER
Price unavailable
-10%
Grommet
10
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
HANDLE, SEAT
11
Yamaha Motors
HANDLE, SEAT51P-F4773-00
Required: 1
HANDLE, SEAT
Price unavailable
-10%
Plug
12
Yamaha Motors
Plug90338-16148-00
Required: 2
PLUG
Cross Ship
Leaves in 2-5 days
$12.49
$11.24
You save $1.25
More details
-10%
Flange Bolt
13
Yamaha Motors
Flange Bolt95812-08020-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
STAY 3
14
Yamaha Motors
STAY 318C-F474K-01
Required: 1
STAY 3
Price unavailable
STAY 4
15
Yamaha Motors
STAY 418C-F474L-01
Required: 1
STAY 4
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
