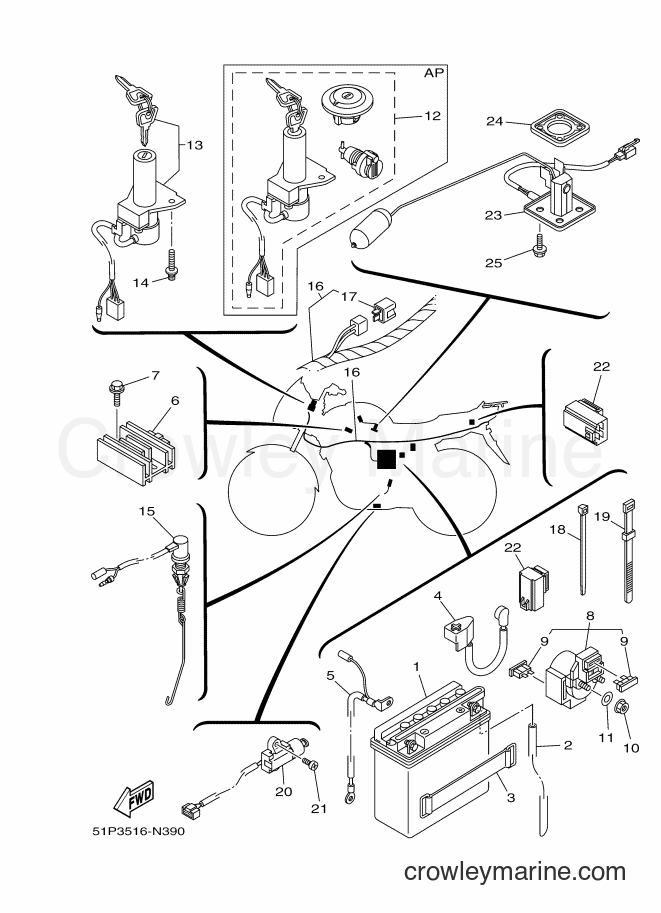

2014 Street Bike YBR125ESD - YBR125ESD (51P3) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YBR125ESD (51P3) [010] - ELECTRICAL 1
Change View:
BATTERY ASSY (GS CB5L-B)
1
Yamaha Motors
BATTERY ASSY (GS CB5L-B)3D9-H2110-00
Required: 1
BATTERY ASSY (GS CB5L-B)
Price unavailable
HOSE
2
Yamaha Motors
HOSE90445-08830
Required: 1
HOSE
Price unavailable
BAND, BATTERY
3
Yamaha Motors
BAND, BATTERY5VL-H2131-00
Required: 1
BAND, BATTERY
Price unavailable
WIRE, PLUS LEAD
4
Yamaha Motors
WIRE, PLUS LEAD5VL-H2115-00
Required: 1
WIRE, PLUS LEAD
Price unavailable
WIRE, MINUS LEAD
5
Yamaha Motors
WIRE, MINUS LEAD3D9-H2116-01
Required: 1
WIRE, MINUS LEAD
Price unavailable
RECTIFIER & REGULATOR ASSY
6
Yamaha Motors
RECTIFIER & REGULATOR ASSY2D0-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
STARTER RELAY ASSY
8
Yamaha Motors
STARTER RELAY ASSY5VL-H1940-00
Required: 1
STARTER RELAY ASSY
Price unavailable
. FUSE (15A)
9
Yamaha Motors
. FUSE (15A)4FP-H2151-00
Required: 2
. FUSE (15A)
Price unavailable
WASHER, PLATE
11
Yamaha Motors
WASHER, PLATE90201-068C2
Required: 2
WASHER, PLATE
Price unavailable
SWITCH ASSY
12
Yamaha Motors
SWITCH ASSY3D9-Y8250-16
Required: 1
SWITCH ASSY
Price unavailable
MAIN SWITCH STEERING LOCK
13
Yamaha Motors
MAIN SWITCH STEERING LOCK3D9-H2501-30
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
-10%
Bolt (4FM)
14
Yamaha Motors
Bolt (4FM)90109-06282-00
Required: 2
BOLT
Supersedes: 90109-060G4-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
STOP SWITCH ASSY
15
Yamaha Motors
STOP SWITCH ASSY3D9-82530-00
Required: 1
STOP SWITCH ASSY
Price unavailable
WIRE HARNESS ASSY
16
Yamaha Motors
WIRE HARNESS ASSY51P-H2590-00
Required: 1
WIRE HARNESS ASSY
Price unavailable
. DIODE ASSY
17
Yamaha Motors
. DIODE ASSY5VL-H1980-00
Required: 3
. DIODE ASSY
Price unavailable
-10%
Clamp
18
Yamaha Motors
Clamp90464-35820-00
Required: 3
CLAMP
Cross Ship
Leaves in 2-5 days
$1.25
$1.13
You save $0.13
More details
BAND, SWITCH CORD
19
Yamaha Motors
BAND, SWITCH CORD5VL-H3936-00
Required: 1
BAND, SWITCH CORD
Price unavailable
RELAY ASSY (3D9-00)
22
Yamaha Motors
RELAY ASSY (3D9-00)3D9-81950-00
Required: 2
RELAY ASSY (3D9-00)
Price unavailable
SENDER UNIT ASSY, FUEL METER
23
Yamaha Motors
SENDER UNIT ASSY, FUEL METER18C-H5752-01
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
GASKET, SENDER UNIT
24
Yamaha Motors
GASKET, SENDER UNIT4FP-H5753-01
Required: 1
GASKET, SENDER UNIT
Price unavailable
-10%
Bolt with Washer
25
Yamaha Motors
Bolt with Washer90119-05022-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
