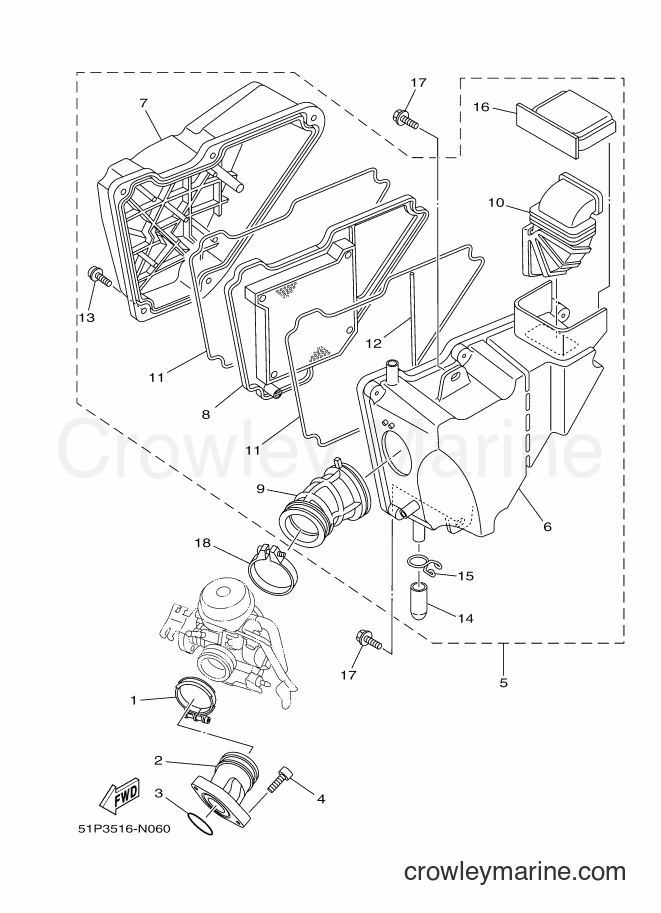

2014 Street Bike YBR125ESD - YBR125ESD (51P3) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YBR125ESD (51P3) [010] - INTAKE
Change View:
HOSE CLAMP ASSY
1
Yamaha Motors
HOSE CLAMP ASSY90450-44804
Required: 1
HOSE CLAMP ASSY
Price unavailable
JOINT, CARBURETOR 1
2
Yamaha Motors
JOINT, CARBURETOR 118C-E3586-10
Required: 1
JOINT, CARBURETOR 1
Price unavailable
-10%
O-Ring
3
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$13.04
You save $1.45
More details
AIR CLEANER ASSY.
5
Yamaha Motors
AIR CLEANER ASSY.18C-E4410-02
Required: 1
AIR CLEANER ASSY.
Price unavailable
. CASE, AIR CLEANER 1
6
Yamaha Motors
. CASE, AIR CLEANER 15VL-E4411-10
Required: 1
. CASE, AIR CLEANER 1
Price unavailable
. CAP, CLEANER CASE 1
7
Yamaha Motors
. CAP, CLEANER CASE 15VL-E4412-00
Required: 1
. CAP, CLEANER CASE 1
Price unavailable
. ELEMENT ASSY, AIR CLEANER
8
Yamaha Motors
. ELEMENT ASSY, AIR CLEANER5VL-E4450-12
Required: 1
. ELEMENT ASSY, AIR CLEANER
Price unavailable
. JOINT, AIR CLEANER 1
9
Yamaha Motors
. JOINT, AIR CLEANER 118C-E4453-00
Required: 1
. JOINT, AIR CLEANER 1
Price unavailable
. DUCT
10
Yamaha Motors
. DUCT5VL-E4437-10
Required: 1
. DUCT
Price unavailable
. SEAL
11
Yamaha Motors
. SEAL5VL-E4452-00
Required: 2
. SEAL
Price unavailable
. SEAL
12
Yamaha Motors
. SEAL5VL-E4462-00
Required: 1
. SEAL
Price unavailable
. SCREW, PAN HEAD W/WASHER
13
Yamaha Motors
. SCREW, PAN HEAD W/WASHER97602-06220
Required: 5
. SCREW, PAN HEAD W/WASHER
Price unavailable
. PIPE, DRAIN
14
Yamaha Motors
. PIPE, DRAIN5VL-E443E-00
Required: 1
. PIPE, DRAIN
Price unavailable
. CLIP, CAP FITTING
15
Yamaha Motors
. CLIP, CAP FITTING5VL-E4424-01
Required: 1
. CLIP, CAP FITTING
Price unavailable
. COVER 1
16
Yamaha Motors
. COVER 15VL-E4417-00
Required: 1
. COVER 1
Price unavailable
BOLT, WITH WASHER
17
Yamaha Motors
BOLT, WITH WASHER90119-06869
Required: 2
BOLT, WITH WASHER
Price unavailable
BAND
18
Yamaha Motors
BAND18C-E3575-01
Required: 1
BAND
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
