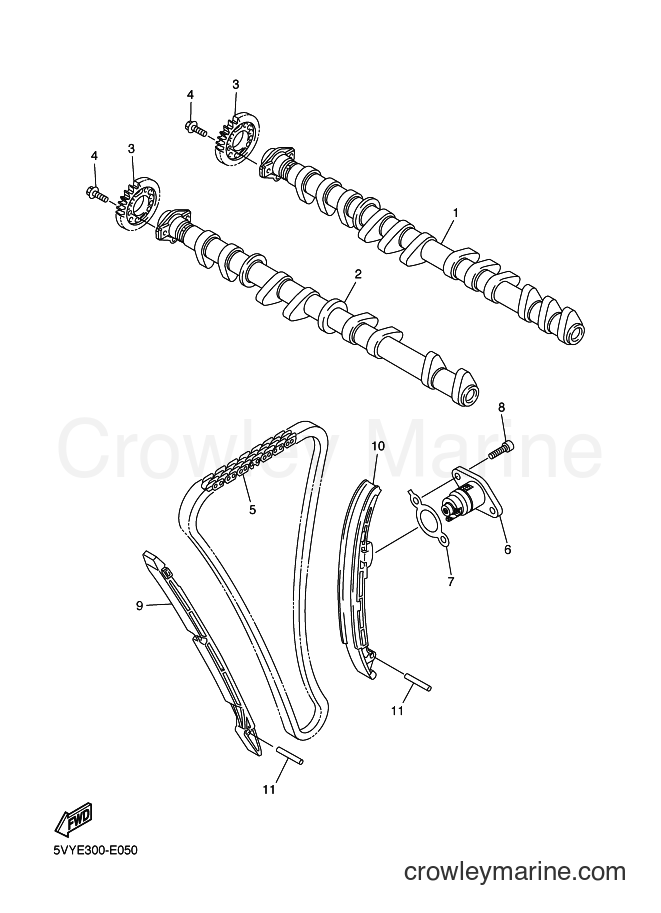

2015 Street Bike FZ1-S - FZ1-S (2DVB) [010] CAMSHAFT & CHAIN diagram
![Yamaha Motors FZ1-S (2DVB) [010] - CAMSHAFT & CHAIN](https://cdn.crowleymarine.com/yamaha/mClfD3OH.png)
-10%
1
Yamaha Motors
Camshaft Assembly 12D1-12170-10-00
Required: 1
CAMSHAFT ASSY 1
No longer availableSearch Nationwide Inventory
$275.39
You save $30.60
-10%
2
Yamaha Motors
Camshaft Assembly2D1-12180-20-00
Required: 1
CAMSHAFT ASSY 2
$309.59
You save $34.40
-10%
3
Yamaha Motors
Cam Chain Sprocket14B-12176-00-00
Required: 2
SPROCKET, CAM CHAIN
$97.19
You save $10.80
-10%
$8.54
You save $0.95
-10%
$44.09
You save $4.90
-10%
6
Yamaha Motors
TENSIONER ASSY, CAM CHAIN5VY-12210-22-00
Required: 1
TENSIONER ASSY, CAM CHAIN
Supersedes: 5VY-12210-21-00
$184.49
You save $20.50
-10%
7
Yamaha Motors
Tensioner Case Gasket2D1-12213-00-00
Required: 1
GASKET, TENSIONER CASE
$7.64
You save $0.85
-10%
8
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$2.39
You save $0.27
-10%
9
Yamaha Motors
Damper Chain5VY-12251-00-00
Required: 1
DAMPER, CHAIN 1
$44.09
You save $4.90
-10%
10
Yamaha Motors
CHAIN DAMPER 25VY-12252-01-00
Required: 1
DAMPER, CHAIN 2
$136.79
You save $15.20
-50%
In stock
Only 1 remaining
$2.75
You save $2.75
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
