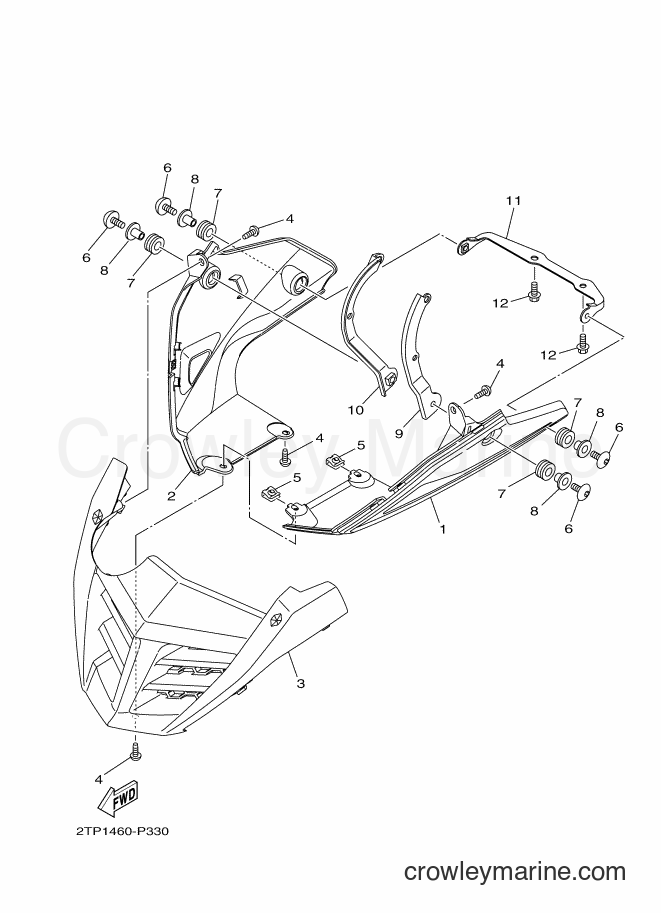

2015 Street Bike FZ150 - FZ150 (2TP3) [010] COWLING 1 diagram
![Yamaha Motors FZ150 (2TP3) [010] - COWLING 1](https://cdn.crowleymarine.com/yamaha/wXvXc35q.png)
1
Yamaha Motors
COVER, UNDER2TP-F8385-00-P1
Required: 1
COVER, UNDER
Price unavailable
2
Yamaha Motors
COVER, UNDER 22TP-F8395-00-P1
Required: 1
COVER, UNDER 2
Price unavailable
3
Yamaha Motors
COVER, UNDER 32TP-F837D-00
Required: 1
COVER, UNDER 3
Price unavailable
-10%
4
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
6
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06137-00
Required: 4
BOLT,HEX. SOCKET BUTTON
$5.84
You save $0.65
7
Yamaha Motors
GROMMET90480-12805
Required: 4
GROMMET
Price unavailable
8
Yamaha Motors
COLLAR90387-06803
Required: 4
COLLAR
Price unavailable
9
Yamaha Motors
BRACKET, POUCH2TP-F8283-00
Required: 1
BRACKET, POUCH
Price unavailable
10
Yamaha Motors
BRACKET, UNDER2TP-F8284-00
Required: 1
BRACKET, UNDER
Price unavailable
11
Yamaha Motors
BRACKET, UNDER 32TP-F8285-00
Required: 1
BRACKET, UNDER 3
Price unavailable
-10%
12
Yamaha Motors
Flange Bolt95817-08014-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-08014-00
$2.25
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
