2015 Street Bike FZN150 - FZN150 (2UP1) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

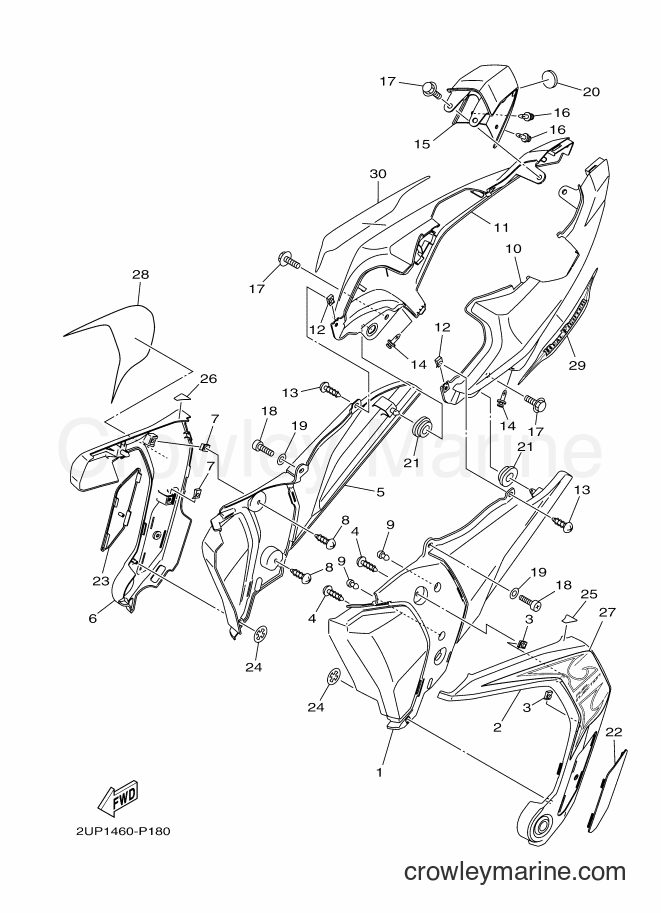

Yamaha Motors FZN150 (2UP1) [010] - SIDE COVER
Change View:
COVER, SIDE 1
1
Yamaha Motors
COVER, SIDE 12UP-F1711-00
Required: 1
COVER, SIDE 1
Price unavailable
PANEL 1
2
Yamaha Motors
PANEL 12UP-F172A-00-P0
Required: 1
PANEL 1
Price unavailable
-10%
Truss Screw
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
COVER, SIDE 2
5
Yamaha Motors
COVER, SIDE 22UP-F1721-00
Required: 1
COVER, SIDE 2
Price unavailable
PANEL 2
6
Yamaha Motors
PANEL 22UP-F172F-00-P0
Required: 1
PANEL 2
Price unavailable
-10%
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
DAMPER
9
Yamaha Motors
DAMPER45P-F1717-00
Required: 2
DAMPER
Price unavailable
COVER, SIDE 3
10
Yamaha Motors
COVER, SIDE 32UP-F1731-00-P0
Required: 1
COVER, SIDE 3
Price unavailable
COVER, SIDE 4
11
Yamaha Motors
COVER, SIDE 42UP-F1741-00-P0
Required: 1
COVER, SIDE 4
Price unavailable
-10%
Truss Screw
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
Cross Ship
Leaves in 2-5 days
$4.63
$4.17
You save $0.46
More details
COVER, SIDE 5
15
Yamaha Motors
COVER, SIDE 52UP-F171E-00-P0
Required: 1
COVER, SIDE 5
Price unavailable
-10%
Bolt with Washer
17
Yamaha Motors
Bolt with Washer90119-06137-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
SCREW, PAN HEAD
18
Yamaha Motors
SCREW, PAN HEAD98502-06014
Required: 2
SCREW, PAN HEAD
Price unavailable
-10%
Plate Washer
19
Yamaha Motors
Plate Washer90201-06055-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.30
$2.97
You save $0.33
More details
EMBLEM
20
Yamaha Motors
EMBLEM5TL-F3108-00
Required: 1
EMBLEM
Price unavailable
-10%
Grommet
21
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
MOLE, SIDE COVER 1
22
Yamaha Motors
MOLE, SIDE COVER 12UP-F171L-00
Required: 1
MOLE, SIDE COVER 1
Price unavailable
MOLE, SIDE COVER 2
23
Yamaha Motors
MOLE, SIDE COVER 22UP-F171M-00
Required: 1
MOLE, SIDE COVER 2
Price unavailable
NUT, SPRING
24
Yamaha Motors
NUT, SPRING90183-05067
Required: 2
NUT, SPRING
Price unavailable
SEAL 1
25
Yamaha Motors
SEAL 12UP-F1732-00
Required: 1
SEAL 1
Price unavailable
SEAL 2
26
Yamaha Motors
SEAL 22UP-F1735-00
Required: 1
SEAL 2
Price unavailable
GRAPHIC 1
27
Yamaha Motors
GRAPHIC 12UP-F173E-00
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
28
Yamaha Motors
GRAPHIC 22UP-F173F-00
Required: 1
GRAPHIC 2
Price unavailable
GRAPHIC 3
29
Yamaha Motors
GRAPHIC 32UP-F174G-00
Required: 1
GRAPHIC 3
Price unavailable
GRAPHIC 4
30
Yamaha Motors
GRAPHIC 42UP-F174H-00
Required: 1
GRAPHIC 4
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
