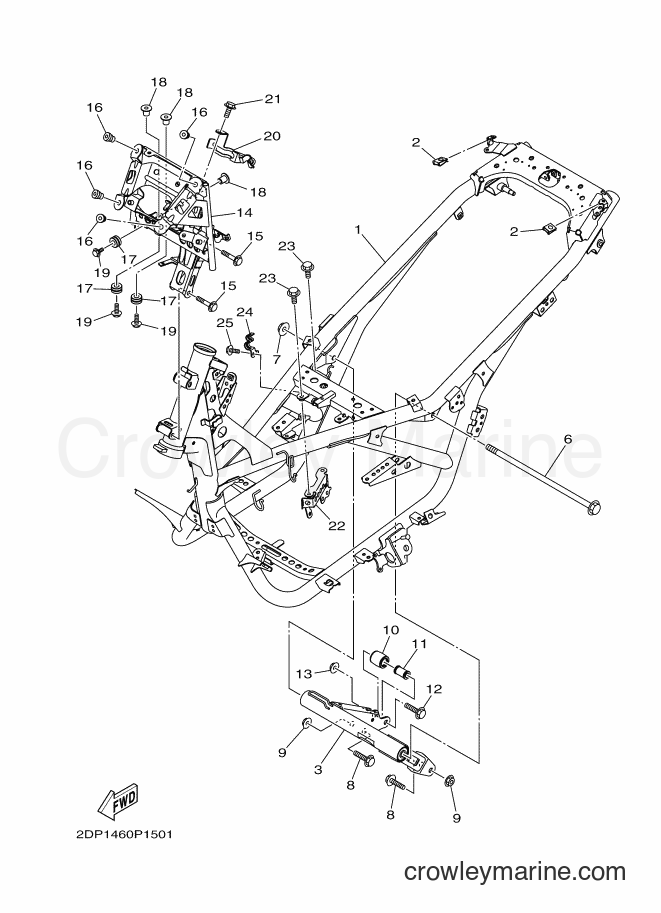

2015 Street Bike GPD150-A - GPD150-A (2DP1) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GPD150-A (2DP1) [010] - FRAME
Change View:
FRAME COMP.
1
Yamaha Motors
FRAME COMP.2DP-F1110-01
Required: 1
FRAME COMP.
Price unavailable
FRAME COMP.
1
Yamaha Motors
FRAME COMP.2DP-F1110-00
Required: 1
FRAME COMP.
Price unavailable
ENGINE BRACKET COMP.
3
Yamaha Motors
ENGINE BRACKET COMP.2DP-F1400-00
Required: 1
ENGINE BRACKET COMP.
Price unavailable
SHAFT, PIVOT
6
Yamaha Motors
SHAFT, PIVOT2DP-F2141-00
Required: 1
SHAFT, PIVOT
Price unavailable
-10%
Self Locking Nut
7
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
-10%
Flange Bolt
8
Yamaha Motors
Flange Bolt90105-10283-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
STOPPER, MAIN STAND
10
Yamaha Motors
STOPPER, MAIN STAND2DP-F7114-00
Required: 1
STOPPER, MAIN STAND
Price unavailable
COLLAR
11
Yamaha Motors
COLLAR2DP-F1748-00
Required: 1
COLLAR
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt90105-10283-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Self Locking Nut
13
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.43
You save $0.27
More details
STAY 1
14
Yamaha Motors
STAY 12DP-F8356-00
Required: 1
STAY 1
Price unavailable
-10%
Flange Bolt
15
Yamaha Motors
Flange Bolt95817-08055-00
Required: 2
BOLT, FLANGE
Supersedes: 95812-08055-00
Cross Ship
Leaves in 2-5 days
$4.21
$3.79
You save $0.42
More details
-10%
GROMMET, WATER TUBE (UPPER)
17
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-14229-00
Required: 3
GROMMET
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
COLLAR
18
Yamaha Motors
COLLAR90387-068N8-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$1.90
$1.71
You save $0.19
More details
HOLDER, BRAKE HOSE 5
20
Yamaha Motors
HOLDER, BRAKE HOSE 52DP-F588F-00
Required: 1
HOLDER, BRAKE HOSE 5
Price unavailable
STAY, IGNITION COIL
22
Yamaha Motors
STAY, IGNITION COIL2DP-F194U-00
Required: 1
STAY, IGNITION COIL
Price unavailable
-10%
Flange Bolt
23
Yamaha Motors
Flange Bolt95022-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.19
You save $0.35
More details
HOLDER, BRAKE HOSE
24
Yamaha Motors
HOLDER, BRAKE HOSE2DP-F5886-00
Required: 1
HOLDER, BRAKE HOSE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
