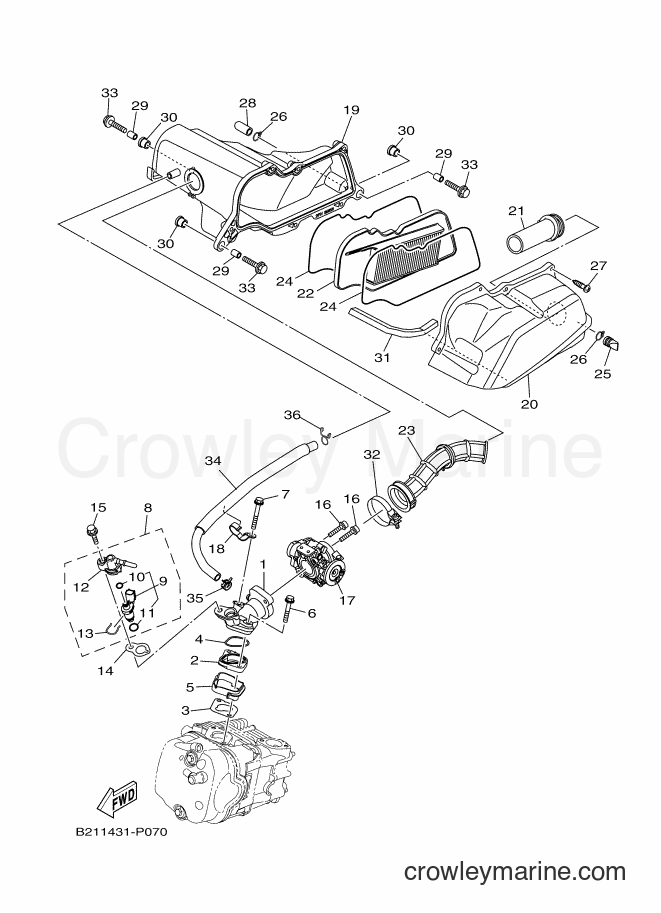

2015 Street Bike LNR125 - LNR125 (B211) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNR125 (B211) [010] - INTAKE
Change View:
MANIFOLD
1
Yamaha Motors
MANIFOLD2PH-E3585-00
Required: 1
MANIFOLD
Price unavailable
JOINT
2
Yamaha Motors
JOINT2PH-E3595-00
Required: 1
JOINT
Price unavailable
GASKET, MANIFOLD
3
Yamaha Motors
GASKET, MANIFOLD2PH-E3556-00
Required: 1
GASKET, MANIFOLD
Price unavailable
-10%
O-Ring
4
Yamaha Motors
O-Ring93210-35537-00
Required: 1
O-RING
Supersedes: 93210-35895-00
Cross Ship
Leaves in 2-5 days
$15.49
$13.94
You save $1.55
More details
DAMPER
5
Yamaha Motors
DAMPER2PH-E3593-00
Required: 1
DAMPER
Price unavailable
-10%
Flange Bolt
6
Yamaha Motors
Flange Bolt95812-06035-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
Flange Bolt
7
Yamaha Motors
Flange Bolt95817-06045-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-06045-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
INJECTOR ASSY
8
Yamaha Motors
INJECTOR ASSY2PH-E3770-00
Required: 1
INJECTOR ASSY
Price unavailable
. INJECTOR
9
Yamaha Motors
. INJECTOR2PH-E3761-00
Required: 1
. INJECTOR
Price unavailable
-10%
O-Ring
10
Yamaha Motors
O-Ring54P-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$5.49
$4.94
You save $0.55
More details
-10%
O-Ring
11
Yamaha Motors
O-Ring5CA-E4147-00-00
Required: 1
. . O-RING
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
-10%
Pipe
12
Yamaha Motors
Pipe54P-E3938-00-00
Required: 1
. PIPE
Cross Ship
Leaves in 2-5 days
$11.49
$10.34
You save $1.15
More details
-10%
Clip
13
Yamaha Motors
Clip54P-E4137-00-00
Required: 1
. CLIP
Cross Ship
Leaves in 2-5 days
$4.95
$4.46
You save $0.50
More details
GASKET
14
Yamaha Motors
GASKET2PH-E3557-00
Required: 1
GASKET
Price unavailable
-10%
Flange Bolt
15
Yamaha Motors
Flange Bolt95812-06025-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.68
You save $0.07
More details
BOLT, HEXAGON SOCKET HEAD
16
Yamaha Motors
BOLT, HEXAGON SOCKET HEAD90110-06846
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
THROTTLE BODY ASSY
17
Yamaha Motors
THROTTLE BODY ASSY2PH-E3750-00
Required: 1
THROTTLE BODY ASSY
Price unavailable
PLATE
18
Yamaha Motors
PLATE2PH-E4146-00
Required: 1
PLATE
Price unavailable
CASE, AIR CLEANER 1
19
Yamaha Motors
CASE, AIR CLEANER 12PH-E4411-00
Required: 1
CASE, AIR CLEANER 1
Price unavailable
CAP, CLEANER CASE 1
20
Yamaha Motors
CAP, CLEANER CASE 12PH-E4412-00
Required: 1
CAP, CLEANER CASE 1
Price unavailable
DUCT
21
Yamaha Motors
DUCT2PH-E4437-00
Required: 1
DUCT
Price unavailable
ELEMENT ASSY, AIR CLEANER
22
Yamaha Motors
ELEMENT ASSY, AIR CLEANER2PH-E4450-00
Required: 1
ELEMENT ASSY, AIR CLEANER
Price unavailable
JOINT, AIR CLEANER 1
23
Yamaha Motors
JOINT, AIR CLEANER 12PH-E4453-00
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
SEAL
24
Yamaha Motors
SEAL2PH-E4452-00
Required: 2
SEAL
Price unavailable
PIPE, DRAIN 2
25
Yamaha Motors
PIPE, DRAIN 25TP-E443G-00
Required: 1
PIPE, DRAIN 2
Price unavailable
CLIP
26
Yamaha Motors
CLIP90467-12807
Required: 2
CLIP
Price unavailable
-10%
Tapping Screw
27
Yamaha Motors
Tapping Screw97707-50025-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
PIPE, DRAIN
28
Yamaha Motors
PIPE, DRAIN5TL-E443E-00
Required: 1
PIPE, DRAIN
Price unavailable
-10%
COLLAR
29
Yamaha Motors
COLLAR90387-06144-00
Required: 3
COLLAR
Supersedes: 90387-064W3-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
DAMPER, PLATE
31
Yamaha Motors
DAMPER, PLATE90520-10825
Required: 1
DAMPER, PLATE
Price unavailable
HOSE CLAMP ASSY
32
Yamaha Motors
HOSE CLAMP ASSY90450-46803
Required: 1
HOSE CLAMP ASSY
Price unavailable
-10%
Flange Bolt
33
Yamaha Motors
Flange Bolt95812-06025-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.68
You save $0.07
More details
PIPE, BREATHER 1
34
Yamaha Motors
PIPE, BREATHER 12PH-E1166-00
Required: 1
PIPE, BREATHER 1
Price unavailable
-10%
CLIP (3P91)
35
Yamaha Motors
CLIP (3P91)90467-13808-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$0.55
$0.50
You save $0.05
More details
-10%
Clip
36
Yamaha Motors
Clip90467-13858-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$2.60
$2.34
You save $0.26
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
