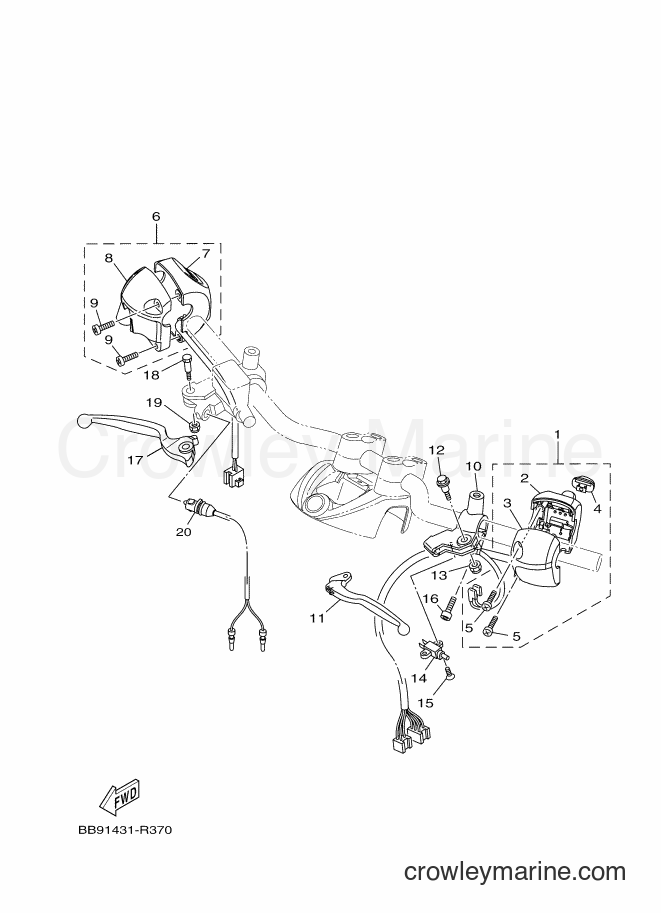

2016 Street Bike LNC125 - LNC125 (BB93) [010] SWITCH & LEVER FOR DISK BRAKE diagram
![Yamaha Motors LNC125 (BB93) [010] - SWITCH & LEVER FOR DISK BRAKE](https://cdn.crowleymarine.com/yamaha/McaR51DE.png)
1
Yamaha Motors
SWITCH, HANDLE 3 (0660,SM1)BB9-H3973-00
Required: 1
SWITCH, HANDLE 3 (0660,SM1)
Price unavailable
1
Yamaha Motors
SWITCH, HANDLE 3 (0033,YB)BB9-H3973-10
Required: 1
SWITCH, HANDLE 3 (0033,YB)
Price unavailable
2
Yamaha Motors
. CASE, SWITCH UPPER (0033,YB)1YC-H3986-20
Required: 1
. CASE, SWITCH UPPER (0033,YB)
Price unavailable
2
Yamaha Motors
. CASE, SWITCH UPPER (0660,SM1)1YC-H3986-00
Required: 1
. CASE, SWITCH UPPER (0660,SM1)
Price unavailable
3
Yamaha Motors
. CASE, SWITCH LOWER (0033,YB)1YC-H3987-20
Required: 1
. CASE, SWITCH LOWER (0033,YB)
Price unavailable
3
Yamaha Motors
. CASE, SWITCH LOWER (0660,SM1)1YC-H3987-00
Required: 1
. CASE, SWITCH LOWER (0660,SM1)
Price unavailable
4
Yamaha Motors
. KNOB 11YC-H3977-00
Required: 1
. KNOB 1
Price unavailable
-10%
5
Yamaha Motors
Pan Head Screw With Washer97607-05225-00
Required: 2
. SCREW, PAN HEAD WITH WASHER
Supersedes: 9760M-05225-00
$4.94
You save $0.55
6
Yamaha Motors
SWITCH, HANDLE 1(0660, SM1)BB9-H3976-00
Required: 1
SWITCH, HANDLE 1(0660, SM1)
Price unavailable
6
Yamaha Motors
SWITCH, HANDLE 1(0033,YB)BB9-H3976-10
Required: 1
SWITCH, HANDLE 1(0033,YB)
Price unavailable
7
Yamaha Motors
. CASE, SWITCH UPPER (0660,SM1)BB9-H3985-00
Required: 1
. CASE, SWITCH UPPER (0660,SM1)
Price unavailable
7
Yamaha Motors
. CASE, SWITCH UPPER (0033,YB)BB9-H3985-10
Required: 1
. CASE, SWITCH UPPER (0033,YB)
Price unavailable
8
Yamaha Motors
. CASE, SWITCH LOWER (0033,YB)BB9-H3988-10
Required: 1
. CASE, SWITCH LOWER (0033,YB)
Price unavailable
8
Yamaha Motors
. CASE, SWITCH LOWER (0660,SM1)BB9-H3988-00
Required: 1
. CASE, SWITCH LOWER (0660,SM1)
Price unavailable
-10%
9
Yamaha Motors
Pan Head Screw With Washer97607-05225-00
Required: 2
. SCREW, PAN HEAD WITH WASHER
Supersedes: 9760M-05225-00
$4.94
You save $0.55
10
Yamaha Motors
HOLDER, LEVER 1 (BLACK)5TL-H2911-10
Required: 1
HOLDER, LEVER 1 (BLACK)
Price unavailable
10
Yamaha Motors
HOLDER, LEVER 1 (SILVER)1YC-H2911-00
Required: 1
HOLDER, LEVER 1 (SILVER)
Price unavailable
11
Yamaha Motors
LEVER 1 (0098, BLACK)5TL-H3912-10
Required: 1
LEVER 1 (0098, BLACK)
Price unavailable
11
Yamaha Motors
LEVER 1 (SILVER)5TL-H3912-00
Required: 1
LEVER 1 (SILVER)
Price unavailable
12
Yamaha Motors
BOLT90109-06889
Required: 1
BOLT
Price unavailable
12
Yamaha Motors
BOLT90109-06814
Required: 1
BOLT
Price unavailable
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
$3.60
14
Yamaha Motors
FRONT STOP SWITCH ASSY5TL-H3980-02
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
-10%
15
Yamaha Motors
Flat Screw98707-03008-00
Required: 1
SCREW, FLAT HEAD
Supersedes: 98702-03008-00
$7.64
You save $0.85
15
Yamaha Motors
SCREW, FLAT HEAD9870M-03008
Required: 1
SCREW, FLAT HEAD
Price unavailable
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
17
Yamaha Motors
LEVER 2 (BLACK)BB9-H3922-10
Required: 1
LEVER 2 (BLACK)
Price unavailable
17
Yamaha Motors
LEVER 2 (SILVER)BB9-H3922-00
Required: 1
LEVER 2 (SILVER)
Price unavailable
-10%
$5.84
You save $0.65
-10%
$2.30
You save $0.25
19
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95602-06100-00
$3.60
19
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
$3.60
20
Yamaha Motors
FRONT STOP SWITCH ASSYBB9-H3980-00
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
