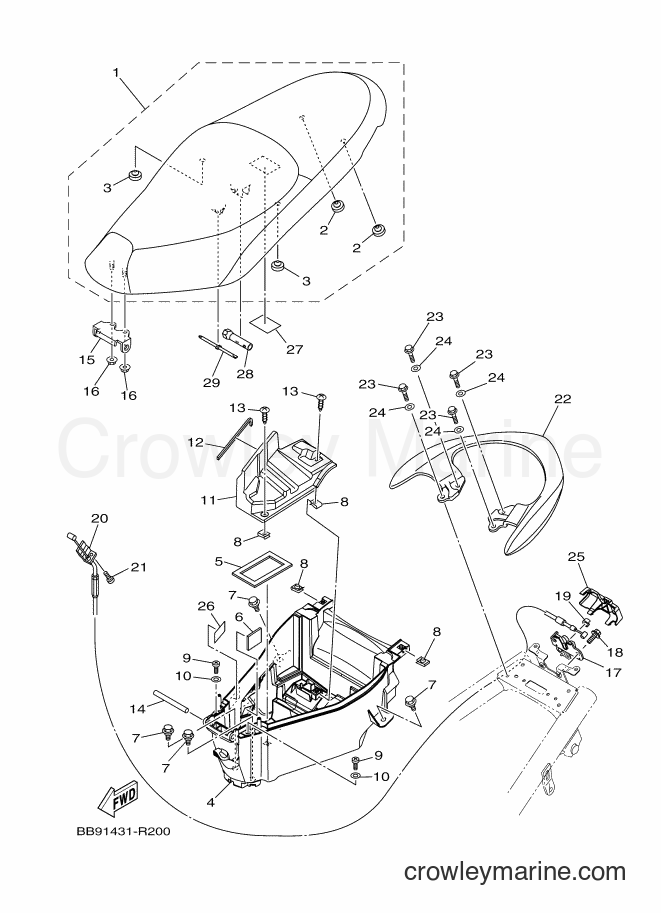

2016 Street Bike LNC125 - LNC125 (BB94) [010] SEAT diagram
![Yamaha Motors LNC125 (BB94) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/s2TURC1f.png)
1
Yamaha Motors
DOUBLE SEAT ASSY(DRAK GRAY/YB)BB9-F4730-00
Required: 1
DOUBLE SEAT ASSY(DRAK GRAY/YB)
Price unavailable
1
Yamaha Motors
DOUBLE SEAT ASSY(DRAK BROWN/YBBB9-F4730-10
Required: 1
DOUBLE SEAT ASSY(DRAK BROWN/YB
Price unavailable
1
Yamaha Motors
DOUBLE SEAT ASSY(D BLUISH GRAYBB9-F4730-20
Required: 1
DOUBLE SEAT ASSY(D BLUISH GRAY
Price unavailable
2
Yamaha Motors
. PAD, SEAT2JK-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
3
Yamaha Motors
. PAD, SEAT33S-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
4
Yamaha Motors
BOX ASSYBB9-F4704-00
Required: 1
BOX ASSY
Price unavailable
5
Yamaha Motors
DAMPER54S-H2176-00
Required: 1
DAMPER
Price unavailable
6
Yamaha Motors
DAMPER5TN-F139X-00
Required: 1
DAMPER
Price unavailable
-20%
In stock
Only 1 remaining
$2.48
You save $0.62
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-50%
9
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05016-00
In stock
Only 4 remaining
$0.90
You save $0.90
10
Yamaha Motors
WASHER, PLATE90201-05812
Required: 2
WASHER, PLATE
Price unavailable
11
Yamaha Motors
COVER, BATTERYBB9-H2129-00
Required: 1
COVER, BATTERY
Price unavailable
12
Yamaha Motors
DAMPER, PLATE90520-02835
Required: 1
DAMPER, PLATE
Price unavailable
-10%
13
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50012-00
$4.17
You save $0.46
14
Yamaha Motors
PIN, SEAT FITTING2BL-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
15
Yamaha Motors
HINGE, SEAT54S-F4726-00
Required: 1
HINGE, SEAT
Price unavailable
-20%
In stock
Only 1 remaining
$2.08
You save $0.52
17
Yamaha Motors
SEAT LOCK ASSY5P0-F4780-01
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
$5.84
You save $0.65
19
Yamaha Motors
STOPPER5YP-F4768-00
Required: 1
STOPPER
Price unavailable
20
Yamaha Motors
CABLE, SEAT LOCKBB9-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
-50%
21
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
22
Yamaha Motors
HANDLE, SEAT (1210, MWM1)BB9-F4773-00-P1
Required: 1
HANDLE, SEAT (1210, MWM1)
Price unavailable
22
Yamaha Motors
HANDLE, SEAT (1341, MDGLM1)BB9-F4773-00-P2
Required: 1
HANDLE, SEAT (1341, MDGLM1)
Price unavailable
22
Yamaha Motors
HANDLE, SEAT (0903,SMX)BB9-F4773-00-P0
Required: 1
HANDLE, SEAT (0903,SMX)
Price unavailable
22
Yamaha Motors
HANDLE, SEAT (0582, MBL2)BB9-F4773-00-P5
Required: 1
HANDLE, SEAT (0582, MBL2)
Price unavailable
-50%
23
Yamaha Motors
Flange Bolt95817-06020-00
Required: 4
BOLT, FLANGE
Supersedes: 95822-06020-00
In stock
Only 2 remaining
$1.75
You save $1.75
24
Yamaha Motors
WASHER, PLATE90201-06864
Required: 4
WASHER, PLATE
Price unavailable
25
Yamaha Motors
COVER, SEAT LOCKBB9-F472T-00
Required: 1
COVER, SEAT LOCK
Price unavailable
26
Yamaha Motors
LABEL, TIRE2BL-F1668-00
Required: 1
LABEL, TIRE
Price unavailable
27
Yamaha Motors
OIL, LABEL1YC-F178B-00
Required: 1
OIL, LABEL
Price unavailable
28
Yamaha Motors
BOX, SPARK PLUG2BL-F814F-00
Required: 1
BOX, SPARK PLUG
Price unavailable
29
Yamaha Motors
DRIVER5VV-F8152-00
Required: 1
DRIVER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
