2016 Street Bike LNR125 - LNR125 (2SX2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

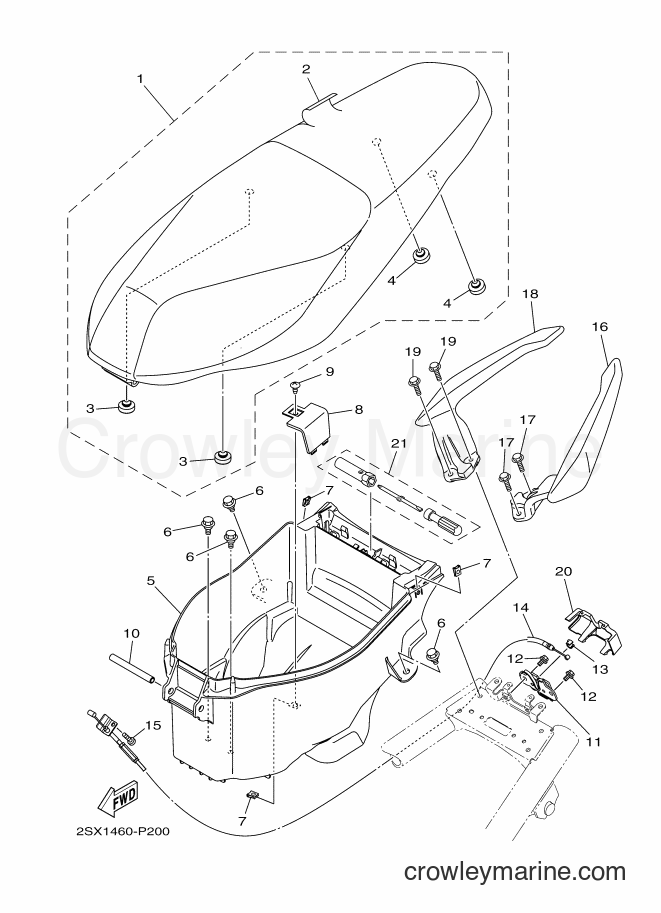

Yamaha Motors LNR125 (2SX2) [010] - SEAT
Change View:
DOUBLE SEAT ASSY
1
Yamaha Motors
DOUBLE SEAT ASSY2SX-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
. SEAT COVER COMP.
2
Yamaha Motors
. SEAT COVER COMP.2SX-F470F-00
Required: 1
. SEAT COVER COMP.
Price unavailable
-10%
Seat Pad (3C11)
3
Yamaha Motors
Seat Pad (3C11)3C1-F4741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$2.35
$2.12
You save $0.23
More details
-10%
SEAT PAD (SX4 T105L)
4
Yamaha Motors
SEAT PAD (SX4 T105L)5BP-F4741-00-00
Required: 2
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$3.50
$3.15
You save $0.35
More details
BOX 1
5
Yamaha Motors
BOX 12SX-F473R-00
Required: 1
BOX 1
Price unavailable
CAP
8
Yamaha Motors
CAP2SX-F482H-00
Required: 1
CAP
Price unavailable
PIN, SEAT FITTING
10
Yamaha Motors
PIN, SEAT FITTING5TL-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
SEAT LOCK ASSY
11
Yamaha Motors
SEAT LOCK ASSY1S7-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95022-06010-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Stopper
13
Yamaha Motors
Stopper1S7-F4768-00-00
Required: 1
STOPPER
Cross Ship
Leaves in 2-5 days
$0.85
$0.77
You save $0.08
More details
CABLE, SEAT LOCK
14
Yamaha Motors
CABLE, SEAT LOCK2SX-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
ASSIST, GRIP
16
Yamaha Motors
ASSIST, GRIP2SX-F474A-00-P0
Required: 1
ASSIST, GRIP
Price unavailable
ASSIST,GRIP 2
18
Yamaha Motors
ASSIST,GRIP 22SX-F474W-00-P0
Required: 1
ASSIST,GRIP 2
Price unavailable
COVER, SEAT LOCK
20
Yamaha Motors
COVER, SEAT LOCK2PH-F472T-00
Required: 1
COVER, SEAT LOCK
Price unavailable
TOOL KIT
21
Yamaha Motors
TOOL KIT54P-F8100-00
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
