2016 Street Bike LNR125 - LNR125 (2SX2) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

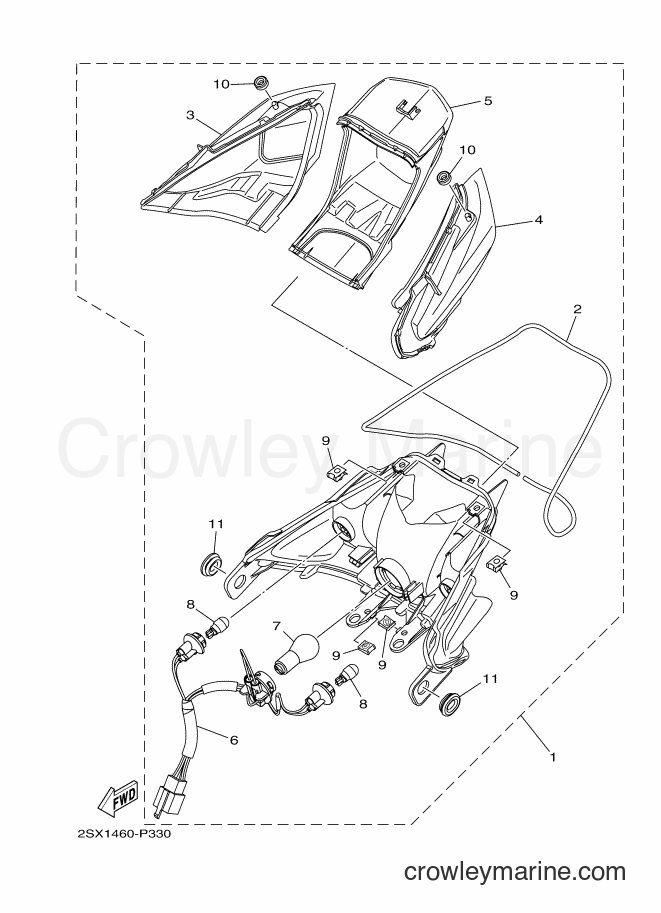

Yamaha Motors LNR125 (2SX2) [010] - TAILLIGHT

Change View:

Yamaha Motors

TAILLIGHT UNIT ASSY2SX-H4710-00

Required: 1

TAILLIGHT UNIT ASSY

Price unavailable

Yamaha Motors

. GASKET, TAIL LENS2SX-H4723-00

Required: 1

. GASKET, TAIL LENS

Price unavailable

Yamaha Motors

. LENS, FLASHER2SX-H3312-10

Required: 1

. LENS, FLASHER

Price unavailable

Yamaha Motors

. LENS, FLASHER2SX-H3312-00

Required: 1

. LENS, FLASHER

Price unavailable

Yamaha Motors

. LENS, TAILLIGHT2SX-H4721-00

Required: 1

. LENS, TAILLIGHT

Price unavailable

Yamaha Motors

. SOCKET CORD ASSY2SX-H4735-00

Required: 1

. SOCKET CORD ASSY

Price unavailable

-50%

Yamaha Motors

Bulb1A2-84714-50-00

Required: 1

. BULB, TAILLIGHT (12V-21/5W)

Supersedes: 36Y-84714-40-00

In stock

Only 3 remaining

~~$15.49~~

$7.74

You save $7.74

More details

Yamaha Motors

. BULB, FLASHER (12V-10W)2SX-H3311-00

Required: 2

. BULB, FLASHER (12V-10W)

Price unavailable

-50%

Yamaha Motors

Spring Nut90183-05042-00

Required: 4

. NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.50

You save $0.50

More details

Yamaha Motors

. GROMMET50C-H4759-00

Required: 2

. GROMMET

Price unavailable

-10%

Yamaha Motors

Grommet90480-01559-00

Required: 2

. GROMMET

~~$6.49~~

$5.84

You save $0.65

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
