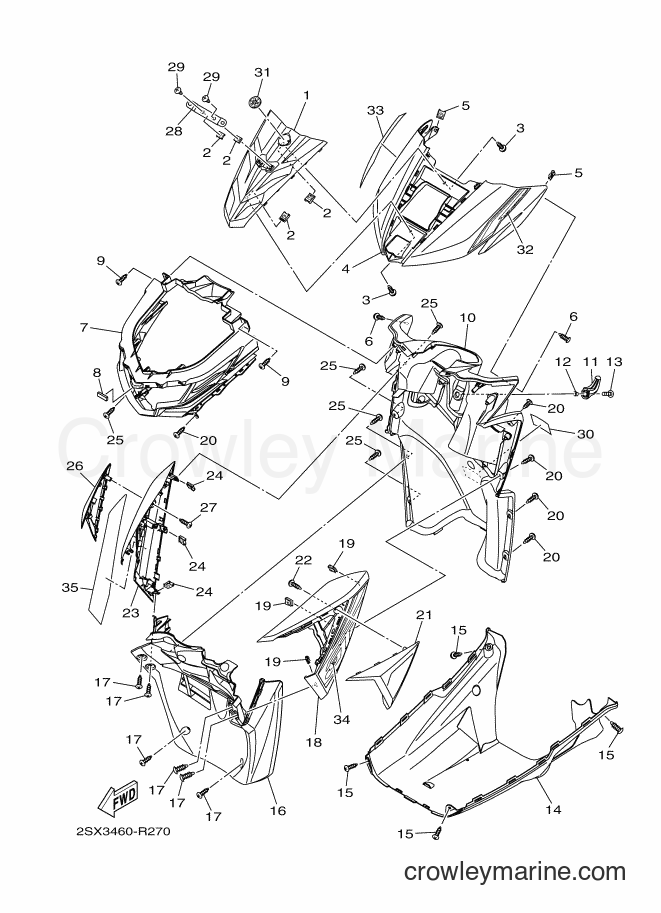

2016 Street Bike LNR125 - LNR125 (2SX4) [010] LEG SHIELD diagram
![Yamaha Motors LNR125 (2SX4) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/VvSqnINc.png)
1
Yamaha Motors
PANEL, FRONT2SX-F3391-00-P5
Required: 1
PANEL, FRONT
Price unavailable
-50%
2
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-20%
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
4
Yamaha Motors
COVER, FRONT2SX-F2865-00-P2
Required: 1
COVER, FRONT
Price unavailable
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-20%
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
7
Yamaha Motors
LEG SHIELD 12SX-F8311-00
Required: 1
LEG SHIELD 1
Price unavailable
8
Yamaha Motors
DAMPER, PLATE90520-02819
Required: 1
DAMPER, PLATE
Price unavailable
-20%
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
10
Yamaha Motors
LEG SHIELD ASSY2SX-F8300-00
Required: 1
LEG SHIELD ASSY
Price unavailable
11
Yamaha Motors
HOOK 12PH-F8257-00
Required: 1
HOOK 1
Price unavailable
12
Yamaha Motors
COLLAR2PH-F8373-00
Required: 1
COLLAR
Price unavailable
-10%
13
Yamaha Motors
BOLT90111-06051-00
Required: 1
BOLT,HEX. SOCKET BUTTON
$5.84
You save $0.65
14
Yamaha Motors
COVER, UNDER2PH-F8385-00
Required: 1
COVER, UNDER
Price unavailable
-20%
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
16
Yamaha Motors
FENDER, INNER2SX-F1552-00
Required: 1
FENDER, INNER
Price unavailable
-20%
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
18
Yamaha Motors
MOLE 12SX-F8345-00-P0
Required: 1
MOLE 1
Price unavailable
-50%
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-20%
20
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 5
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
21
Yamaha Motors
PANEL 12SX-F835U-00
Required: 1
PANEL 1
Price unavailable
-20%
22
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
23
Yamaha Motors
MOLE 22SX-F8346-00-P0
Required: 1
MOLE 2
Price unavailable
-50%
24
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-20%
25
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 5
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
26
Yamaha Motors
PANEL 22SX-F835V-00
Required: 1
PANEL 2
Price unavailable
-20%
27
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
28
Yamaha Motors
BRACKET, NUMBER PLATE5TP-H454E-01
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
-10%
29
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
30
Yamaha Motors
LABEL, TIRE1WD-F1668-00
Required: 1
LABEL, TIRE
Price unavailable
31
Yamaha Motors
EMBLEM, 131B-F313B-00
Required: 1
EMBLEM, 1
Price unavailable
32
Yamaha Motors
GRAPHIC, 132SX-F832L-40
Required: 1
GRAPHIC, 13
Price unavailable
33
Yamaha Motors
GRAPHIC, 142SX-F831Y-40
Required: 1
GRAPHIC, 14
Price unavailable
34
Yamaha Motors
GRAPHIC, 152SX-F832B-40
Required: 1
GRAPHIC, 15
Price unavailable
35
Yamaha Motors
GRAPHIC, 162SX-F832C-40
Required: 1
GRAPHIC, 16
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
