2016 Street Bike MT-09TRA - MT-09TRA (2SCK) [010] GRAPHIC & EMBLEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

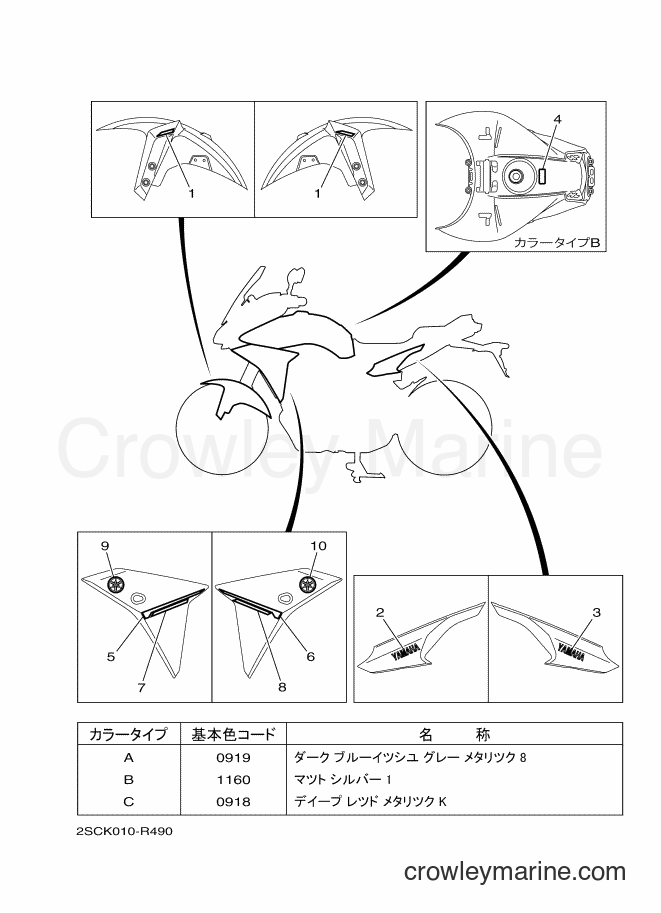

Yamaha Motors MT-09TRA (2SCK) [010] - GRAPHIC & EMBLEM
Change View:
-10%
Emblem / Rear APPLIQUE
1
Yamaha Motors
Emblem / Rear APPLIQUE5VS-21578-20-00
Required: 2
EMBLEM
Cross Ship
Leaves in 2-5 days
$12.99
$11.69
You save $1.30
More details
-10%
YAMAHA EMBLEM
2
Yamaha Motors
YAMAHA EMBLEM99247-00080-00
Required: 1
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$17.49
$15.74
You save $1.75
More details
-10%
YAMAHA EMBLEM
3
Yamaha Motors
YAMAHA EMBLEM99247-00080-00
Required: 1
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$17.49
$15.74
You save $1.75
More details
GRAPHIC 1
5
Yamaha Motors
GRAPHIC 12PP-28391-30
Required: 1
GRAPHIC 1
Price unavailable
GRAPHIC 2
6
Yamaha Motors
GRAPHIC 22PP-28392-30
Required: 1
GRAPHIC 2
Price unavailable
-10%
EMBLEM 3D
7
Yamaha Motors
EMBLEM 3D2PP-2839B-00-00
Required: 1
EMBLEM 3D
Cross Ship
Leaves in 2-5 days
$47.99
$43.19
You save $4.80
More details
-10%
EMBLEM 3D
8
Yamaha Motors
EMBLEM 3D2PP-2839B-00-00
Required: 1
EMBLEM 3D
Cross Ship
Leaves in 2-5 days
$47.99
$43.19
You save $4.80
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
