2016 Street Bike XJR1300C - XJR1300C (2PN4) [010] AIR INDUCTION SYSTEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

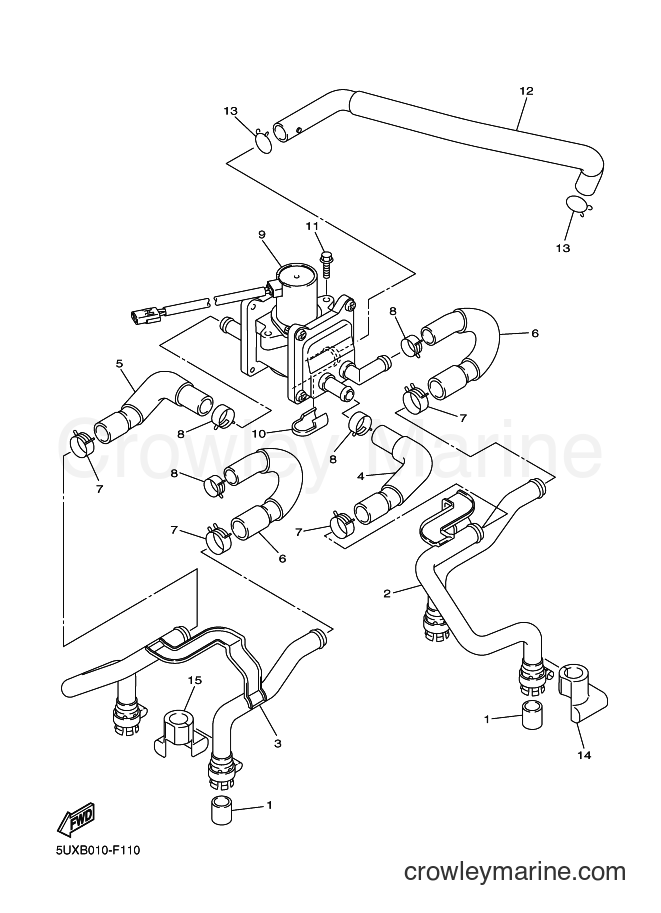

Yamaha Motors XJR1300C (2PN4) [010] - AIR INDUCTION SYSTEM
Change View:
-10%
Muffler Gasket
1
Yamaha Motors
Muffler Gasket4KM-14714-01-00
Required: 4
GASKET, MUFFLER
Cross Ship
Leaves in 2-5 days
$28.99
$26.09
You save $2.90
More details
PIPE 2
2
Yamaha Motors
PIPE 25EA-14872-10
Required: 1
PIPE 2
Price unavailable
PIPE 3
3
Yamaha Motors
PIPE 35EA-14873-10
Required: 1
PIPE 3
Price unavailable
HOSE, BEND 1
4
Yamaha Motors
HOSE, BEND 15UX-14881-00
Required: 1
HOSE, BEND 1
Price unavailable
HOSE, BEND 2
5
Yamaha Motors
HOSE, BEND 25UX-14882-00
Required: 1
HOSE, BEND 2
Price unavailable
HOSE, BEND 3
6
Yamaha Motors
HOSE, BEND 35UX-14883-00
Required: 2
HOSE, BEND 3
Price unavailable
-10%
Clip
7
Yamaha Motors
Clip90468-08104-00
Required: 4
CLIP
Cross Ship
Leaves in 2-5 days
$4.25
$3.83
You save $0.42
More details
CLIP
8
Yamaha Motors
CLIP90467-14150
Required: 4
CLIP
Price unavailable
AIR INDUCTION SYSTEM ASSY
9
Yamaha Motors
AIR INDUCTION SYSTEM ASSY5UX-14803-10
Required: 1
AIR INDUCTION SYSTEM ASSY
Price unavailable
COVER, 3
10
Yamaha Motors
COVER, 35EA-1479K-00
Required: 1
COVER, 3
Price unavailable
-10%
Flange Bolt
11
Yamaha Motors
Flange Bolt95027-06014-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.95
$0.85
You save $0.09
More details
HOSE, BEND 5
12
Yamaha Motors
HOSE, BEND 55UX-14885-00
Required: 1
HOSE, BEND 5
Price unavailable
-10%
Scissor Clip
13
Yamaha Motors
Scissor Clip90467-15012-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
COVER, 1
14
Yamaha Motors
COVER, 15EA-1479H-01
Required: 2
COVER, 1
Price unavailable
COVER 2
15
Yamaha Motors
COVER 25EA-1479J-01
Required: 2
COVER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
