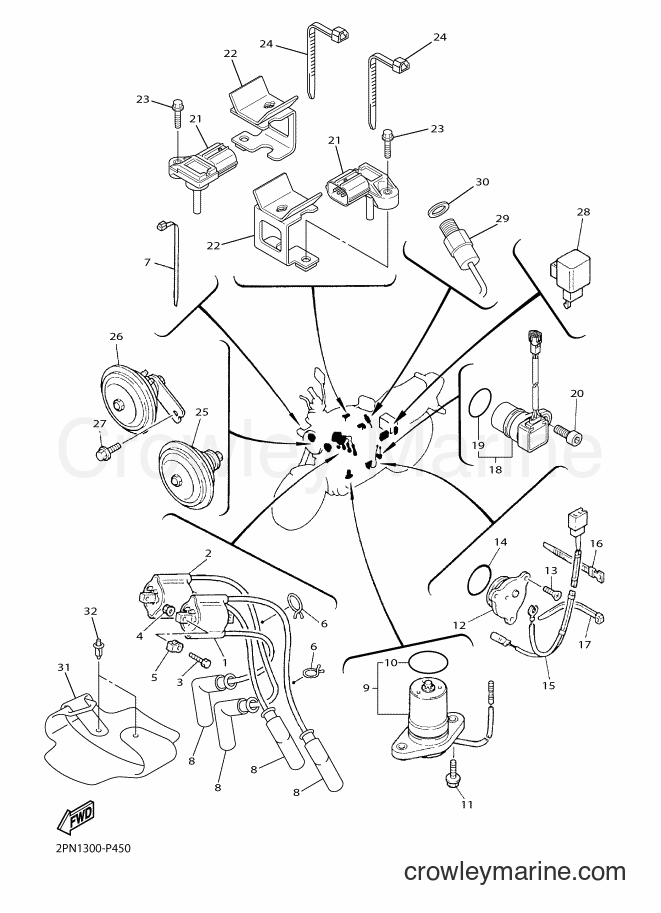

2016 Street Bike XJR1300C - XJR1300C (2PN4) [050] ELECTRICAL 1 diagram
![Yamaha Motors XJR1300C (2PN4) [050] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/AsPod7wH.png)
1
Yamaha Motors
IGNITION COIL ASSY5EA-82310-11
Required: 1
IGNITION COIL ASSY
Price unavailable
2
Yamaha Motors
IGNITION COIL ASSY5EA-82320-11
Required: 1
IGNITION COIL ASSY
Price unavailable
-10%
$3.38
You save $0.38
-20%
In stock
Only 1 remaining
$2.08
You save $0.52
-10%
5
Yamaha Motors
IGNITION COIL DAMPER4BR-82317-00-00
Required: 4
DAMPER, IGNITION COIL
$5.39
You save $0.60
-20%
In stock
Only 1 remaining
$8.39
You save $2.10
-10%
7
Yamaha Motors
Clamp90464-15195-00
Required: 1
CLAMP
Supersedes: 90464-13073-00
$3.97
You save $0.44
8
Yamaha Motors
PLUG CAP ASSY5EA-82370-00
Required: 4
PLUG CAP ASSY
Price unavailable
9
Yamaha Motors
OIL LEVEL GAUGE ASSY5LV-85720-10
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
-10%
$13.94
You save $1.55
-10%
$3.51
You save $0.39
-10%
12
Yamaha Motors
NEUTRAL SWITCH ASSEMBLY1L9-82540-00-00
Required: 1
NEUTRAL SWITCH ASSY
$46.79
You save $5.20
-10%
$3.06
You save $0.34
-10%
$8.54
You save $0.95
15
Yamaha Motors
WIRE, SUB LEAD2PN-82509-00
Required: 1
WIRE, SUB LEAD
Price unavailable
-15%
In stock
5+ in stock
$2.38
You save $0.42
-10%
$8.54
You save $0.95
18
Yamaha Motors
SENSOR, SPEED5UX-83755-10
Required: 1
SENSOR, SPEED
Price unavailable
-50%
In stock
Only 1 remaining
$3.75
You save $3.75
-10%
20
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06193-00
$1.17
You save $0.13
-10%
21
Yamaha Motors
Pressure Sensor1WS-82380-00-00
Required: 2
SENSOR, PRESSURE
Supersedes: 2C0-82380-00-00
$188.99
You save $21.00
22
Yamaha Motors
BRKT., 105UX-2119M-00
Required: 2
BRKT., 10
Price unavailable
-10%
23
Yamaha Motors
Hexagon Socket Bolt90110-05038-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$7.64
You save $0.85
-10%
$4.94
You save $0.55
25
Yamaha Motors
HORN4KG-83371-20
Required: 1
HORN
Price unavailable
26
Yamaha Motors
HORN4KG-83371-30
Required: 1
HORN
Price unavailable
-15%
27
Yamaha Motors
Flange Bolt95817-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06012-00
In stock
Only 2 remaining
$1.66
You save $0.29
28
Yamaha Motors
FLASHER RELAY ASSY5YU-83350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
-10%
$181.79
You save $20.20
-10%
30
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
$3.11
You save $0.34
31
Yamaha Motors
PROTECTOR5UX-2117G-01
Required: 1
PROTECTOR
Price unavailable
-10%
$5.84
You save $0.65
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
