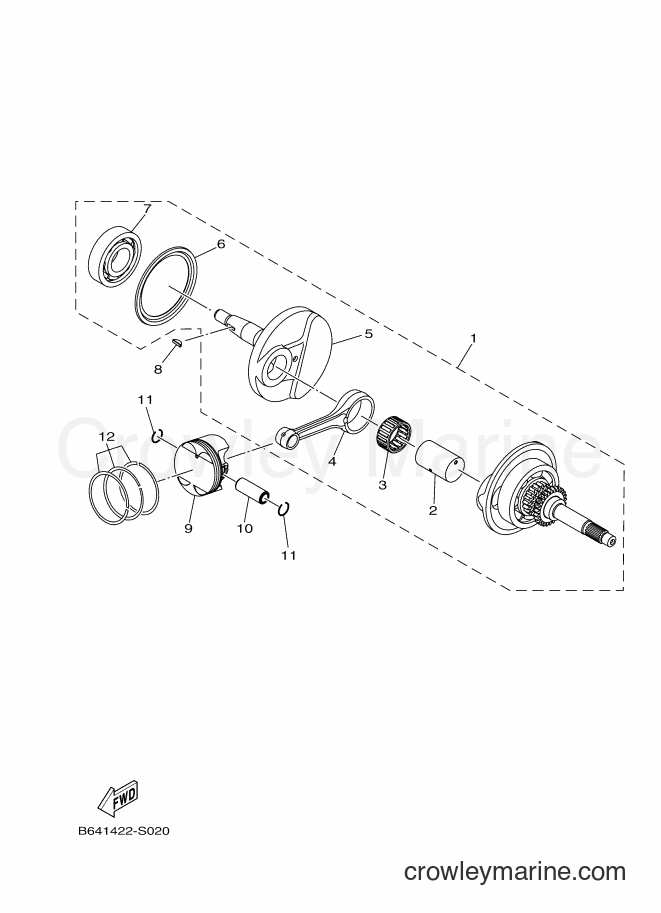

2017 Street Bike GDR125-I - GDR125-I (B641) [010] CRANKSHAFT & PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GDR125-I (B641) [010] - CRANKSHAFT & PISTON
Change View:
CRANKSHAFT ASSY
1
Yamaha Motors
CRANKSHAFT ASSYB64-E1400-00
Required: 1
CRANKSHAFT ASSY
Price unavailable
. PIN, CRANK 1
2
Yamaha Motors
. PIN, CRANK 12DS-E1681-00
Required: 1
. PIN, CRANK 1
Price unavailable
. BEARING
3
Yamaha Motors
. BEARING93310-528YK
Required: 1
. BEARING
Price unavailable
. ROD, CONNECTING
4
Yamaha Motors
. ROD, CONNECTINGB64-E1651-00
Required: 1
. ROD, CONNECTING
Price unavailable
. CRANK 2
5
Yamaha Motors
. CRANK 2B64-E1422-00
Required: 1
. CRANK 2
Price unavailable
. COVER, ROTOR FILTER
6
Yamaha Motors
. COVER, ROTOR FILTERB63-E3452-00
Required: 1
. COVER, ROTOR FILTER
Price unavailable
. BEARING
7
Yamaha Motors
. BEARING93306-305XN
Required: 1
. BEARING
Price unavailable
-10%
Woodruff Key
8
Yamaha Motors
Woodruff Key90280-03017-00
Required: 1
KEY, WOODRUFF
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
PISTON (STD)
9
Yamaha Motors
PISTON (STD)B64-E1631-00
Required: 1
PISTON (STD)
Price unavailable
PIN, PISTON
10
Yamaha Motors
PIN, PISTON5YP-E1633-00
Required: 1
PIN, PISTON
Price unavailable
-10%
Inner Circle Clip
11
Yamaha Motors
Inner Circle Clip93450-16115-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$4.20
$3.78
You save $0.42
More details
PISTON RING SET (STD)
12
Yamaha Motors
PISTON RING SET (STD)B64-E1603-00
Required: 1
PISTON RING SET (STD)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
