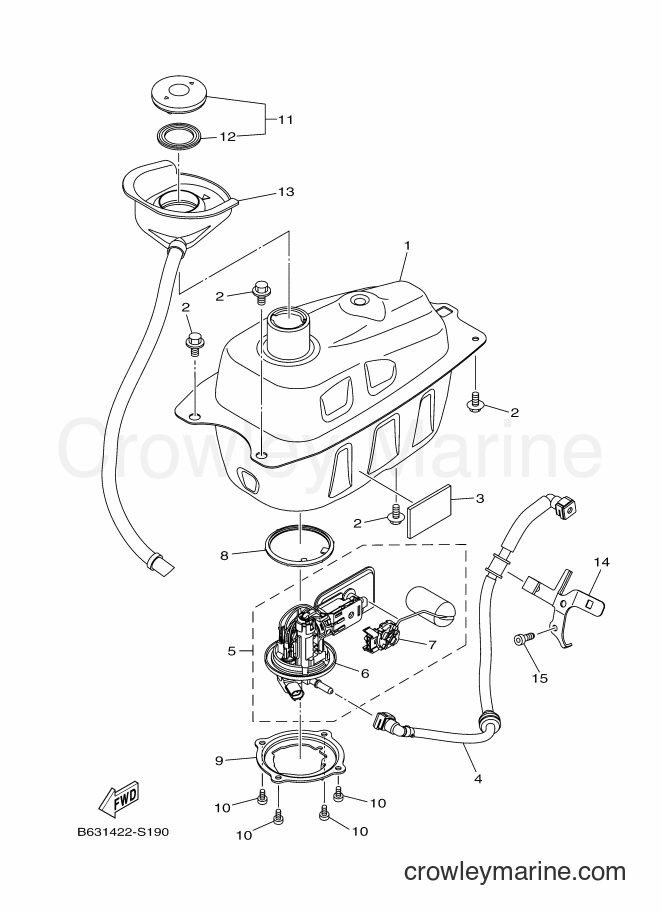

Yamaha Motors GDR155 (B631) [010] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.B63-F4110-00
Required: 1
FUEL TANK COMP.
Price unavailable
BOLT, WITH WASHER
2
Yamaha Motors
BOLT, WITH WASHER90119-068B7
Required: 4
BOLT, WITH WASHER
Price unavailable
DAMPER, PLATE
3
Yamaha Motors
DAMPER, PLATE90520-02829
Required: 2
DAMPER, PLATE
Price unavailable
PIPE, FUEL 1
4
Yamaha Motors
PIPE, FUEL 1B63-E3971-00
Required: 1
PIPE, FUEL 1
Price unavailable
FUEL PUMP COMP.
5
Yamaha Motors
FUEL PUMP COMP.B65-E3907-10
Required: 1
FUEL PUMP COMP.
Price unavailable
. FUEL PUMP ASSY
6
Yamaha Motors
. FUEL PUMP ASSYB65-E3910-00
Required: 1
. FUEL PUMP ASSY
Price unavailable
. SENDER UNIT ASSY, FUEL METER
7
Yamaha Motors
. SENDER UNIT ASSY, FUEL METERB65-H5752-00
Required: 1
. SENDER UNIT ASSY, FUEL METER
Price unavailable
SEAL
8
Yamaha Motors
SEAL1DB-F414G-01
Required: 1
SEAL
Price unavailable
BRACKET, FUEL PUMP
9
Yamaha Motors
BRACKET, FUEL PUMPB63-F4491-00
Required: 1
BRACKET, FUEL PUMP
Price unavailable
-10%
BOLT
10
Yamaha Motors
BOLT91312-05010-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
CAP ASSY
11
Yamaha Motors
CAP ASSY5WP-F4610-01
Required: 1
CAP ASSY
Price unavailable
. PACKING, CAP
12
Yamaha Motors
. PACKING, CAP5WP-F4612-01
Required: 1
. PACKING, CAP
Price unavailable
COVER, FILLER
13
Yamaha Motors
COVER, FILLERB63-F414A-00
Required: 1
COVER, FILLER
Price unavailable
HOLDER
14
Yamaha Motors
HOLDERB63-F419A-00
Required: 1
HOLDER
Price unavailable
-10%
Bolt (4MY)
15
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$1.30
$1.17
You save $0.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
