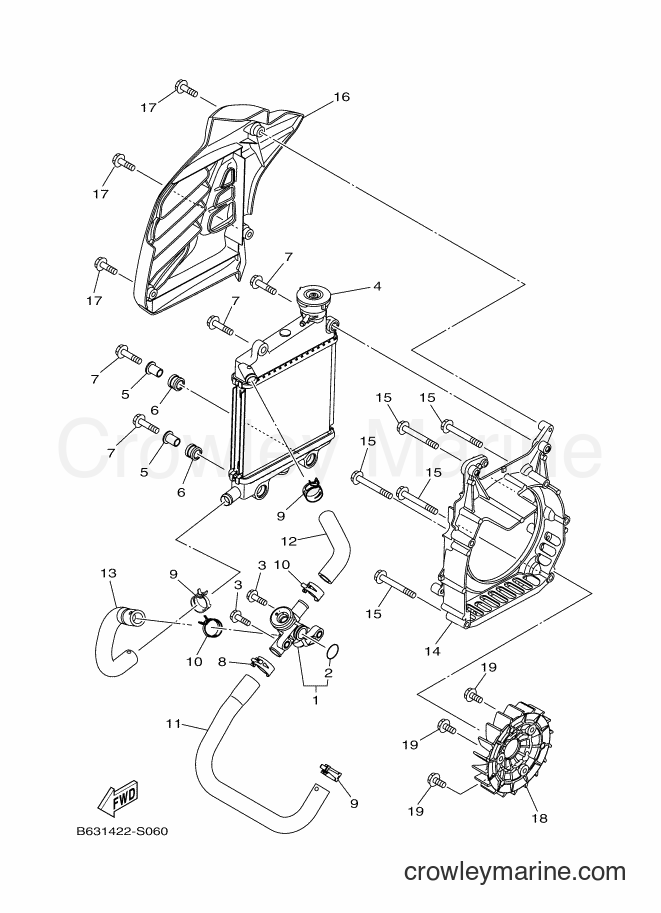

2017 Street Bike GDR155 - GDR155 (B631) [010] RADIATOR & HOSE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GDR155 (B631) [010] - RADIATOR & HOSE
Change View:
THERMOSTAT ASSY
1
Yamaha Motors
THERMOSTAT ASSY2DP-E2410-00
Required: 1
THERMOSTAT ASSY
Price unavailable
-10%
O-Ring
2
Yamaha Motors
O-Ring52S-12439-00-00
Required: 1
. O-RING
Cross Ship
Leaves in 2-5 days
$2.95
$2.66
You save $0.29
More details
-10%
Flange Bolt
3
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
RADIATOR ASSY
4
Yamaha Motors
RADIATOR ASSYB63-E240A-00
Required: 1
RADIATOR ASSY
Price unavailable
COLLAR
5
Yamaha Motors
COLLAR90387-08823
Required: 2
COLLAR
Price unavailable
GROMMET
6
Yamaha Motors
GROMMET90480-15811
Required: 2
GROMMET
Price unavailable
BOLT, FLANGE DEEP RECESS
7
Yamaha Motors
BOLT, FLANGE DEEP RECESS95D32-06030
Required: 4
BOLT, FLANGE DEEP RECESS
Price unavailable
CLIP
8
Yamaha Motors
CLIP90467-20806
Required: 1
CLIP
Price unavailable
CLIP
9
Yamaha Motors
CLIP90467-19803
Required: 3
CLIP
Price unavailable
CLIP
10
Yamaha Motors
CLIP90467-19803
Required: 2
CLIP
Price unavailable
PIPE 1
11
Yamaha Motors
PIPE 1B63-E2481-00
Required: 1
PIPE 1
Price unavailable
PIPE 2
12
Yamaha Motors
PIPE 2B63-E2482-00
Required: 1
PIPE 2
Price unavailable
PIPE 3
13
Yamaha Motors
PIPE 3B63-E2483-00
Required: 1
PIPE 3
Price unavailable
CASE, FAN
14
Yamaha Motors
CASE, FANB63-E2621-00
Required: 1
CASE, FAN
Price unavailable
-10%
Flange Bolt
15
Yamaha Motors
Flange Bolt95022-06045-00
Required: 5
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.65
$4.19
You save $0.46
More details
COVER, RADIATOR
16
Yamaha Motors
COVER, RADIATORB63-E2467-00
Required: 1
COVER, RADIATOR
Price unavailable
-10%
Flange Bolt
17
Yamaha Motors
Flange Bolt95022-06020-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
FAN
18
Yamaha Motors
FANB63-E2611-00
Required: 1
FAN
Price unavailable
BOLT, FLANGE DEEP RECESS
19
Yamaha Motors
BOLT, FLANGE DEEP RECESS95D32-06016
Required: 3
BOLT, FLANGE DEEP RECESS
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
