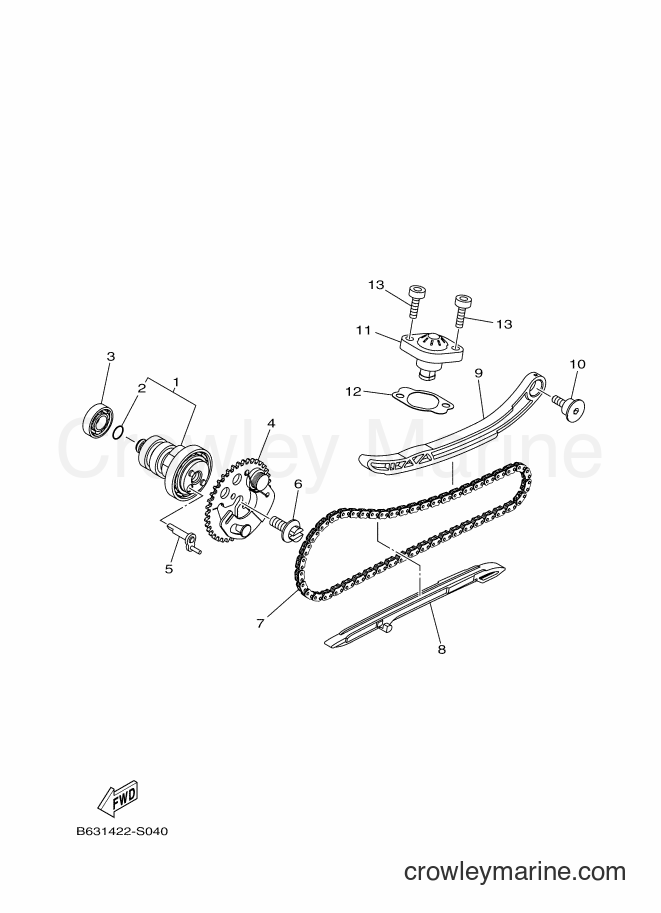

2017 Street Bike GDR155 - GDR155 (B65A) [010] CAMSHAFT & CHAIN diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors GDR155 (B65A) [010] - CAMSHAFT & CHAIN
Change View:
CAMSHAFT ASSY 1
1
Yamaha Motors
CAMSHAFT ASSY 1B65-E2170-00
Required: 1
CAMSHAFT ASSY 1
Price unavailable
. O-RING
2
Yamaha Motors
. O-RING93210-09806
Required: 1
. O-RING
Price unavailable
BEARING
3
Yamaha Motors
BEARING93306-001X9
Required: 1
BEARING
Price unavailable
DECOMPRESSION ASSY
4
Yamaha Motors
DECOMPRESSION ASSYB63-E2280-00
Required: 1
DECOMPRESSION ASSY
Price unavailable
CAM, DECOMPRESSION
5
Yamaha Motors
CAM, DECOMPRESSION2DP-E2288-00
Required: 1
CAM, DECOMPRESSION
Price unavailable
BOLT
6
Yamaha Motors
BOLT5YP-E2157-00
Required: 1
BOLT
Price unavailable
CHAIN (DID SCR-0404 SV)
7
Yamaha Motors
CHAIN (DID SCR-0404 SV)94568-F9096
Required: 1
CHAIN (DID SCR-0404 SV)
Price unavailable
GUIDE, STOPPER 1
8
Yamaha Motors
GUIDE, STOPPER 1B65-E2231-00
Required: 1
GUIDE, STOPPER 1
Price unavailable
GUIDE, STOPPER 2
9
Yamaha Motors
GUIDE, STOPPER 22DP-E2241-00
Required: 1
GUIDE, STOPPER 2
Price unavailable
BOLT
10
Yamaha Motors
BOLT1LB-E2228-00
Required: 1
BOLT
Price unavailable
TENSIONER ASSY, CAM CHAIN
11
Yamaha Motors
TENSIONER ASSY, CAM CHAIN2ND-E2210-10
Required: 1
TENSIONER ASSY, CAM CHAIN
Price unavailable
GASKET, TENSIONER CASE
12
Yamaha Motors
GASKET, TENSIONER CASEB65-E2213-00
Required: 1
GASKET, TENSIONER CASE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
