2017 Street Bike GDR155-R - GDR155-R (BF62) [010] FUEL TANK diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

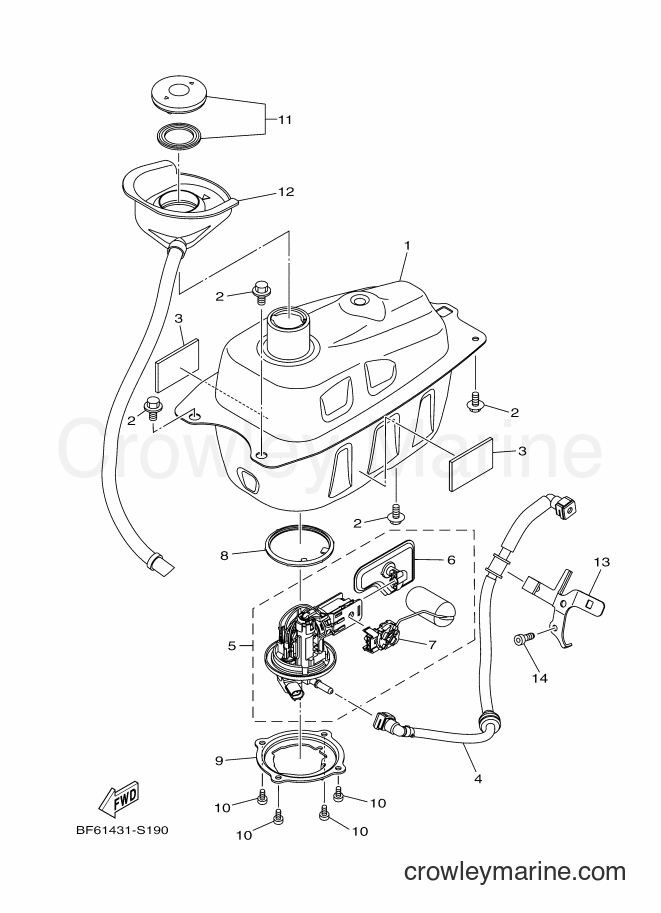

Yamaha Motors GDR155-R (BF62) [010] - FUEL TANK
Change View:
FUEL TANK COMP.
1
Yamaha Motors
FUEL TANK COMP.BF6-F4110-00
Required: 1
FUEL TANK COMP.
Price unavailable
BOLT, WITH WASHER
2
Yamaha Motors
BOLT, WITH WASHER90119-068B7
Required: 4
BOLT, WITH WASHER
Price unavailable
DAMPER, PLATE
3
Yamaha Motors
DAMPER, PLATE90520-02829
Required: 2
DAMPER, PLATE
Price unavailable
PIPE, FUEL 1
4
Yamaha Motors
PIPE, FUEL 1BF6-E3971-00
Required: 1
PIPE, FUEL 1
Price unavailable
FUEL PUMP COMP.
5
Yamaha Motors
FUEL PUMP COMP.B65-E3907-00
Required: 1
FUEL PUMP COMP.
Price unavailable
FUEL PUMP COMP.
5
Yamaha Motors
FUEL PUMP COMP.B65-E3907-10
Required: 1
FUEL PUMP COMP.
Price unavailable
. FILTER, FUEL SUCTION
6
Yamaha Motors
. FILTER, FUEL SUCTION54P-E3915-00
Required: 1
. FILTER, FUEL SUCTION
Price unavailable
. SENDER UNIT ASSY, FUEL METER
7
Yamaha Motors
. SENDER UNIT ASSY, FUEL METERB65-H5752-00
Required: 1
. SENDER UNIT ASSY, FUEL METER
Price unavailable
-10%
Shift Bracket Seal
8
Yamaha Motors
Shift Bracket Seal1DB-F414G-01-00
Required: 1
SEAL
Supersedes: 1DK-F414G-00-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
BRACKET, FUEL PUMP
9
Yamaha Motors
BRACKET, FUEL PUMPBF6-F4491-00
Required: 1
BRACKET, FUEL PUMP
Price unavailable
-10%
BOLT
10
Yamaha Motors
BOLT91312-05010-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
CAP ASSY
11
Yamaha Motors
CAP ASSY54S-F4610-00
Required: 1
CAP ASSY
Price unavailable
COVER, FILLER
12
Yamaha Motors
COVER, FILLERBF6-F414A-00
Required: 1
COVER, FILLER
Price unavailable
HOLDER
13
Yamaha Motors
HOLDERBF6-F419A-00
Required: 1
HOLDER
Price unavailable
-10%
Bolt (4MY)
14
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 1
BOLT,HEX.SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$1.30
$1.17
You save $0.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
