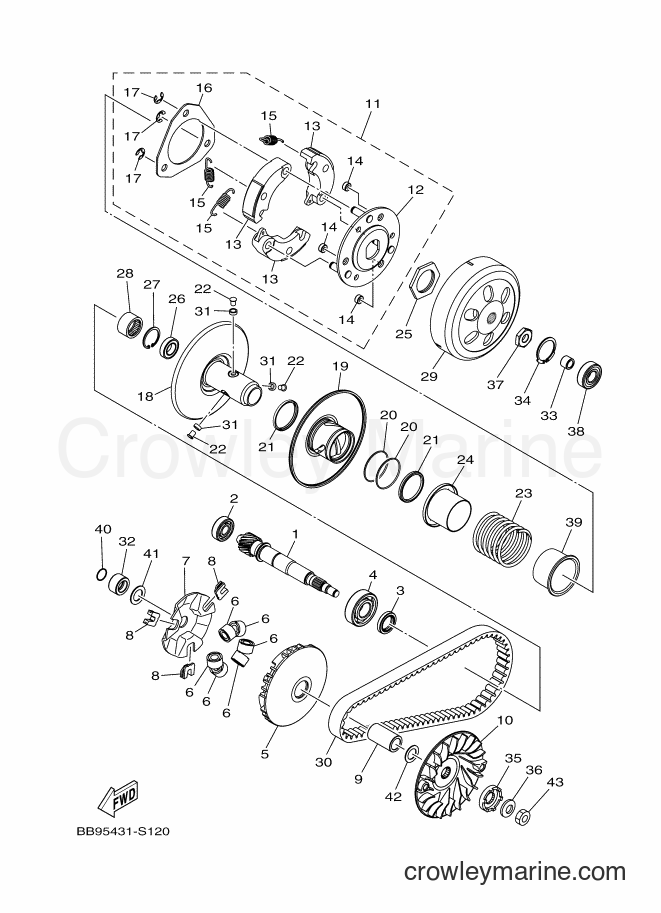

2017 Street Bike LNC125 - LNC125 (BB96) [010] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNC125 (BB96) [010] - CLUTCH
Change View:
GEAR, PRIMARY DRIVE
1
Yamaha Motors
GEAR, PRIMARY DRIVEBB9-E6111-00
Required: 1
GEAR, PRIMARY DRIVE
Price unavailable
BEARING
2
Yamaha Motors
BEARING93306-201YR
Required: 1
BEARING
Price unavailable
OIL SEAL
3
Yamaha Motors
OIL SEAL93102-20815
Required: 1
OIL SEAL
Price unavailable
-10%
BEARING
4
Yamaha Motors
BEARING93306-204XV-00
Required: 1
BEARING
Cross Ship
Leaves in 2-5 days
$19.49
$17.54
You save $1.95
More details
PRIMARY SLIDING SHEAVE COMP.
5
Yamaha Motors
PRIMARY SLIDING SHEAVE COMP.2BL-E7620-00
Required: 1
PRIMARY SLIDING SHEAVE COMP.
Price unavailable
WEIGHT
6
Yamaha Motors
WEIGHTBB9-E7632-01
Required: 6
WEIGHT
Price unavailable
CAM
7
Yamaha Motors
CAM2PH-E7623-00
Required: 1
CAM
Price unavailable
SLIDER
8
Yamaha Motors
SLIDER2XC-E7653-00
Required: 3
SLIDER
Price unavailable
COLLAR, GUIDE
9
Yamaha Motors
COLLAR, GUIDE2PH-E7674-00
Required: 1
COLLAR, GUIDE
Price unavailable
SHEAVE, PRIMARY FIXED
10
Yamaha Motors
SHEAVE, PRIMARY FIXED5P1-E7611-00
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
CLUTCH CARRIER ASSY
11
Yamaha Motors
CLUTCH CARRIER ASSYBB9-E6620-00
Required: 1
CLUTCH CARRIER ASSY
Price unavailable
. CARRIER COMP.
12
Yamaha Motors
. CARRIER COMP.BB9-E6631-00
Required: 1
. CARRIER COMP.
Price unavailable
. SHOE, CLUTCH WEIGHT
13
Yamaha Motors
. SHOE, CLUTCH WEIGHTBB9-E6623-00
Required: 3
. SHOE, CLUTCH WEIGHT
Price unavailable
. DAMPER, CLUTCH WEIGHT
14
Yamaha Motors
. DAMPER, CLUTCH WEIGHT2BL-E6629-00
Required: 3
. DAMPER, CLUTCH WEIGHT
Price unavailable
. SPRING, CLUTCH WEIGHT 1
15
Yamaha Motors
. SPRING, CLUTCH WEIGHT 1BB9-E6626-00
Required: 3
. SPRING, CLUTCH WEIGHT 1
Price unavailable
. PLATE, WEIGHT THRUST
16
Yamaha Motors
. PLATE, WEIGHT THRUST2PH-E6523-00
Required: 1
. PLATE, WEIGHT THRUST
Price unavailable
. CIRCLIP, CLUTCH
17
Yamaha Motors
. CIRCLIP, CLUTCH2BL-E6819-00
Required: 3
. CIRCLIP, CLUTCH
Price unavailable
SECONDARY FIXED SHEAVE COMP.
18
Yamaha Motors
SECONDARY FIXED SHEAVE COMP.BB9-E7660-00
Required: 1
SECONDARY FIXED SHEAVE COMP.
Price unavailable
SECONDARY SLIDING SHEAVE
19
Yamaha Motors
SECONDARY SLIDING SHEAVEBB9-E7670-00
Required: 1
SECONDARY SLIDING SHEAVE
Price unavailable
SEAL
20
Yamaha Motors
SEALBB9-E7465-00
Required: 2
SEAL
Price unavailable
SEAL
21
Yamaha Motors
SEALBB9-E7465-10
Required: 2
SEAL
Price unavailable
PIN, GUIDE
22
Yamaha Motors
PIN, GUIDEBB9-E7664-00
Required: 3
PIN, GUIDE
Price unavailable
SPRING, SECONDARY
23
Yamaha Motors
SPRING, SECONDARY2PH-E7683-00
Required: 1
SPRING, SECONDARY
Price unavailable
SEAT, SECONDARY SPRING
24
Yamaha Motors
SEAT, SECONDARY SPRING2PH-E7684-00
Required: 1
SEAT, SECONDARY SPRING
Price unavailable
NUT
25
Yamaha Motors
NUTBB9-E7668-00
Required: 1
NUT
Price unavailable
BEARING
26
Yamaha Motors
BEARING2BL-E7678-00
Required: 1
BEARING
Price unavailable
CIRCLIP
27
Yamaha Motors
CIRCLIP2BL-E5744-00
Required: 1
CIRCLIP
Price unavailable
BEARING
28
Yamaha Motors
BEARING2BL-E7678-10
Required: 1
BEARING
Price unavailable
CLUTCH HOUSING COMP.
29
Yamaha Motors
CLUTCH HOUSING COMP.BB9-E6611-00
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
V-BELT
30
Yamaha Motors
V-BELTBB9-E7641-00
Required: 1
V-BELT
Price unavailable
COLLAR, GUIDE
31
Yamaha Motors
COLLAR, GUIDE2PH-E7674-10
Required: 3
COLLAR, GUIDE
Price unavailable
COLLAR
32
Yamaha Motors
COLLAR2BL-E7645-00
Required: 1
COLLAR
Price unavailable
BUSH, SOLID
33
Yamaha Motors
BUSH, SOLID90380-10801
Required: 1
BUSH, SOLID
Price unavailable
-10%
Circle Clip
34
Yamaha Motors
Circle Clip99009-35700-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$3.70
$3.33
You save $0.37
More details
CLUTCH, ONEWAY
35
Yamaha Motors
CLUTCH, ONEWAY1P7-E5657-00
Required: 1
CLUTCH, ONEWAY
Price unavailable
WASHER, CONICAL SPRING
36
Yamaha Motors
WASHER, CONICAL SPRING90208-12808
Required: 1
WASHER, CONICAL SPRING
Price unavailable
NUT
37
Yamaha Motors
NUT90170-12802
Required: 1
NUT
Price unavailable
BEARING
38
Yamaha Motors
BEARING93306-252YR
Required: 1
BEARING
Price unavailable
SEAT,SPRING
39
Yamaha Motors
SEAT,SPRING2PH-E7644-00
Required: 1
SEAT,SPRING
Price unavailable
O-RING
40
Yamaha Motors
O-RING93210-16801
Required: 1
O-RING
Price unavailable
WASHER, PLATE
41
Yamaha Motors
WASHER, PLATE90201-16815
Required: 1
WASHER, PLATE
Price unavailable
-10%
Plain Washer
42
Yamaha Motors
Plain Washer90201-154E8-00
Required: 1
WASHER, PLATE
Supersedes: 90201-15700-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Nut
43
Yamaha Motors
Nut90170-12800-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$1.15
$1.04
You save $0.11
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
