2017 Street Bike LNC125 - LNC125 (BB96) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

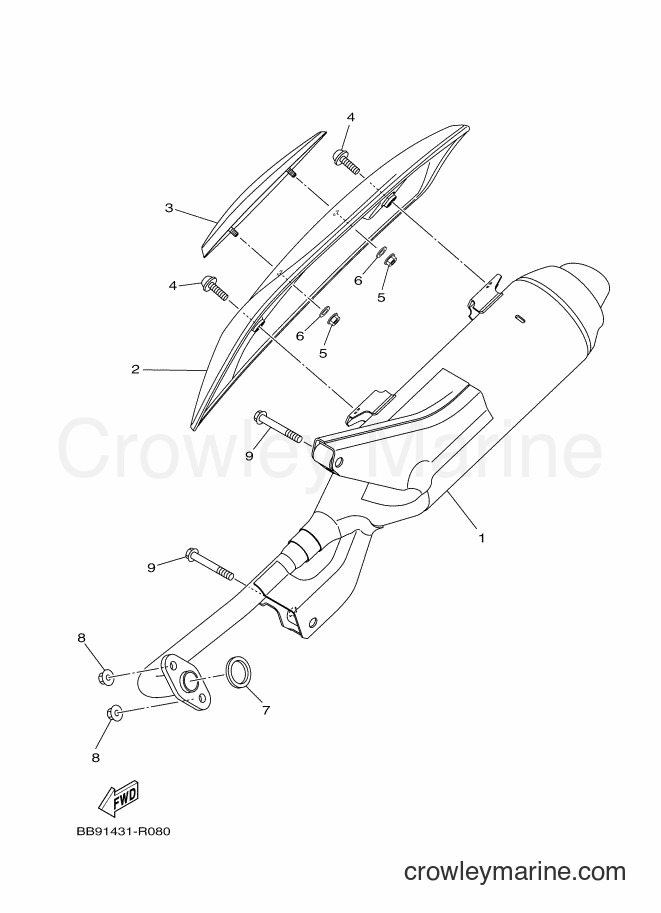

Yamaha Motors LNC125 (BB96) [010] - EXHAUST

Change View:

Yamaha Motors

MUFFLER 1BB9-E4711-01

Required: 1

MUFFLER 1

Price unavailable

Yamaha Motors

PROTECTOR, MUFFLER 11YC-E4718-00

Required: 1

PROTECTOR, MUFFLER 1

Price unavailable

Yamaha Motors

PROTECTOR, MUFFLER 21YC-E4728-00

Required: 1

PROTECTOR, MUFFLER 2

Price unavailable

-10%

Yamaha Motors

Flange Nut95707-06500-00

Required: 2

NUT, FLANGE

~~$1.00~~

$0.90

You save $0.10

-10%

WASHER

~~$9.49~~

$8.54

You save $0.95

More details

Yamaha Motors

BOLT,HEX. SOCKET BUTTON90111-06811

Required: 2

BOLT,HEX. SOCKET BUTTON

Price unavailable

Yamaha Motors

GASKET, EXHAUST PIPE2BL-E4613-00

Required: 1

GASKET, EXHAUST PIPE

Price unavailable

-20%

Yamaha Motors

Flange Nut95702-08500-00

Required: 2

NUT, FLANGE

In stock

Only 2 remaining

~~$1.05~~

$0.84

You save $0.21

More details

-10%

Yamaha Motors

Flange Bolt95817-08055-00

Required: 2

BOLT, FLANGE

Supersedes: 95812-08055-00

~~$4.21~~

$3.79

You save $0.42

More details

Yamaha Motors

BOLT, FLANGE DEEP RECESS95D32-08055

Required: 2

BOLT, FLANGE DEEP RECESS

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
