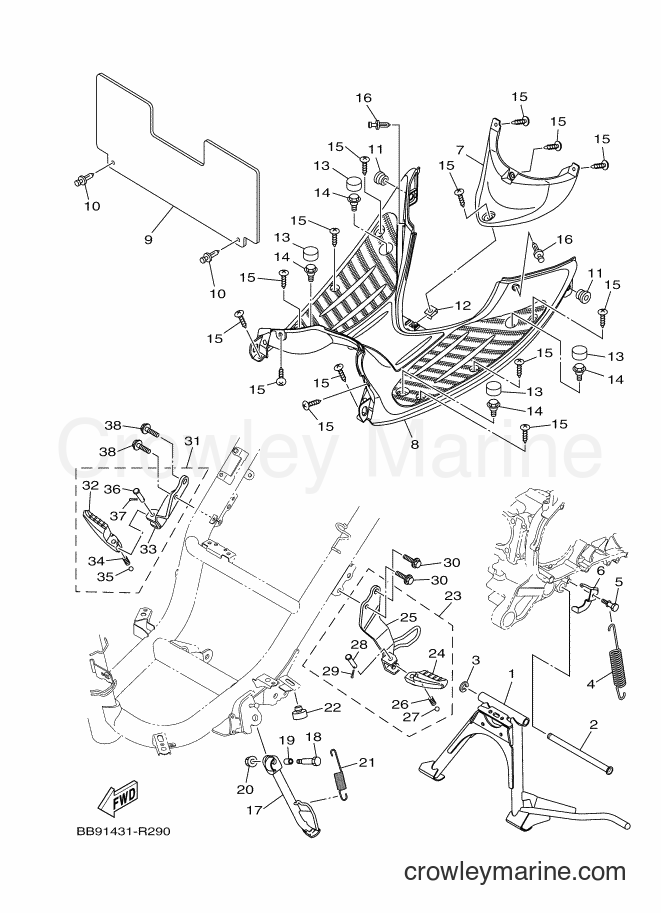

2017 Street Bike LNC125 - LNC125 (BB95) [010] STAND & FOOTREST diagram
![Yamaha Motors LNC125 (BB95) [010] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/HRgvsz47.png)
1
Yamaha Motors
STAND, MAINBB9-F7111-00
Required: 1
STAND, MAIN
Price unavailable
2
Yamaha Motors
SHAFT, MAIN STAND2BM-F7112-00
Required: 1
SHAFT, MAIN STAND
Price unavailable
-10%
3
Yamaha Motors
Circle Clip99080-09600-00
Required: 1
CIRCLIP
Supersedes: 99002-09600-00
$2.88
You save $0.32
4
Yamaha Motors
SPRING, TENSION90506-35821
Required: 1
SPRING, TENSION
Price unavailable
5
Yamaha Motors
HOOK5MY-F7254-00
Required: 1
HOOK
Price unavailable
6
Yamaha Motors
GUIDE, WIREBB9-F7267-00
Required: 1
GUIDE, WIRE
Price unavailable
7
Yamaha Motors
COVER 1BB9-F7486-00
Required: 1
COVER 1
Price unavailable
7
Yamaha Motors
COVER 1BB9-F7486-20
Required: 1
COVER 1
Price unavailable
8
Yamaha Motors
BOARD, FOOTRESTBB9-F7481-00
Required: 1
BOARD, FOOTREST
Price unavailable
8
Yamaha Motors
BOARD, FOOTRESTBB9-F7481-20
Required: 1
BOARD, FOOTREST
Price unavailable
9
Yamaha Motors
PROTECTORBB9-F7491-00
Required: 1
PROTECTOR
Price unavailable
-10%
$1.17
You save $0.13
11
Yamaha Motors
GROMMET90480-13867
Required: 2
GROMMET
Price unavailable
-50%
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
13
Yamaha Motors
CAP 152B-F7475-00
Required: 4
CAP 1
Price unavailable
13
Yamaha Motors
CAP 152B-F7475-30
Required: 4
CAP 1
Price unavailable
-10%
$10.34
You save $1.15
-10%
15
Yamaha Motors
Truss Screw97707-50012-00
Required: 14
SCREW, TRUSS HEAD TAPPING
$4.17
You save $0.46
16
Yamaha Motors
RIVET90269-06815
Required: 2
RIVET
Price unavailable
17
Yamaha Motors
STAND, SIDEBB9-F7311-00
Required: 1
STAND, SIDE
Price unavailable
18
Yamaha Motors
BOLT90101-08847
Required: 1
BOLT
Price unavailable
19
Yamaha Motors
COLLAR90387-08820
Required: 1
COLLAR
Price unavailable
-10%
$2.88
You save $0.32
21
Yamaha Motors
SPRING, TENSION90506-20829
Required: 1
SPRING, TENSION
Price unavailable
22
Yamaha Motors
STOPPERBB9-F6257-00
Required: 1
STOPPER
Price unavailable
23
Yamaha Motors
REAR FOOTREST ASSY 1BB9-F7430-00
Required: 1
REAR FOOTREST ASSY 1
Price unavailable
24
Yamaha Motors
. FOOTREST, REAR 14D0-F7431-00
Required: 1
. FOOTREST, REAR 1
Price unavailable
25
Yamaha Motors
. BRACKET 1BB9-F7432-00
Required: 1
. BRACKET 1
Price unavailable
-10%
26
Yamaha Motors
Compression Spring90501-12743-00
Required: 1
. SPRING, COMPRESSION
$4.94
You save $0.55
27
Yamaha Motors
. BALL93501-04843
Required: 1
. BALL
Price unavailable
-10%
$7.64
You save $0.85
No longer availableSearch Nationwide Inventory
$0.61
-10%
30
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-08030-00
$8.54
You save $0.95
31
Yamaha Motors
REAR FOOTREST ASSY 2BB9-F7440-00
Required: 1
REAR FOOTREST ASSY 2
Price unavailable
32
Yamaha Motors
. FOOTREST, REAR 24D0-F7441-00
Required: 1
. FOOTREST, REAR 2
Price unavailable
33
Yamaha Motors
. BRACKET 2BB9-F7442-00
Required: 1
. BRACKET 2
Price unavailable
-10%
34
Yamaha Motors
Compression Spring90501-12743-00
Required: 1
. SPRING, COMPRESSION
$4.94
You save $0.55
35
Yamaha Motors
. BALL93501-04843
Required: 1
. BALL
Price unavailable
-10%
$7.64
You save $0.85
No longer availableSearch Nationwide Inventory
$0.61
-10%
38
Yamaha Motors
Flange Bolt95817-08030-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-08030-00
$8.54
You save $0.95
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
