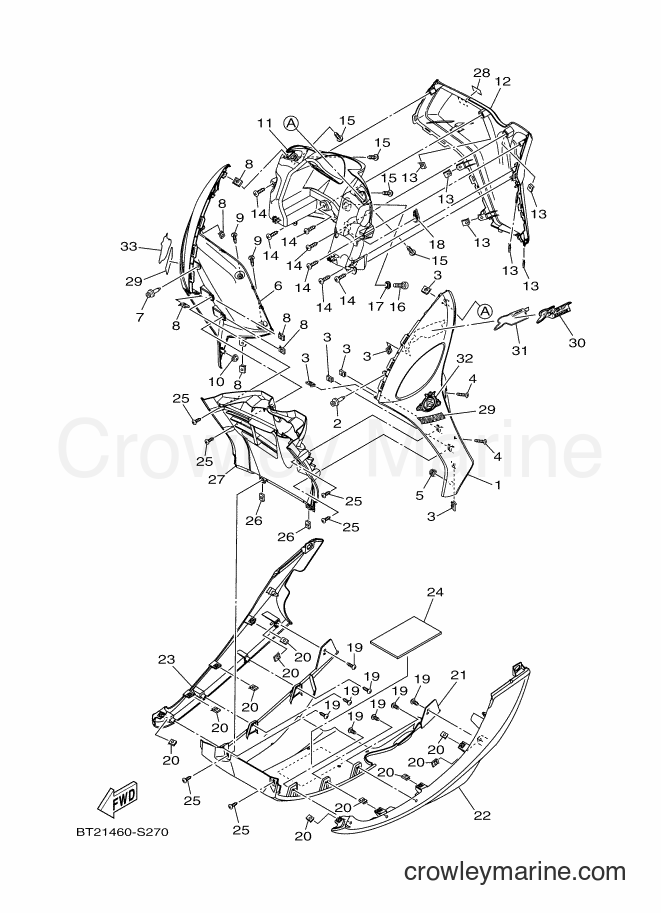

2017 Street Bike LNC125-I - LNC125-I (BT21) [010] LEG SHIELD diagram
![Yamaha Motors LNC125-I (BT21) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/GFSznKPT.png)
1
Yamaha Motors
LEG SHIELD 11YD-F8311-00-P9
Required: 1
LEG SHIELD 1
Price unavailable
-10%
$1.17
You save $0.13
-50%
3
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
4
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.12
You save $0.23
5
Yamaha Motors
GROMMET1YD-F8187-00
Required: 1
GROMMET
Price unavailable
6
Yamaha Motors
LEG SHIELD 21YD-F8312-00-P9
Required: 1
LEG SHIELD 2
Price unavailable
-10%
$1.17
You save $0.13
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
9
Yamaha Motors
Round Tapping Screw90160-05810-00
Required: 2
SCREW, ROUND TAPPING
$2.12
You save $0.23
10
Yamaha Motors
GROMMET1YD-F8187-00
Required: 1
GROMMET
Price unavailable
11
Yamaha Motors
PANEL, INNER 11YD-F836K-00-P5
Required: 1
PANEL, INNER 1
Price unavailable
12
Yamaha Motors
PANEL, INNER 21YD-F836L-00-PA
Required: 1
PANEL, INNER 2
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
14
Yamaha Motors
Tapping Screw97702-50016-00
Required: 7
SCREW, TAPPING
$2.34
You save $0.26
-10%
15
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
$2.34
You save $0.26
-50%
16
Yamaha Motors
Screw (M8 X 40)98980-06012-00
Required: 1
SCREW, BIND
Supersedes: 98902-06012-00
In stock
Only 3 remaining
$4.75
You save $4.75
17
Yamaha Motors
COLLAR90387-07828
Required: 1
COLLAR
Price unavailable
18
Yamaha Motors
CAP1YD-F8349-00
Required: 1
CAP
Price unavailable
-10%
19
Yamaha Motors
Truss Screw97707-50012-00
Required: 8
SCREW, TRUSS HEAD TAPPING
$4.17
You save $0.46
-50%
20
Yamaha Motors
Spring Nut90183-05042-00
Required: 10
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
21
Yamaha Motors
COVER, UNDERBJ8-F8385-00
Required: 1
COVER, UNDER
Price unavailable
22
Yamaha Motors
COVER, UNDER 2BJ8-F8395-00-P7
Required: 1
COVER, UNDER 2
Price unavailable
23
Yamaha Motors
COVER, UNDER 3BJ8-F837D-00-P7
Required: 1
COVER, UNDER 3
Price unavailable
24
Yamaha Motors
DAMPER, PLATE90520-03813
Required: 1
DAMPER, PLATE
Price unavailable
-10%
25
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$4.17
You save $0.46
-50%
26
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
27
Yamaha Motors
FENDER, INNER1YD-F1552-00
Required: 1
FENDER, INNER
Price unavailable
28
Yamaha Motors
EMBLEMBN1-F8315-00
Required: 1
EMBLEM
Price unavailable
29
Yamaha Motors
EMBLEMBT2-F8315-00
Required: 2
EMBLEM
Price unavailable
30
Yamaha Motors
GRAPHIC 1BT2-F8391-00
Required: 1
GRAPHIC 1
Price unavailable
31
Yamaha Motors
GRAPHIC 2BT2-F8392-00
Required: 1
GRAPHIC 2
Price unavailable
32
Yamaha Motors
GRAPHIC SETBT2-F83B1-00
Required: 1
GRAPHIC SET
Price unavailable
33
Yamaha Motors
GRAPHIC SETBT2-F83B1-00
Required: 1
GRAPHIC SET
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
