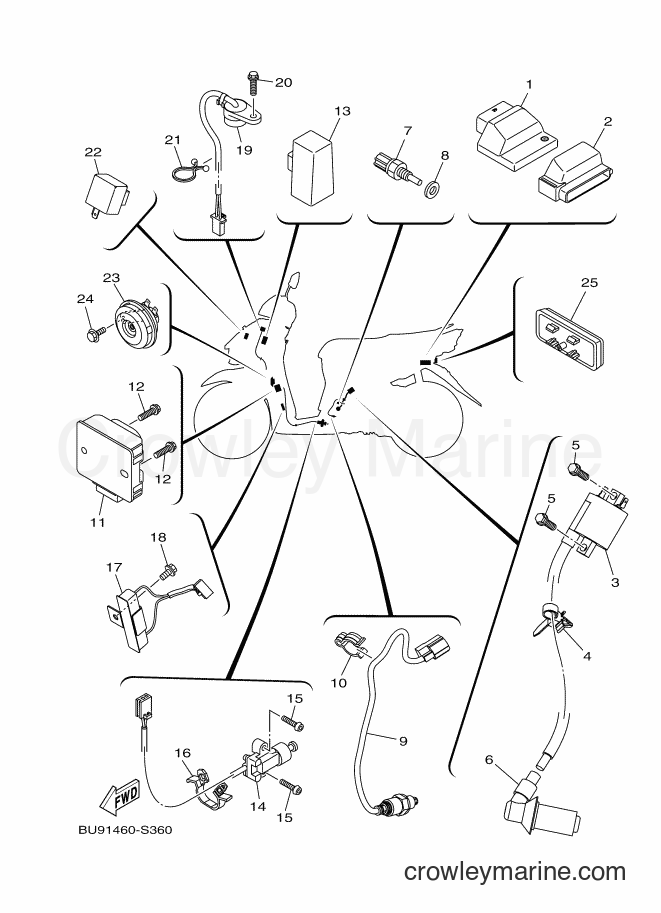

2017 Street Bike LNR125-I - LNR125-I (BU91) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LNR125-I (BU91) [010] - ELECTRICAL 2
Change View:
ENGINE CONTROL UNIT ASSY
1
Yamaha Motors
ENGINE CONTROL UNIT ASSYBU9-H591A-00
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
BAND
2
Yamaha Motors
BANDBN1-H5546-00
Required: 1
BAND
Price unavailable
IGNITION COIL ASSY
3
Yamaha Motors
IGNITION COIL ASSY2PH-H2310-00
Required: 1
IGNITION COIL ASSY
Price unavailable
CLAMP
4
Yamaha Motors
CLAMP90464-12810
Required: 1
CLAMP
Price unavailable
-10%
Flange Bolt
5
Yamaha Motors
Flange Bolt95022-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.90
$3.51
You save $0.39
More details
PLUG CAP ASSY
6
Yamaha Motors
PLUG CAP ASSY2PH-H2370-00
Required: 1
PLUG CAP ASSY
Price unavailable
-10%
Thermostat Unit
7
Yamaha Motors
Thermostat Unit52B-H3591-00-00
Required: 1
THERMO UNIT
Supersedes: 54P-H3591-00-00
Cross Ship
Leaves in 2-5 days
$37.99
$34.19
You save $3.80
More details
GASKET
8
Yamaha Motors
GASKET90430-10806
Required: 1
GASKET
Price unavailable
SENSOR, OXYGEN
9
Yamaha Motors
SENSOR, OXYGEN2DP-H592A-10
Required: 1
SENSOR, OXYGEN
Price unavailable
CLAMP
10
Yamaha Motors
CLAMP90464-16807
Required: 1
CLAMP
Price unavailable
RECTIFIER & REGULATOR ASSY
11
Yamaha Motors
RECTIFIER & REGULATOR ASSY2PV-H1960-00
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
-10%
Flange Bolt
12
Yamaha Motors
Flange Bolt95022-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.90
$1.71
You save $0.19
More details
STARTER RELAY ASSY
13
Yamaha Motors
STARTER RELAY ASSY5TP-H1940-00
Required: 1
STARTER RELAY ASSY
Price unavailable
SWITCH, SIDE STAND
14
Yamaha Motors
SWITCH, SIDE STAND1LB-H2566-01
Required: 1
SWITCH, SIDE STAND
Price unavailable
-10%
Button head bolt
15
Yamaha Motors
Button head bolt92012-05016-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.54
You save $0.95
More details
-10%
Clamp
16
Yamaha Motors
Clamp90464-07805-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$2.25
$2.02
You save $0.23
More details
RESISTOR ASSY
17
Yamaha Motors
RESISTOR ASSY2SX-H5370-00
Required: 1
RESISTOR ASSY
Price unavailable
-10%
Flange Bolt
18
Yamaha Motors
Flange Bolt95022-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
BUZZER
19
Yamaha Motors
BUZZER1YC-H3383-00
Required: 1
BUZZER
Price unavailable
CLAMP
21
Yamaha Motors
CLAMP90464-20822
Required: 1
CLAMP
Price unavailable
FLASHER RELAY ASSY
22
Yamaha Motors
FLASHER RELAY ASSY5D9-H3350-00
Required: 1
FLASHER RELAY ASSY
Price unavailable
HORN
23
Yamaha Motors
HORN2PH-H3371-00
Required: 1
HORN
Price unavailable
-10%
DEEP FLANGE BOLT
24
Yamaha Motors
DEEP FLANGE BOLT95D02-06010-00
Required: 1
BOLT, FLANGE DEEP RECESS
Cross Ship
Leaves in 2-5 days
$0.45
$0.40
You save $0.04
More details
REAR REFLECTOR ASSY
25
Yamaha Motors
REAR REFLECTOR ASSY54P-H5130-00
Required: 1
REAR REFLECTOR ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
