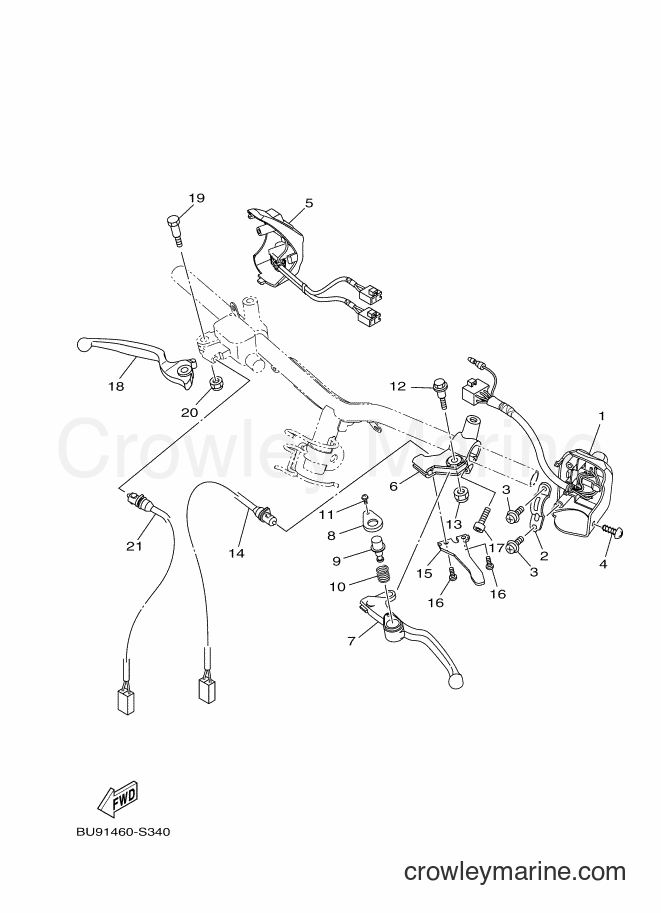

2017 Street Bike LNR125-I - LNR125-I (BU91) [010] HANDLE SWITCH & LEVER diagram
![Yamaha Motors LNR125-I (BU91) [010] - HANDLE SWITCH & LEVER](https://cdn.crowleymarine.com/yamaha/nGpEPKkS.png)
1
Yamaha Motors
SWITCH, HANDLE 32SX-H3973-00
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Yamaha Motors
BRACKET 15TL-H3955-20
Required: 1
BRACKET 1
Price unavailable
3
Yamaha Motors
SCREW, PAN HEAD WITH WASHER97602-05216
Required: 2
SCREW, PAN HEAD WITH WASHER
Price unavailable
-20%
4
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.48
You save $0.37
5
Yamaha Motors
SWITCH, HANDLE 2BN1-H3975-10
Required: 1
SWITCH, HANDLE 2
Price unavailable
6
Yamaha Motors
HOLDER, LEVER 11LB-H2911-20
Required: 1
HOLDER, LEVER 1
Price unavailable
7
Yamaha Motors
LEVER 11LB-H3912-00
Required: 1
LEVER 1
Price unavailable
8
Yamaha Motors
COVER1LB-H3935-00
Required: 1
COVER
Price unavailable
9
Yamaha Motors
PIN, LOCK 11LB-H3967-00
Required: 1
PIN, LOCK 1
Price unavailable
10
Yamaha Motors
SPRING40D-H3962-00
Required: 1
SPRING
Price unavailable
11
Yamaha Motors
SCREW, LEVER FITTING40D-H396X-00
Required: 1
SCREW, LEVER FITTING
Price unavailable
-10%
$8.54
You save $0.95
13
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, S/L
Supersedes: 95602-06100-00
$3.60
14
Yamaha Motors
FRONT STOP SWITCH ASSY1LB-H3980-00
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
15
Yamaha Motors
DAMPER, STOPPER1LB-H2556-00
Required: 1
DAMPER, STOPPER
Price unavailable
-50%
16
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98502-05010-00
In stock
Only 4 remaining
$2.30
You save $2.30
-10%
No longer availableSearch Nationwide Inventory
$1.89
You save $0.21
18
Yamaha Motors
LEVER 22SX-H3922-00
Required: 1
LEVER 2
Price unavailable
-10%
$2.30
You save $0.25
20
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, S/L
Supersedes: 95602-06100-00
$3.60
21
Yamaha Motors
FRONT STOP SWITCH ASSY54P-H3980-00
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
