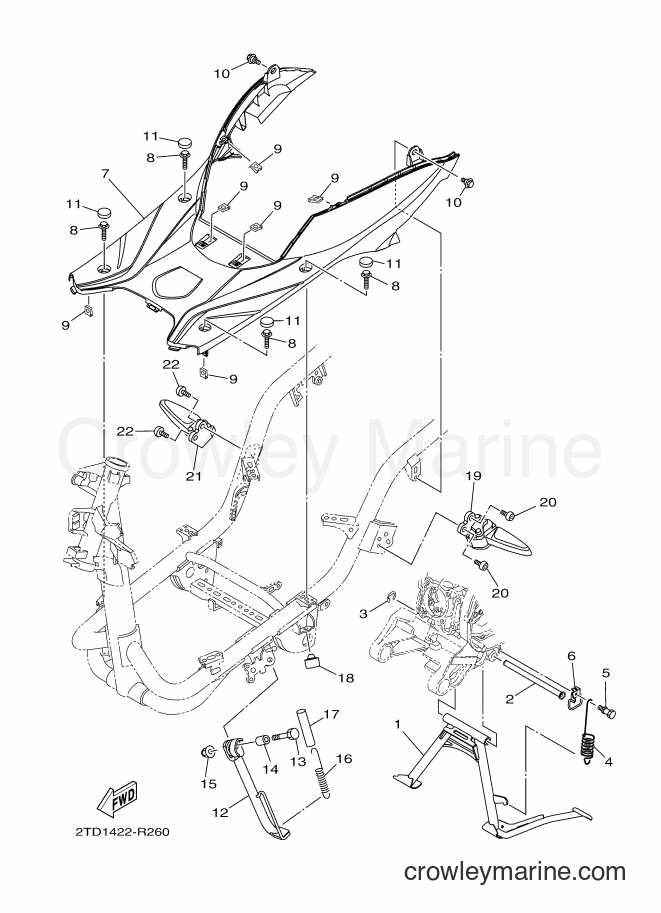

2017 Street Bike LTS125-F - LTS125-F (2TD4) [010] STAND & FOOTREST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LTS125-F (2TD4) [010] - STAND & FOOTREST
Change View:
STAND, MAIN
1
Yamaha Motors
STAND, MAIN2TD-F7111-00
Required: 1
STAND, MAIN
Price unavailable
SHAFT, MAIN STAND
2
Yamaha Motors
SHAFT, MAIN STAND2BM-F7112-00
Required: 1
SHAFT, MAIN STAND
Price unavailable
-10%
Circle Clip
3
Yamaha Motors
Circle Clip99080-09600-00
Required: 1
CIRCLIP
Supersedes: 99002-09600-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
SPRING, TENSION
4
Yamaha Motors
SPRING, TENSION90506-32812
Required: 1
SPRING, TENSION
Price unavailable
HOOK
5
Yamaha Motors
HOOK5WP-F7254-00
Required: 1
HOOK
Price unavailable
GUIDE, WIRE
6
Yamaha Motors
GUIDE, WIRE2BM-F7267-00
Required: 1
GUIDE, WIRE
Price unavailable
BOARD, FOOTREST
7
Yamaha Motors
BOARD, FOOTREST2TD-F7481-00
Required: 1
BOARD, FOOTREST
Price unavailable
CAP 1
11
Yamaha Motors
CAP 11DR-F7475-10
Required: 4
CAP 1
Price unavailable
STAND, SIDE
12
Yamaha Motors
STAND, SIDE2TD-F7311-00
Required: 1
STAND, SIDE
Price unavailable
BOLT
13
Yamaha Motors
BOLT90101-08829
Required: 1
BOLT
Price unavailable
COLLAR
14
Yamaha Motors
COLLAR90387-08820
Required: 1
COLLAR
Price unavailable
-10%
Self-locking Nut
15
Yamaha Motors
Self-locking Nut95602-08200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$3.20
$2.88
You save $0.32
More details
SPRING, TENSION
16
Yamaha Motors
SPRING, TENSION90506-20829
Required: 1
SPRING, TENSION
Price unavailable
HOSE (L70)
17
Yamaha Motors
HOSE (L70)90445-21848
Required: 1
HOSE (L70)
Price unavailable
STOPPER
18
Yamaha Motors
STOPPER5WP-F7214-00
Required: 1
STOPPER
Price unavailable
FOOTREST, REAR 1
19
Yamaha Motors
FOOTREST, REAR 12TD-F7431-00
Required: 1
FOOTREST, REAR 1
Price unavailable
-10%
Button head bolt
20
Yamaha Motors
Button head bolt92012-08020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details
FOOTREST, REAR 2
21
Yamaha Motors
FOOTREST, REAR 22TD-F7441-00
Required: 1
FOOTREST, REAR 2
Price unavailable
-10%
Button head bolt
22
Yamaha Motors
Button head bolt92012-08020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.80
$2.52
You save $0.28
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
