2017 Street Bike LTV125-R - LTV125-R (BM92) [010] EXHAUST diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

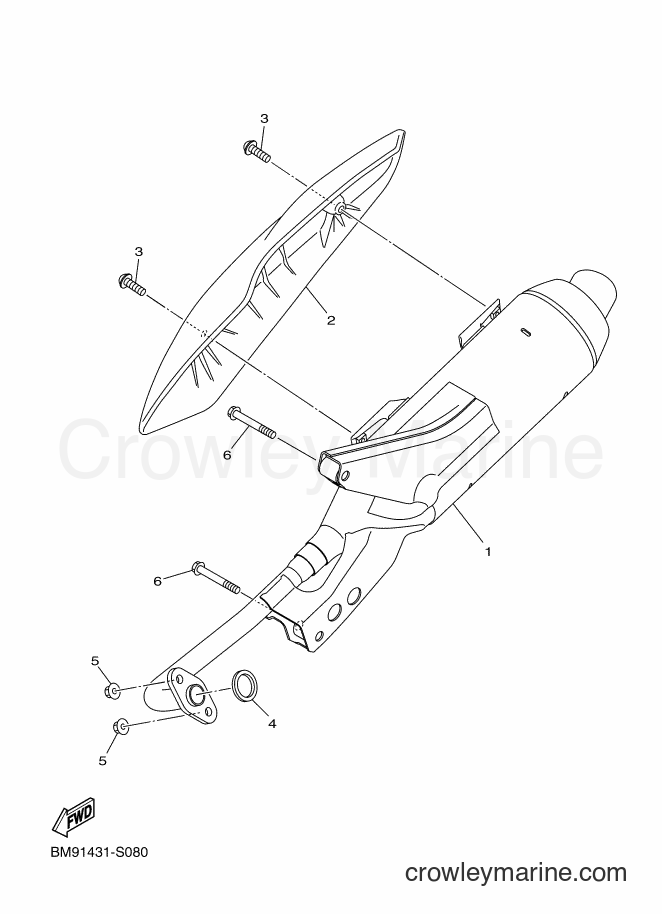

Yamaha Motors LTV125-R (BM92) [010] - EXHAUST
Change View:
MUFFLER 1
1
Yamaha Motors
MUFFLER 1BM9-E4711-00
Required: 1
MUFFLER 1
Price unavailable
PROTECTOR, MUFFLER 1
2
Yamaha Motors
PROTECTOR, MUFFLER 1BM9-E4718-00
Required: 1
PROTECTOR, MUFFLER 1
Price unavailable
BOLT,HEX. SOCKET BUTTON
3
Yamaha Motors
BOLT,HEX. SOCKET BUTTON90111-06811
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
GASKET, EXHAUST PIPE
4
Yamaha Motors
GASKET, EXHAUST PIPE2BL-E4613-00
Required: 1
GASKET, EXHAUST PIPE
Price unavailable
BOLT, FLANGE DEEP RECESS
6
Yamaha Motors
BOLT, FLANGE DEEP RECESS95D32-08055
Required: 2
BOLT, FLANGE DEEP RECESS
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
