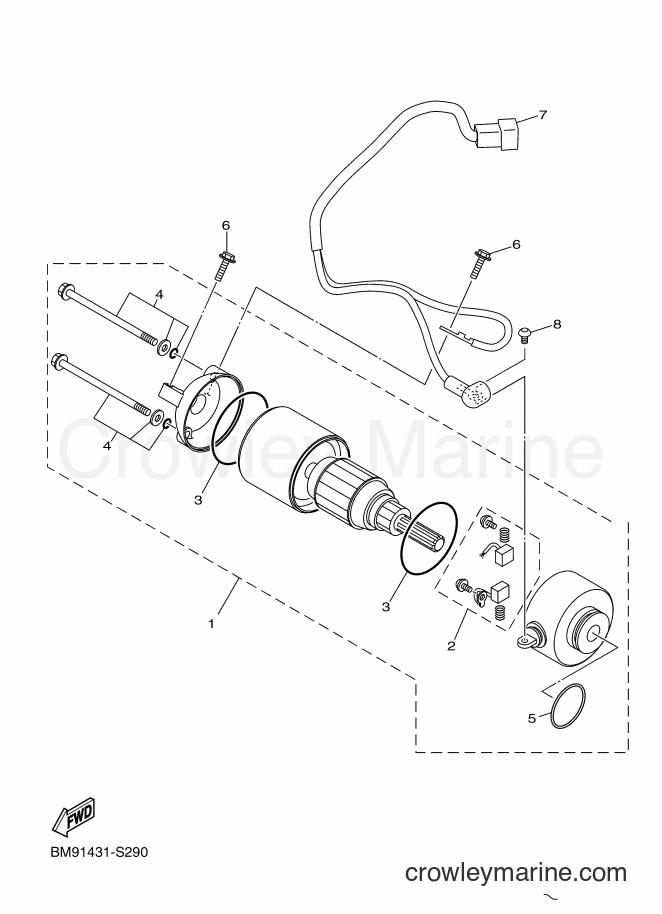

2017 Street Bike LTV125 - LTV125 (BM91) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors LTV125 (BM91) [010] - STARTING MOTOR
Change View:
MOTOR ASSY
1
Yamaha Motors
MOTOR ASSYBM9-H1890-00
Required: 1
MOTOR ASSY
Price unavailable
. BRUSH SET
2
Yamaha Motors
. BRUSH SET5VV-H1801-10
Required: 1
. BRUSH SET
Price unavailable
. O-RING
3
Yamaha Motors
. O-RING5VV-H182M-10
Required: 1
. O-RING
Price unavailable
Bolt
4
Yamaha Motors
Bolt3UH-H1828-01-00
Required: 2
. SCREW SET
Cross Ship
Leaves in 2-5 days
$0.84
More details
-10%
O-Ring
5
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING 1
Supersedes: 4FP-H182L-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
BOLT, WITH WASHER
6
Yamaha Motors
BOLT, WITH WASHER97512-06525
Required: 2
BOLT, WITH WASHER
Price unavailable
CORD COMP.
7
Yamaha Motors
CORD COMP.BM9-H183G-00
Required: 1
CORD COMP.
Price unavailable
-10%
Button head bolt
8
Yamaha Motors
Button head bolt92012-05008-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$3.05
$2.75
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
