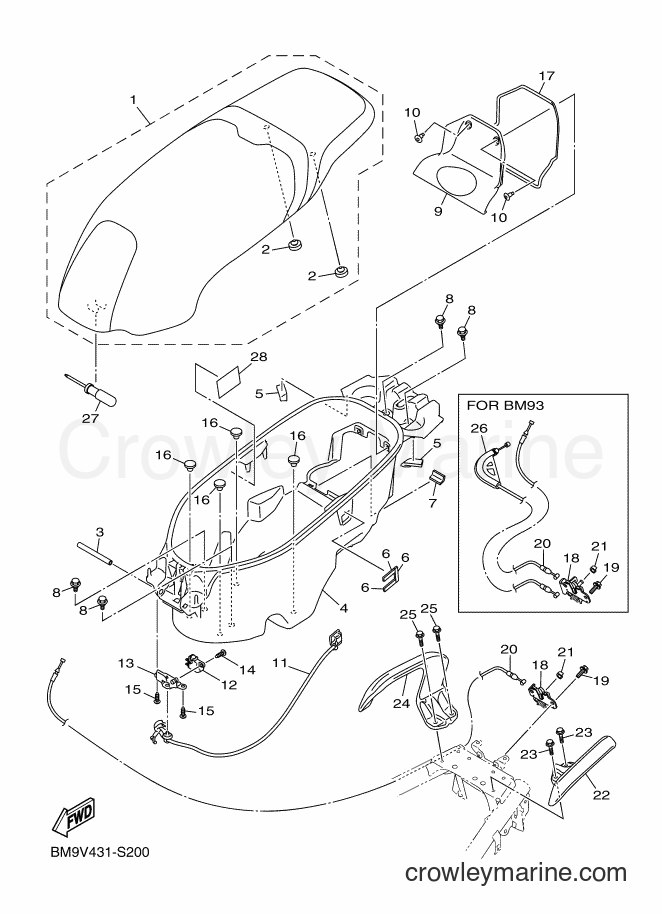

2017 Street Bike LTV125 - LTV125 (BM91) [010] SEAT diagram
![Yamaha Motors LTV125 (BM91) [010] - SEAT](https://cdn.crowleymarine.com/yamaha/mn3DLCMB.png)
1
Yamaha Motors
DOUBLE SEAT ASSYBM9-F4730-00
Required: 1
DOUBLE SEAT ASSY
Price unavailable
1
Yamaha Motors
DOUBLE SEAT ASSYBM9-F4730-20
Required: 1
DOUBLE SEAT ASSY
Price unavailable
1
Yamaha Motors
DOUBLE SEAT ASSYBM9-F4730-30
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Yamaha Motors
. PAD, SEAT33S-F4741-00
Required: 2
. PAD, SEAT
Price unavailable
3
Yamaha Motors
PIN, SEAT FITTING2BL-F4727-00
Required: 1
PIN, SEAT FITTING
Price unavailable
4
Yamaha Motors
BOX 1BM9-F473R-00
Required: 1
BOX 1
Price unavailable
5
Yamaha Motors
DAMPER, PLATE90520-06812
Required: 2
DAMPER, PLATE
Price unavailable
-10%
6
Yamaha Motors
Plate Damper90520-10834-00
Required: 3
DAMPER, PLATE
$0.59
You save $0.06
7
Yamaha Motors
DAMPER, PLATE90520-06816
Required: 1
DAMPER, PLATE
Price unavailable
-20%
In stock
Only 1 remaining
$2.48
You save $0.62
9
Yamaha Motors
COVER, BATTERYBM9-H2129-00
Required: 1
COVER, BATTERY
Price unavailable
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
11
Yamaha Motors
LIGHT, ACCESSORY2BM-H4770-00
Required: 1
LIGHT, ACCESSORY
Price unavailable
-10%
12
Yamaha Motors
FRONT STOP SWITCH2DP-H3980-01-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 2DP-H3980-00-00
No longer availableSearch Nationwide Inventory
$12.14
You save $1.35
13
Yamaha Motors
CAP, SWITCH2BL-H2552-00
Required: 1
CAP, SWITCH
Price unavailable
-10%
14
Yamaha Motors
Tapping Screw97707-40014-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-40014-00
$7.64
You save $0.85
-10%
15
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
-10%
$2.02
You save $0.23
17
Yamaha Motors
DAMPER, PLATE90520-03832
Required: 1
DAMPER, PLATE
Price unavailable
18
Yamaha Motors
SEAT LOCK ASSY5P0-F4780-01
Required: 1
SEAT LOCK ASSY
Price unavailable
18
Yamaha Motors
SEAT LOCK ASSYBF6-F4780-00
Required: 1
SEAT LOCK ASSY
Price unavailable
-10%
$5.84
You save $0.65
20
Yamaha Motors
CABLE, SEAT LOCKBM9-F478E-00
Required: 1
CABLE, SEAT LOCK
Price unavailable
21
Yamaha Motors
STOPPER5YP-F4768-00
Required: 1
STOPPER
Price unavailable
22
Yamaha Motors
ASSIST, GRIPBM9-F474A-00-P2
Required: 1
ASSIST, GRIP
Price unavailable
22
Yamaha Motors
ASSIST, GRIPBM9-F474A-00-P6
Required: 1
ASSIST, GRIP
Price unavailable
22
Yamaha Motors
ASSIST, GRIPBM9-F474A-00-P0
Required: 1
ASSIST, GRIP
Price unavailable
-10%
23
Yamaha Motors
DEEP FLANGE BOLT95D32-06020-00
Required: 2
BOLT, FLANGE DEEP RECESS
$1.22
You save $0.14
24
Yamaha Motors
ASSIST,GRIP 2BM9-F474W-00-P6
Required: 1
ASSIST,GRIP 2
Price unavailable
24
Yamaha Motors
ASSIST,GRIP 2BM9-F474W-00-P2
Required: 1
ASSIST,GRIP 2
Price unavailable
24
Yamaha Motors
ASSIST,GRIP 2BM9-F474W-00-P0
Required: 1
ASSIST,GRIP 2
Price unavailable
-10%
25
Yamaha Motors
DEEP FLANGE BOLT95D32-06020-00
Required: 2
BOLT, FLANGE DEEP RECESS
$1.22
You save $0.14
26
Yamaha Motors
WIRE, SEAT LOCK 2BM9-F479D-00
Required: 1
WIRE, SEAT LOCK 2
Price unavailable
27
Yamaha Motors
TOOL KIT2CM-F8100-00
Required: 1
TOOL KIT
Price unavailable
28
Yamaha Motors
OIL, LABEL1YC-F178B-01
Required: 1
OIL, LABEL
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
