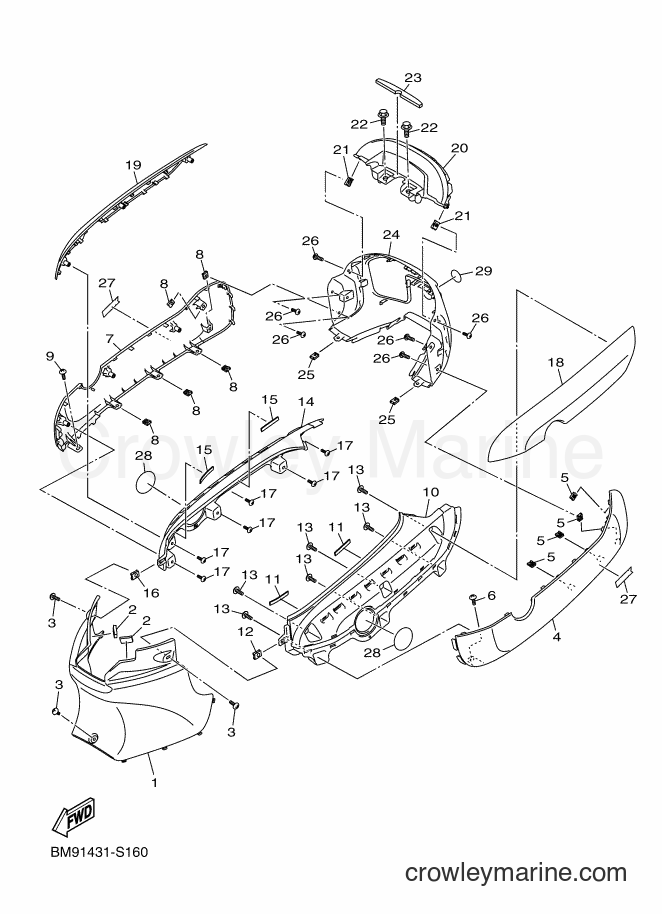

2017 Street Bike LTV125-A - LTV125-A (BM93) [010] SIDE COVER diagram
![Yamaha Motors LTV125-A (BM93) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/MU75XWq3.png)
1
Yamaha Motors
COVERBM9-F172W-10
Required: 1
COVER
Price unavailable
1
Yamaha Motors
COVERBM9-F172W-00
Required: 1
COVER
Price unavailable
2
Yamaha Motors
DAMPER, PLATE90520-07806
Required: 2
DAMPER, PLATE
Price unavailable
-10%
3
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.54
You save $0.95
4
Yamaha Motors
COVER, SIDE 1BM9-F1711-00-P6
Required: 1
COVER, SIDE 1
Price unavailable
4
Yamaha Motors
COVER, SIDE 1BM9-F1711-00-P5
Required: 1
COVER, SIDE 1
Price unavailable
4
Yamaha Motors
COVER, SIDE 1BM9-F1711-00-P0
Required: 1
COVER, SIDE 1
Price unavailable
-50%
5
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
6
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.54
You save $0.95
7
Yamaha Motors
COVER, SIDE 2BM9-F1721-00-P6
Required: 1
COVER, SIDE 2
Price unavailable
7
Yamaha Motors
COVER, SIDE 2BM9-F1721-00-P2
Required: 1
COVER, SIDE 2
Price unavailable
7
Yamaha Motors
COVER, SIDE 2BM9-F1721-00-P0
Required: 1
COVER, SIDE 2
Price unavailable
-50%
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.54
You save $0.95
10
Yamaha Motors
MOLE, SIDE COVER 3BM9-F171N-10
Required: 1
MOLE, SIDE COVER 3
Price unavailable
10
Yamaha Motors
MOLE, SIDE COVER 3BM9-F171N-00
Required: 1
MOLE, SIDE COVER 3
Price unavailable
11
Yamaha Motors
DAMPER, PLATE90520-02831
Required: 2
DAMPER, PLATE
Price unavailable
-50%
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
13
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
14
Yamaha Motors
MOLE, SIDE COVER 4BM9-F171R-10
Required: 1
MOLE, SIDE COVER 4
Price unavailable
14
Yamaha Motors
MOLE, SIDE COVER 4BM9-F171R-00
Required: 1
MOLE, SIDE COVER 4
Price unavailable
15
Yamaha Motors
DAMPER, PLATE90520-02831
Required: 2
DAMPER, PLATE
Price unavailable
-50%
16
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
17
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
18
Yamaha Motors
COVER, SIDE 3BM9-F1731-00-P2
Required: 1
COVER, SIDE 3
Price unavailable
18
Yamaha Motors
COVER, SIDE 3BM9-F1731-00-P4
Required: 1
COVER, SIDE 3
Price unavailable
18
Yamaha Motors
COVER, SIDE 3BM9-F1731-00-P0
Required: 1
COVER, SIDE 3
Price unavailable
19
Yamaha Motors
COVER, SIDE 4BM9-F1741-00-P0
Required: 1
COVER, SIDE 4
Price unavailable
19
Yamaha Motors
COVER, SIDE 4BM9-F1741-00-P4
Required: 1
COVER, SIDE 4
Price unavailable
19
Yamaha Motors
COVER, SIDE 4BM9-F1741-00-P2
Required: 1
COVER, SIDE 4
Price unavailable
20
Yamaha Motors
COVER, SIDE 5BM9-F171E-00
Required: 1
COVER, SIDE 5
Price unavailable
20
Yamaha Motors
COVER, SIDE 5BM9-F171E-10
Required: 1
COVER, SIDE 5
Price unavailable
-50%
21
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-20%
In stock
Only 1 remaining
$2.48
You save $0.62
23
Yamaha Motors
DAMPERBM9-F1746-00
Required: 1
DAMPER
Price unavailable
24
Yamaha Motors
COVER, TAILLIGHTBM9-F172X-10
Required: 1
COVER, TAILLIGHT
Price unavailable
24
Yamaha Motors
COVER, TAILLIGHTBM9-F172X-00
Required: 1
COVER, TAILLIGHT
Price unavailable
-50%
25
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
-10%
26
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
Supersedes: 97702-50014-00
$8.54
You save $0.95
27
Yamaha Motors
GRAPHIC 1BM9-F173E-00
Required: 2
GRAPHIC 1
Price unavailable
27
Yamaha Motors
GRAPHIC 1BM9-F173E-60
Required: 2
GRAPHIC 1
Price unavailable
27
Yamaha Motors
GRAPHIC 1BM9-F173E-20
Required: 2
GRAPHIC 1
Price unavailable
28
Yamaha Motors
EMBLEMBM9-F1737-00
Required: 2
EMBLEM
Price unavailable
29
Yamaha Motors
EMBLEM5P0-F1737-00
Required: 1
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
