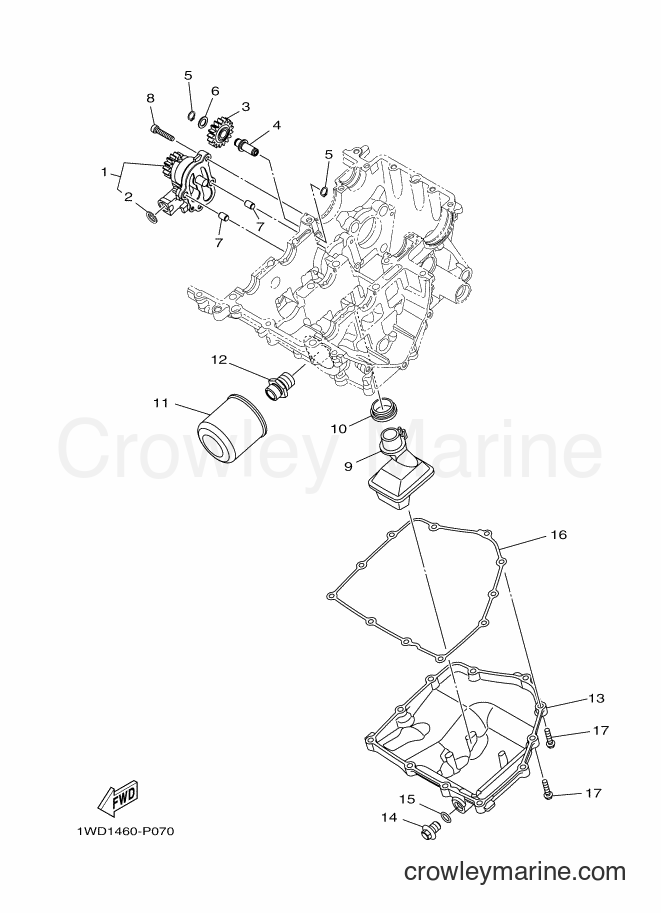

2017 Street Bike MTN250 - MTN250 (B044) [010] OIL PUMP diagram
![Yamaha Motors MTN250 (B044) [010] - OIL PUMP](https://cdn.crowleymarine.com/yamaha/T1hNw4Wo.png)
-10%
$56.69
You save $6.30
-10%
$10.34
You save $1.15
-10%
3
Yamaha Motors
Oil Pump Idle Gear1WD-E3341-00-00
Required: 1
GEAR, OIL PUMP IDLE
$21.59
You save $2.40
-10%
4
Yamaha Motors
Idle Gear Shaft1WD-E3342-00-00
Required: 1
SHAFT, IDLE GEAR
$21.59
You save $2.40
-10%
$4.94
You save $0.55
-50%
6
Yamaha Motors
Plate Washer90201-10119-00
Required: 1
WASHER, PLATE
In stock
Only 2 remaining
$0.50
You save $0.50
-50%
In stock
Only 1 remaining
$3.50
You save $3.50
-20%
In stock
Only 1 remaining
$5.19
You save $1.30
-10%
9
Yamaha Motors
Strainer Housing Assembly1WD-E3410-00-00
Required: 1
STRAINER HOUSING ASSY
$58.49
You save $6.50
-10%
10
Yamaha Motors
Oil Strainer Seal1WD-E3415-00-00
Required: 1
SEAL, OIL STRAINER
$3.02
You save $0.33
-10%
11
Yamaha Motors
ELEMENT ASSY, OIL CLEANER1WD-E3440-21-00
Required: 1
ELEMENT ASSY, OIL CLEANER
Supersedes: 1WD-E3440-00-00
$14.84
You save $1.65
-10%
$23.39
You save $2.60
-50%
13
Yamaha Motors
Strainer Cover1WD-E3417-00-00
Required: 1
COVER, STRAINER
In stock
Only 1 remaining
$21.50
You save $21.50
-10%
14
Yamaha Motors
Straight Screw Plug90340-12808-00
Required: 1
PLUG, STRAIGHT SCREW
$0.99
You save $0.11
-10%
15
Yamaha Motors
Gasket812-11198-00-00
Required: 1
GASKET
Supersedes: 4YS-E1198-00-00
$6.74
You save $0.75
-10%
16
Yamaha Motors
Strainer Cover Gasket1WD-E3414-00-00
Required: 1
GASKET, STRAINER COVER
$9.44
You save $1.05
-10%
$1.71
You save $0.19
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
