2017 Street Bike MTT690P-AB - MTT690P-AB (B7K1) [030] COWLING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

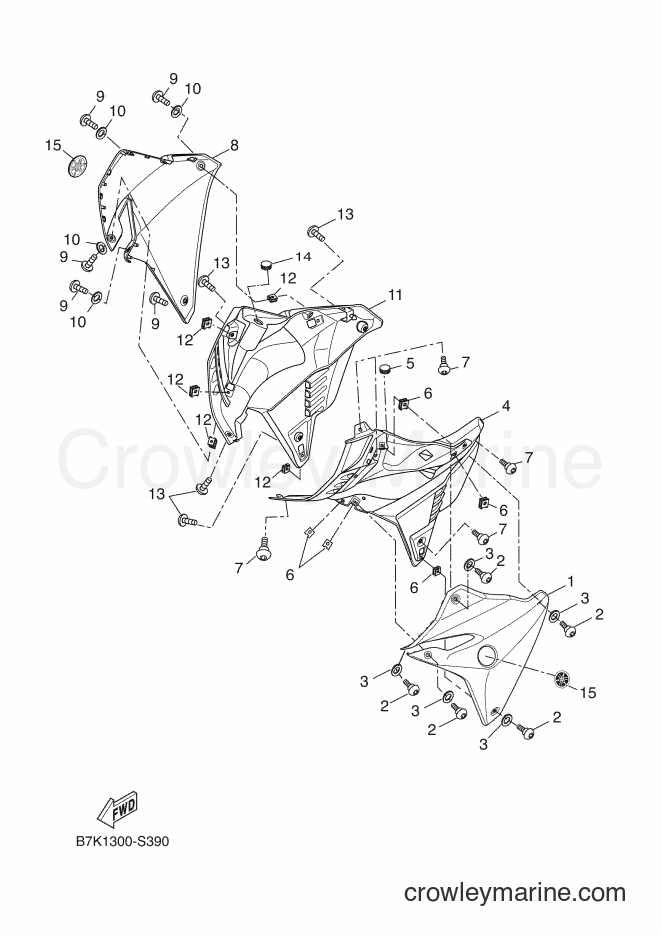

Yamaha Motors MTT690P-AB (B7K1) [030] - COWLING 2
Change View:
PANEL 1
1
Yamaha Motors
PANEL 1BC6-F835U-00-P4
Required: 1
PANEL 1
Price unavailable
-10%
BOLT
2
Yamaha Motors
BOLT90111-05011-00
Required: 5
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
WASHER, PLATE
3
Yamaha Motors
WASHER, PLATE90202-08X02
Required: 5
WASHER, PLATE
Price unavailable
COVER, HINGE 1
4
Yamaha Motors
COVER, HINGE 1BC6-F846K-00
Required: 1
COVER, HINGE 1
Price unavailable
-10%
Grommet
5
Yamaha Motors
Grommet90480-22M72-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$6.99
$6.29
You save $0.70
More details
-10%
NUT SPRING
6
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 5
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
BOLT
7
Yamaha Motors
BOLT90111-05011-00
Required: 5
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
PANEL 2
8
Yamaha Motors
PANEL 2BC6-F835V-00-P3
Required: 1
PANEL 2
Price unavailable
-10%
BOLT
9
Yamaha Motors
BOLT90111-05011-00
Required: 5
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
WASHER, PLATE
10
Yamaha Motors
WASHER, PLATE90202-08X02
Required: 5
WASHER, PLATE
Price unavailable
COVER, HINGE 2
11
Yamaha Motors
COVER, HINGE 2BC6-F846L-00
Required: 1
COVER, HINGE 2
Price unavailable
-10%
NUT SPRING
12
Yamaha Motors
NUT SPRING90183-05X04-00
Required: 5
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$7.49
$6.74
You save $0.75
More details
-10%
BOLT
13
Yamaha Motors
BOLT90111-05011-00
Required: 5
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$6.49
$5.84
You save $0.65
More details
-10%
Plug
14
Yamaha Motors
Plug90338-28239-00
Required: 1
PLUG
Cross Ship
Leaves in 2-5 days
$8.49
$7.64
You save $0.85
More details
TUNING FORK MARK
15
Yamaha Motors
TUNING FORK MARK50C-F836B-00
Required: 2
TUNING FORK MARK
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
